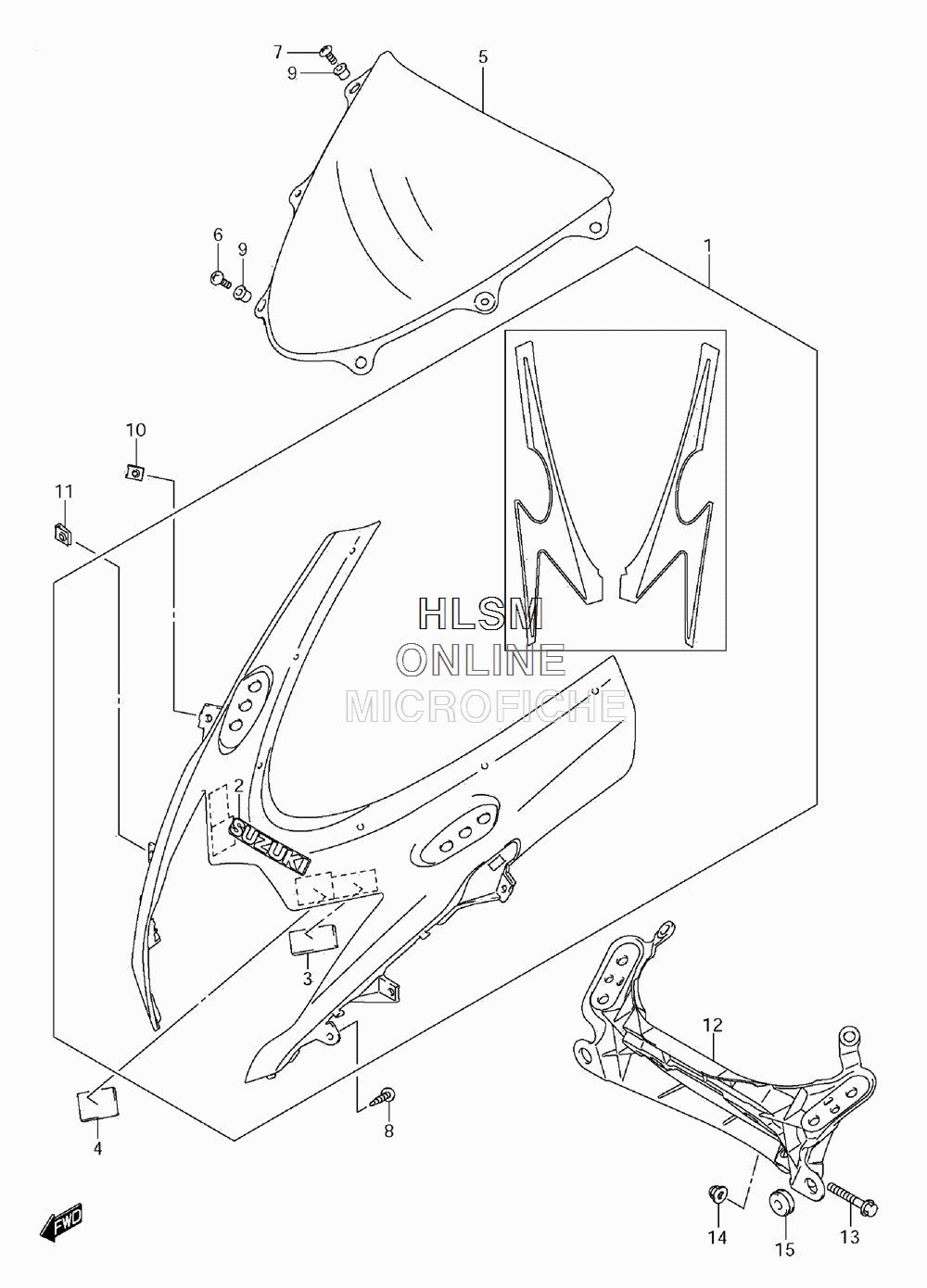

COWLING BODY для Suzuki GSX-R 750 L1 - 2011 года выпуска
-
№АртикулНазвание
-
194410-14J10-YSF BODY, COWLING (INC 2-3) (WHITE) (YSF FOR GLR)BODY, COWLING (INC 2-3) (WHITE) (YSF FOR GLR)
-
194410-14J10-YVB BODY, COWLING (INC 2-3) (BLACK) (YVB FOR 6UX)BODY, COWLING (INC 2-3) (BLACK) (YVB FOR 6UX)
-
268641-19F00-YBD EMBLEM, ''SUZUKI'' (WHITE) (YBD FOR YSF)EMBLEM, ''SUZUKI'' (WHITE) (YBD FOR YSF)
-
268641-19F00-17U EMBLEM, ''SUZUKI'' (GRAY) (17U FOR YVB)EMBLEM, ''SUZUKI'' (GRAY) (17U FOR YVB)
-
392146-14J00 CUSHIONCUSHION
-
444572-02F01 FASTENERFASTENER
-
594611-14J00 WINDSCREENWINDSCREEN
-
609125-05133 SCREW (5X18)SCREW (5X18)
-
709125-05134 SCREW (5X15)SCREW (5X15)
-
803541-0516A SCREWSCREW
-
909159-05019 NUTNUT
-
1009148-05052 NUTNUT
-
1109148-05047 NUTNUT
-
1294511-14J00 BRACE, COWLINGBRACE, COWLING
-
1309103-08207 BOLT (8X45)BOLT (8X45)
-
1408313-2008A NUTNUT
-
1509320-08047 CUSHIONCUSHION
