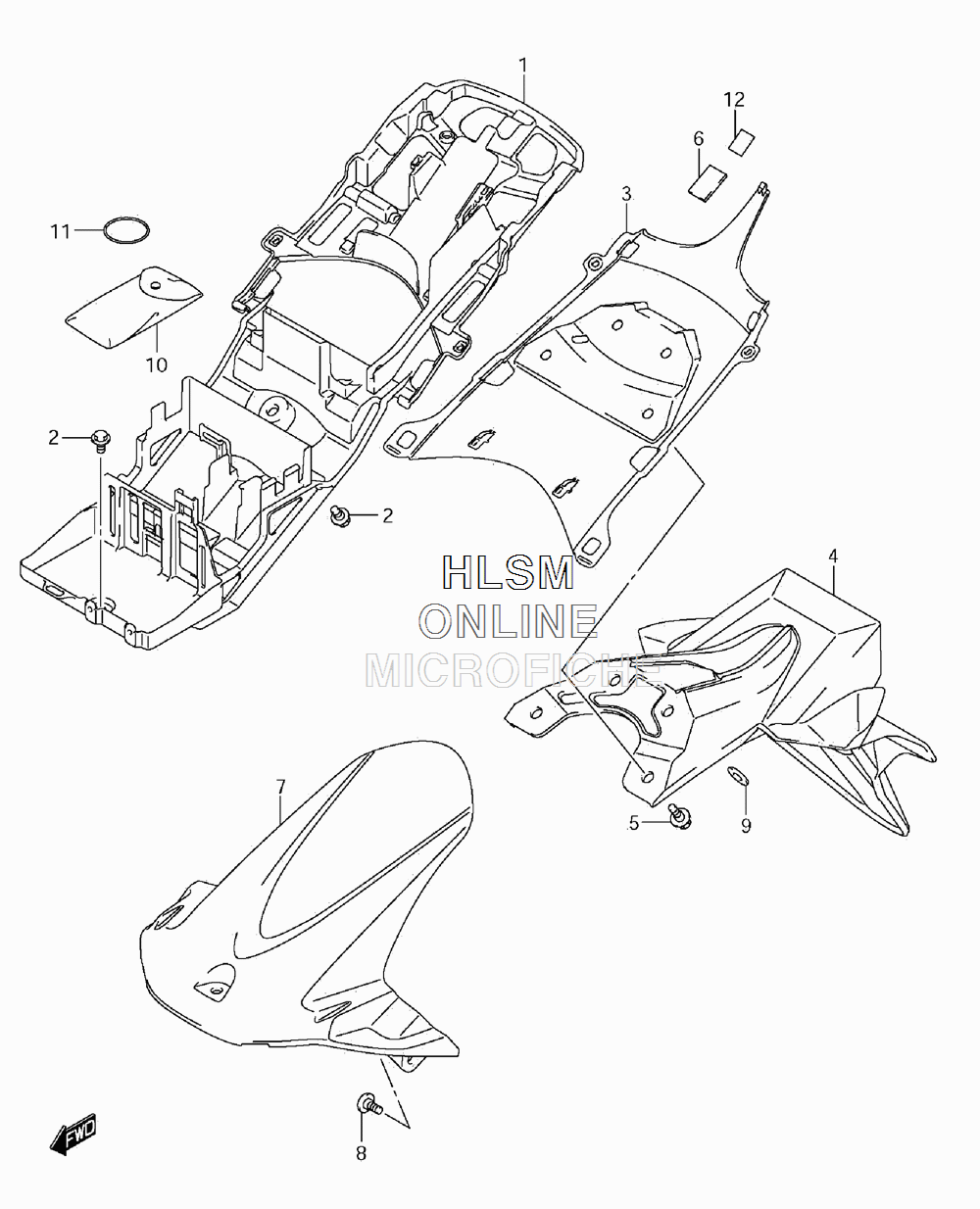

FENDER - REAR для Suzuki GSX-R 750 L1 - 2011 года выпуска
-
№АртикулНазвание
-
163111-14J00 FENDER, REAR FRONTFENDER, REAR FRONT
-
209111-06107 BOLTBOLT
-
363112-14J00 COVER, FENDER FRONTCOVER, FENDER FRONT
-
463113-14J00 FENDER, REAR REARFENDER, REAR REAR
-
509111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
644556-33H00 CUSHIONCUSHION
-
763114-14J01 FENDER, REAR LOWERFENDER, REAR LOWER
-
809139-06158 SCREW (6X16)SCREW (6X16)
-
909160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1009800-21056 TOOL ASSYTOOL ASSY
-
1109280-57003 BANDBAND
-
1244572-37H00 FASTENER, REAR FENDERFASTENER, REAR FENDER
