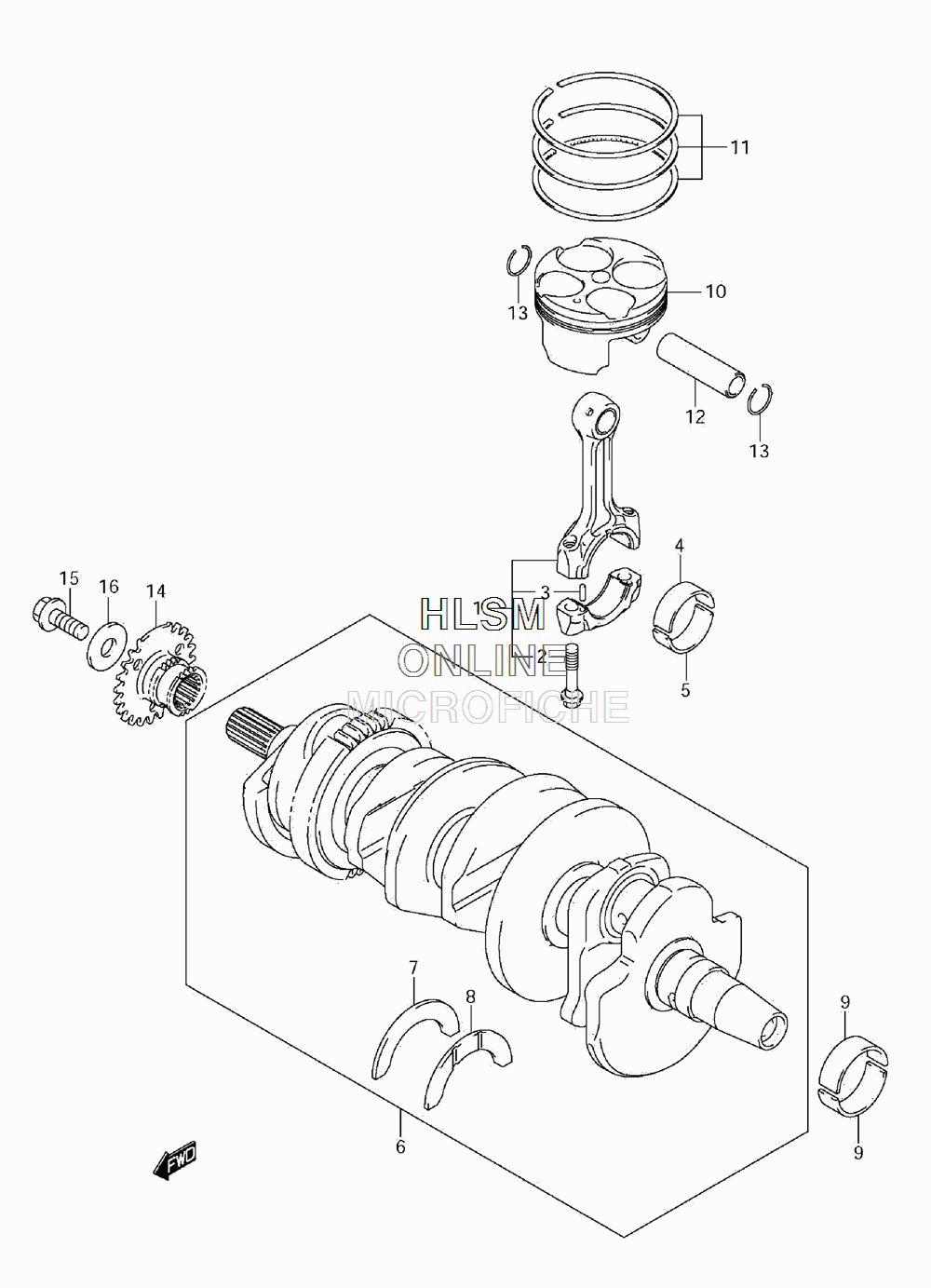

CRANKSHAFT W/ PISTON для Suzuki GSX-R 750 L1 - 2011 года выпуска
-
№АртикулНазвание
-
112160-15J00 ROD ASSY, CONNECTING (INC 2-3)ROD ASSY, CONNECTING (INC 2-3)
-
212163-35F00 BOLTBOLT
-
304221-04089 PINPIN
-
412164-15J00-0A4 BEARING, CRANK PIN (GREEN) (UPPER)BEARING, CRANK PIN (GREEN) (UPPER)
-
412164-15J00-0B4 BEARING, CRANK PIN (BLACK) (UPPER)BEARING, CRANK PIN (BLACK) (UPPER)
-
412164-15J00-0C4 BEARING, CRANK PIN (BROWN) (UPPER)BEARING, CRANK PIN (BROWN) (UPPER)
-
412164-15J00-0D0 BEARING, CRANK PIN (YELLOW) (UPPER)BEARING, CRANK PIN (YELLOW) (UPPER)
-
512164-30G00-0A0 BEARING, CRANK PIN (GREEN) (LOWER)BEARING, CRANK PIN (GREEN) (LOWER)
-
512164-30G00-0B0 BEARING, CRANK PIN (BLACK) (LOWER)BEARING, CRANK PIN (BLACK) (LOWER)
-
512164-30G00-0C0 BEARING, CRANK PIN (BROWN) (LOWER)BEARING, CRANK PIN (BROWN) (LOWER)
-
512164-30G00-0D0 BEARING, CRANK PIN (YELLOW) (LOWER)BEARING, CRANK PIN (YELLOW) (LOWER)
-
612000-02840 CRANKSHAFT SET (INCL. 7 - 8)CRANKSHAFT SET (INCL. 7 - 8)
-
712228-17E00-0D0 BEARING, THRUST (RIGHT) (GREEN)BEARING, THRUST (RIGHT) (GREEN)
-
812228-17E00-0A0 BEARING, THRUST (LEFT) (RED)BEARING, THRUST (LEFT) (RED)
-
812228-17E00-0B0 BEARING, THRUST (LEFT) (BLACK)BEARING, THRUST (LEFT) (BLACK)
-
812228-17E00-0C0 BEARING, THRUST (LEFT) (BLUE)BEARING, THRUST (LEFT) (BLUE)
-
812228-17E00-0D0 BEARING, THRUST (LEFT) (GREEN)BEARING, THRUST (LEFT) (GREEN)
-
812228-17E00-0E0 BEARING, THRUST (LEFT) (YELLOW)BEARING, THRUST (LEFT) (YELLOW)
-
812228-17E00-0F0 BEARING, THRUST (LEFT) (WHITE)BEARING, THRUST (LEFT) (WHITE)
-
912229-02H00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
912229-02H00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
912229-02H00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
912229-02H00-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
912229-02H00-0E0 BEARING, CRANKSHAFT (BLUE)BEARING, CRANKSHAFT (BLUE)
-
1012111-02H10-0F0 PISTONPISTON
-
1112140-02H00 RING SET, PISTONRING SET, PISTON
-
1212151-41G00 PIN, PISTONPIN, PISTON
-
1309381-15001 CIRCLIPCIRCLIP
-
1412731-01H00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1509103-10189 BOLT (10X23)BOLT (10X23)
-
1608211-10285 WASHERWASHER
