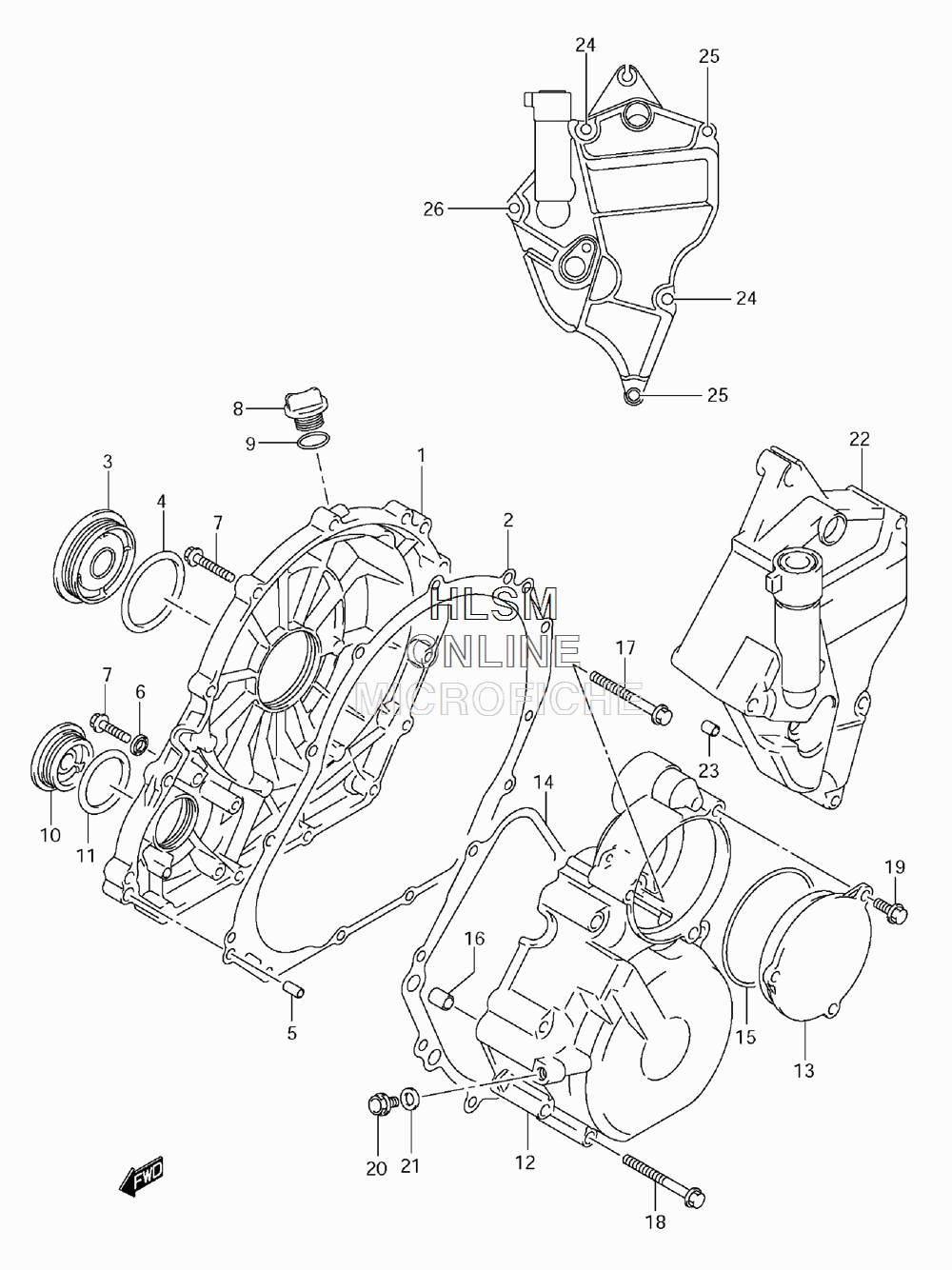

CRANKCASE COVER для Suzuki GSX-R 750 L1 - 2011 года выпуска
-
№АртикулНазвание
-
111341-37H00 COVER, CLUTCHCOVER, CLUTCH
-
211482-01H00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
311342-41G10 CAP, CLUTCH RELEASE ADJUSTCAP, CLUTCH RELEASE ADJUST
-
409280-54001 O-RING (D:2.4,ID:52.6)O-RING (D:2.4,ID:52.6)
-
504211-09189 PINPIN
-
609168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
709103-06213 BOLT (6X30)BOLT (6X30)
-
811971-25D00 PLUG, ENGINE OIL FILTERPLUG, ENGINE OIL FILTER
-
909280-17003 O-RING (D:3.1,ID:16.8)O-RING (D:3.1,ID:16.8)
-
1009259-36021 PLUGPLUG
-
1109280-33004 O-RING (D:3.1,ID:32.7)O-RING (D:3.1,ID:32.7)
-
1211351-01H02 COVER, GENERATORCOVER, GENERATOR
-
1311352-01H00 CAP, STARTER IDLE GEARCAP, STARTER IDLE GEAR
-
1411483-01H00 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1509280-71008 O-RING (D:2.6,ID:67.1)O-RING (D:2.6,ID:67.1)
-
1604211-09149 PINPIN
-
1709103-06212 BOLT (6X25)BOLT (6X25)
-
1809103-06238 BOLT (6X50)BOLT (6X50)
-
1909103-06274 BOLT (6X16)BOLT (6X16)
-
2009103-06222 BOLT (6X12)BOLT (6X12)
-
2109168-06018 GASKET (6.2X13X1.2)GASKET (6.2X13X1.2)
-
2211361-01H00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2304211-09129 PINPIN
-
2409103-06224 BOLT (6X45)BOLT (6X45)
-
2509103-06239 BOLT (6X65)BOLT (6X65)
-
2609103-06257 BOLT (6X75)BOLT (6X75)
