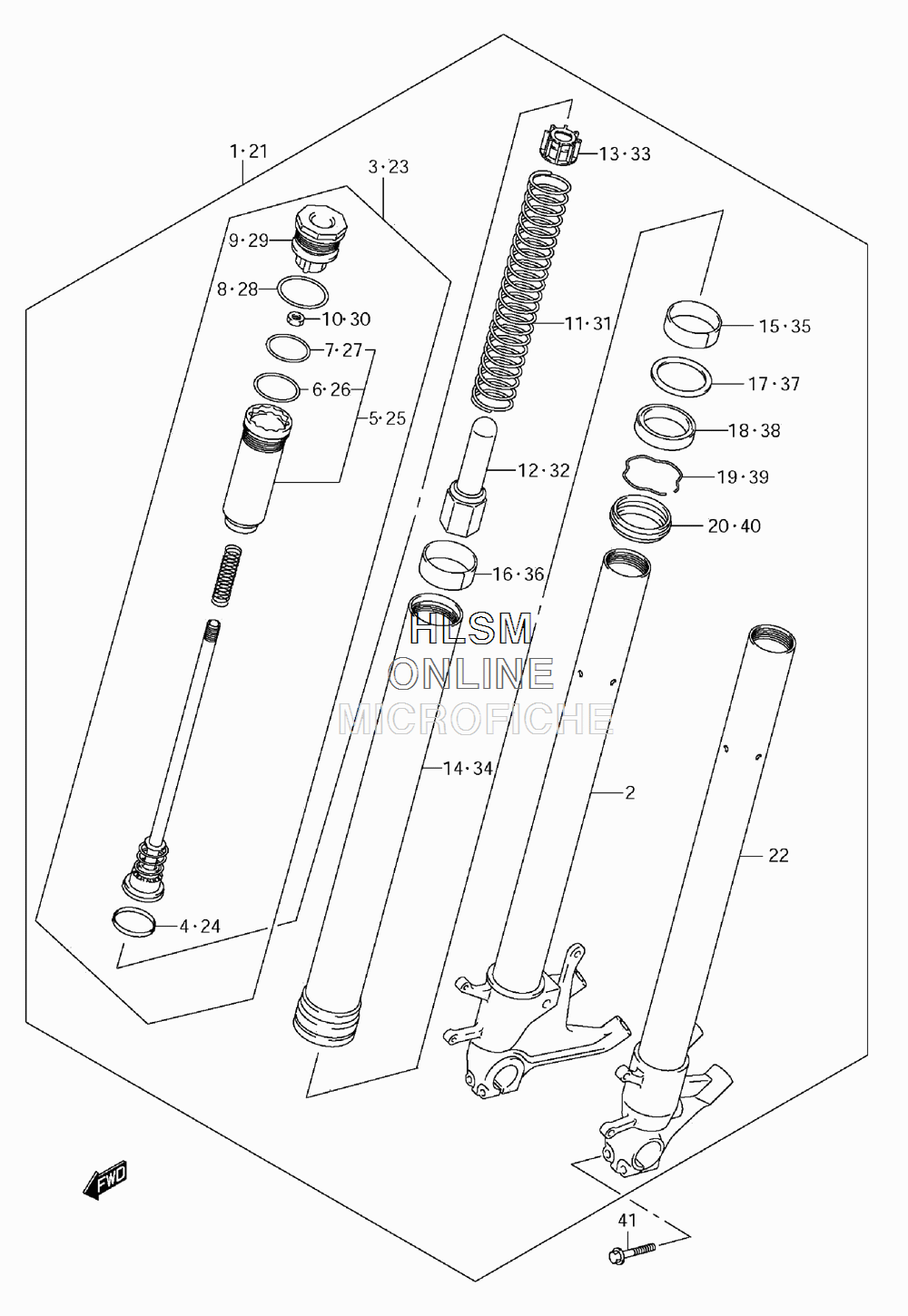

SUSPENSION - FRONT FORK для Suzuki GSX-R 750 L1 - 2011 года выпуска
-
№АртикулНазвание
-
151103-15J00 DAMPER ASSY, FRONT FORK (RIGHT) (INCL. 2 - 20)DAMPER ASSY, FRONT FORK (RIGHT) (INCL. 2 - 20)
-
251110-14J00 TUBE, INNER (RIGHT)TUBE, INNER (RIGHT)
-
352110-15J00 ROD, PISTONROD, PISTON
-
451118-14J00 RING, PISTONRING, PISTON
-
551174-14J00 CASE, ROD GUIDE (INC 6-7)CASE, ROD GUIDE (INC 6-7)
-
651118-14J10 RING, PISTONRING, PISTON
-
751187-14J00 O-RINGO-RING
-
851187-01H00 O-RINGO-RING
-
951189-14J00 BOLTBOLT
-
1051827-29G00 NUTNUT
-
1151171-15J00 SPRINGSPRING
-
1251172-14J00 COLLAR, SPRINGCOLLAR, SPRING
-
1351175-14J00 COLLAR, SPRINGCOLLAR, SPRING
-
1451131-15J00 TUBE, OUTERTUBE, OUTER
-
1551152-01H10 BUSH, GUIDEBUSH, GUIDE
-
1651152-14J00 BUSH, SLIDEBUSH, SLIDE
-
1751168-38B00 SPACER, SEALSPACER, SEAL
-
1851153-01H10 SEAL, OILSEAL, OIL
-
1951556-38B00 RING, STOPPERRING, STOPPER
-
2051173-01H00 SEAL, DUSTSEAL, DUST
-
2151104-15J00 DAMPER ASSY, FRONT FORK (LEFT) (INCL. 22 - 40)DAMPER ASSY, FRONT FORK (LEFT) (INCL. 22 - 40)
-
2251120-14J00 TUBE, INNER (LEFT)TUBE, INNER (LEFT)
-
2352110-15J00 ROD, PISTONROD, PISTON
-
2451118-14J00 RING, PISTONRING, PISTON
-
2551174-14J00 CASE, ROD GUIDE (INC 26-27)CASE, ROD GUIDE (INC 26-27)
-
2651118-14J00 RING, PISTONRING, PISTON
-
2751187-14J00 O-RINGO-RING
-
2851187-01H00 O-RINGO-RING
-
2951189-14J00 BOLTBOLT
-
3051827-29G00 NUTNUT
-
3151171-15J00 SPRINGSPRING
-
3251172-14J00 COLLAR, SPRINGCOLLAR, SPRING
-
3351175-14J00 COLLAR, SPRINGCOLLAR, SPRING
-
3451131-15J00 TUBE, OUTERTUBE, OUTER
-
3551152-01H10 BUSH, GUIDEBUSH, GUIDE
-
3651152-14J00 BUSH, SLIDEBUSH, SLIDE
-
3751168-38B00 SPACER, SEALSPACER, SEAL
-
3851153-01H10 SEAL, OILSEAL, OIL
-
3951556-38B00 RING, STOPPERRING, STOPPER
-
4051173-01H00 SEAL, DUSTSEAL, DUST
-
4151321-36F00 BOLTBOLT
