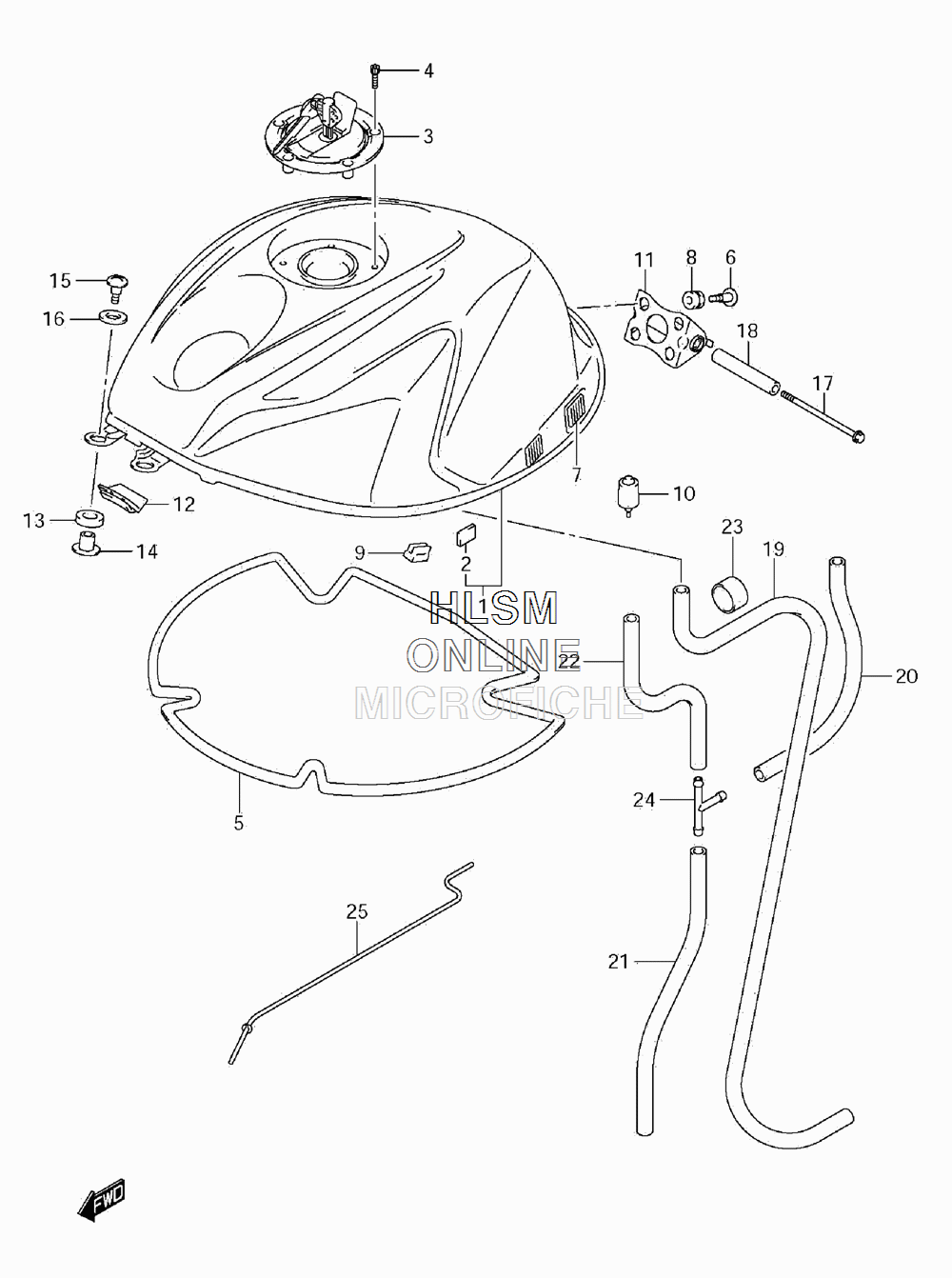

FUEL TANK для Suzuki GSX-R 750 L1 - 2011 года выпуска
-
№АртикулНазвание
-
144100-14J00-YSF TANK ASSY, FUEL (BLUE) (YSF FOR GLR)TANK ASSY, FUEL (BLUE) (YSF FOR GLR)
-
144100-14J00-YVB TANK ASSY, FUEL (BLACK) (YVB FOR 6UX)TANK ASSY, FUEL (BLACK) (YVB FOR 6UX)
-
244572-14J00 FASTENER, COVERFASTENER, COVER
-
344200-16850 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
409106-05017 BOLT (5X20)BOLT (5X20)
-
544191-14J00 SHIELD, FUEL TANK HEATSHIELD, FUEL TANK HEAT
-
644543-14J00 SCREW, FUEL TANK REAR BRACKETSCREW, FUEL TANK REAR BRACKET
-
744572-13G00 FASTENER, COVERFASTENER, COVER
-
809320-08071 CUSHIONCUSHION
-
944276-21H00 CUSHION, TANK COVERCUSHION, TANK COVER
-
1044542-41G00 CUSHION, REARCUSHION, REAR
-
1144530-41G00 BRACKET, REARBRACKET, REAR
-
1244546-44H00 RUBBER, TANK FRONTRUBBER, TANK FRONT
-
1344511-16G00 CUSHIONCUSHION
-
1444512-16G00 SPACER, TANK FRONTSPACER, TANK FRONT
-
1509139-06192 SCREWSCREW
-
1609160-06054 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1709106-06119 BOLT (6X110)BOLT (6X110)
-
1844561-18G00 SPACER, TANK REARSPACER, TANK REAR
-
1944423-14J00 HOSE, DRAINHOSE, DRAIN
-
2044424-14J00 HOSE, BREATHER NO.1HOSE, BREATHER NO.1
-
2144424-14J10 HOSE, BREATHER NO.2HOSE, BREATHER NO.2
-
2244425-09E00 HOSE, BREATHER NO.3HOSE, BREATHER NO.3
-
2309352-12163-600 HOSE (12X16X600)HOSE (12X16X600)
-
2409367-06007 3 WAY3 WAY
-
2544574-35F00 STAY, FUEL TANKSTAY, FUEL TANK
