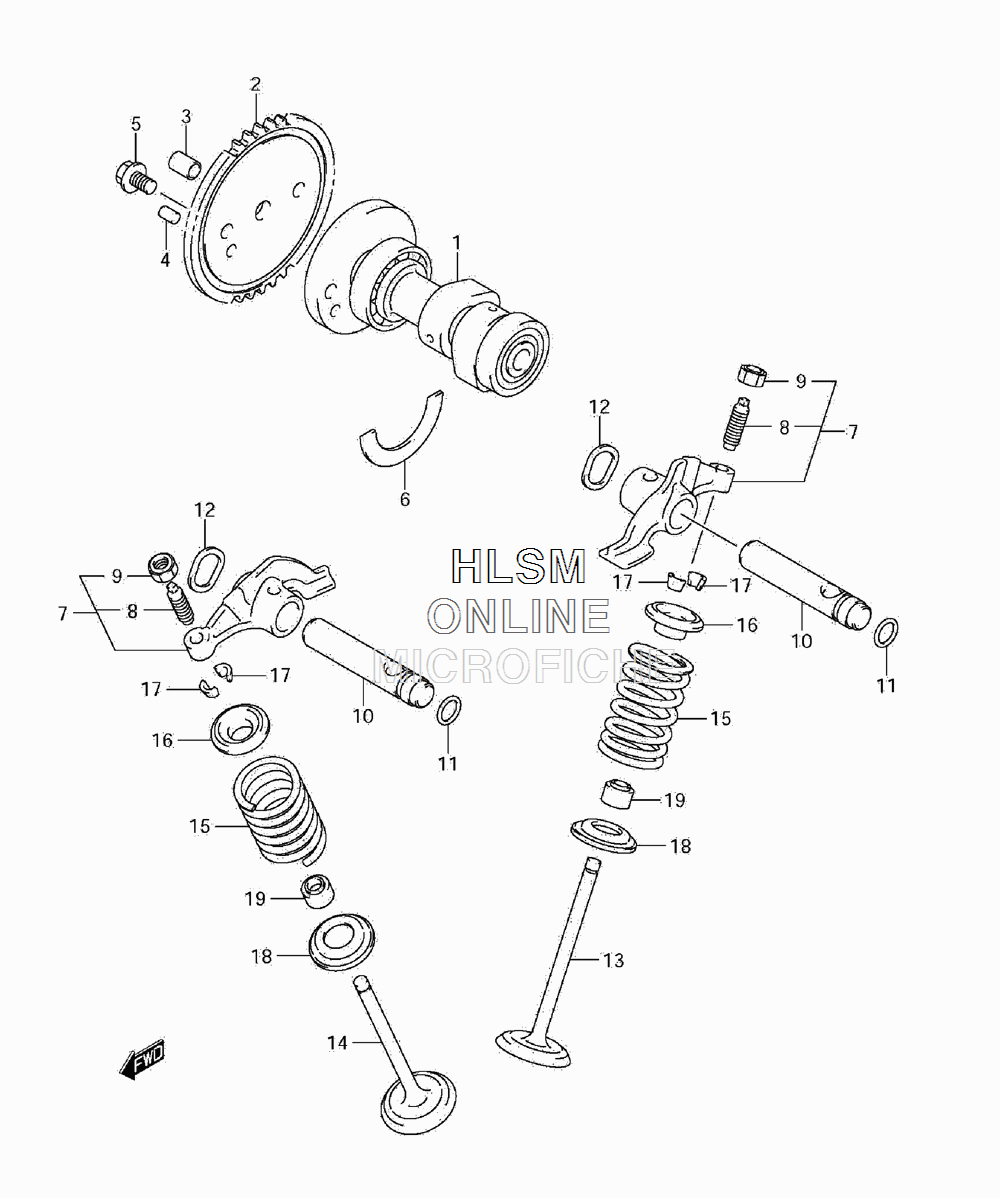

CAMSHAFT W/ VALVES для Suzuki TU-250 L1 - 2011 года выпуска
-
№АртикулНазвание
-
112710-26G00 CAMSHAFTCAMSHAFT
-
212741-26G00 SPROCKET, CAMSHAFTSPROCKET, CAMSHAFT
-
309206-08001 PINPIN
-
409261-05005 PINPIN
-
507120-0612A BOLTBOLT
-
609390-37001 C RINGC RING
-
712840-26G00 ARM, VALVE ROCKER (INCL. 8 - 9)ARM, VALVE ROCKER (INCL. 8 - 9)
-
812842-38A00 SCREW, TAPPET ADJUSTINGSCREW, TAPPET ADJUSTING
-
912843-32400 NUT, TAPPET ADJUSTINGNUT, TAPPET ADJUSTING
-
1012861-26G01 SHAFT, VALVE ROCKER ARMSHAFT, VALVE ROCKER ARM
-
1109280-09005 O RING (D:1.9,ID:8.6)O RING (D:1.9,ID:8.6)
-
1209164-12021 WASHERWASHER
-
1312911-26G00 VALVE, INTAKEVALVE, INTAKE
-
1412912-26G00 VALVE, EXHAUSTVALVE, EXHAUST
-
1512922-05240 SPRING, VALVESPRING, VALVE
-
1612931-49201 RETAINERRETAINER
-
1712932-24400 COTTER, VALVECOTTER, VALVE
-
1812933-38200 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
1909289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
