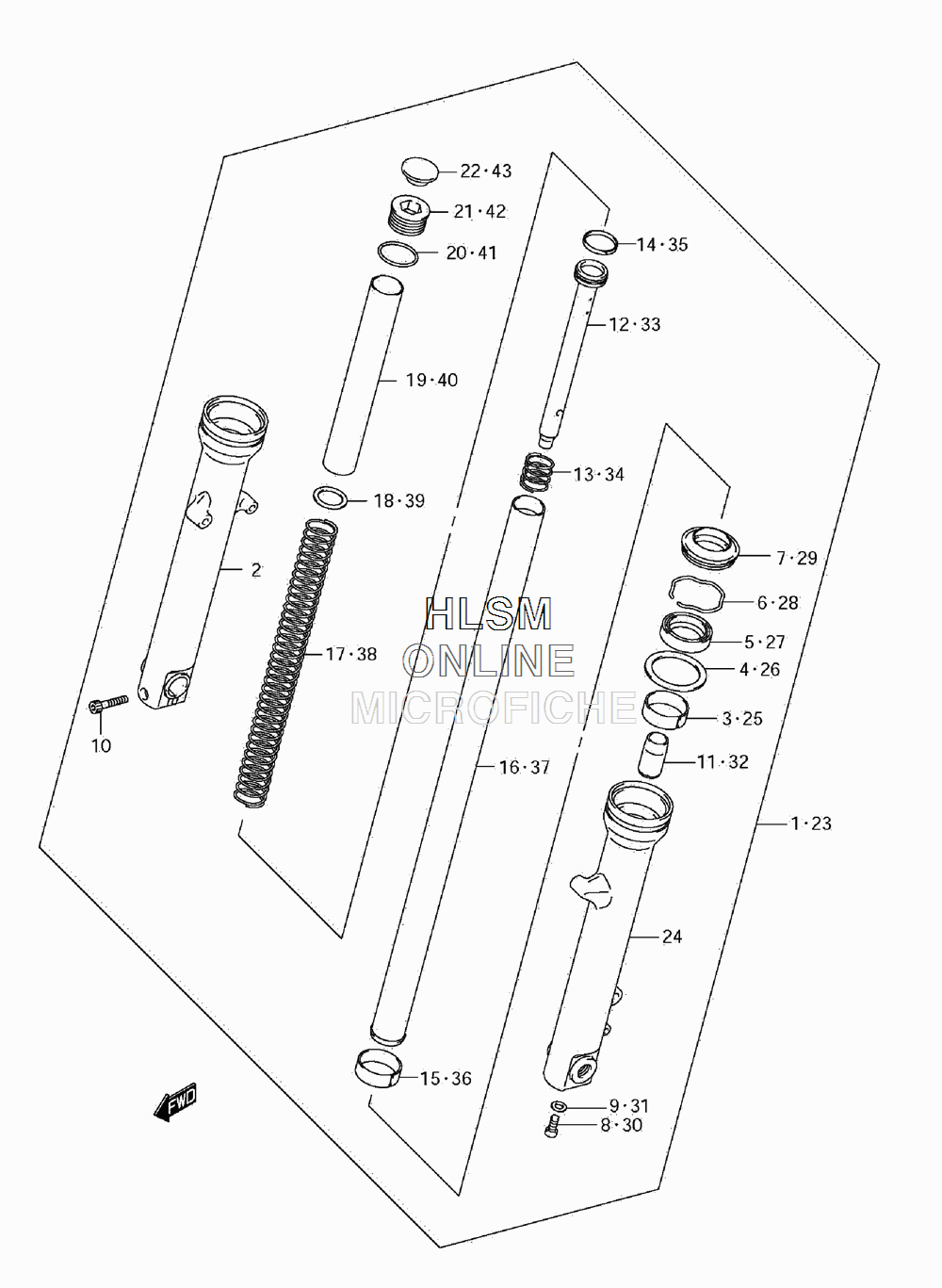

SUSPENSION - FRONT FORK для Suzuki TU-250 L1 - 2011 года выпуска
-
№АртикулНазвание
-
151103-26G10 DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 2 - 22, 24)DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 2 - 22, 24)
-
251130-26G10 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
351152-25D00 BUSH, GUIDEBUSH, GUIDE
-
451158-03B30 SPACER, SEALSPACER, SEAL
-
551153-03B30 SEAL, OILSEAL, OIL
-
651156-03B30 RING, STOPPERRING, STOPPER
-
751173-25D00 SEAL, DUSTSEAL, DUST
-
851147-48130 BOLTBOLT
-
951148-36011 GASKETGASKET
-
1007130-08357 BOLTBOLT
-
1151195-25D00 PIECE, OIL LOCKPIECE, OIL LOCK
-
1251146-25D00 CYLINDERCYLINDER
-
1351177-25D00 SPRING, REBOUNDSPRING, REBOUND
-
1451196-25D00 RING, PISTONRING, PISTON
-
1551121-03B30 BUSH, SLIDEBUSH, SLIDE
-
1651110-25D00 TUBE, INNERTUBE, INNER
-
1751171-26G00 SPRING, MAINSPRING, MAIN
-
1851192-25D00 JOINT, SPRINGJOINT, SPRING
-
1951176-25D00 SPACER, SPRINGSPACER, SPRING
-
2051117-25D00 O RINGO RING
-
2151189-25D00 BOLT, FORKBOLT, FORK
-
2251351-03D00 CAP, FORKCAP, FORK
-
2351104-26G10 DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 2, 10, 24 - 43)DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 2, 10, 24 - 43)
-
2451140-26G10 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
2551152-25D00 BUSH, GUIDEBUSH, GUIDE
-
2651158-03B30 SPACER, SEALSPACER, SEAL
-
2751153-03B30 SEAL, OILSEAL, OIL
-
2851156-03B30 RING, STOPPERRING, STOPPER
-
2951173-25D00 SEAL, DUSTSEAL, DUST
-
3051147-48130 BOLTBOLT
-
3151148-36011 GASKETGASKET
-
3251195-25D00 PIECE, OIL LOCKPIECE, OIL LOCK
-
3351146-25D00 CYLINDERCYLINDER
-
3451177-25D00 SPRING, REBOUNDSPRING, REBOUND
-
3551196-25D00 RING, PISTONRING, PISTON
-
3651121-03B30 BUSH, SLIDEBUSH, SLIDE
-
3751110-25D00 TUBE, INNERTUBE, INNER
-
3851171-26G00 SPRING, MAINSPRING, MAIN
-
3951192-25D00 JOINT, SPRINGJOINT, SPRING
-
4051176-25D00 SPACER, SPRINGSPACER, SPRING
-
4151117-25D00 O RINGO RING
-
4251189-25D00 BOLT, FORKBOLT, FORK
-
4351351-03D00 CAP, FORKCAP, FORK
