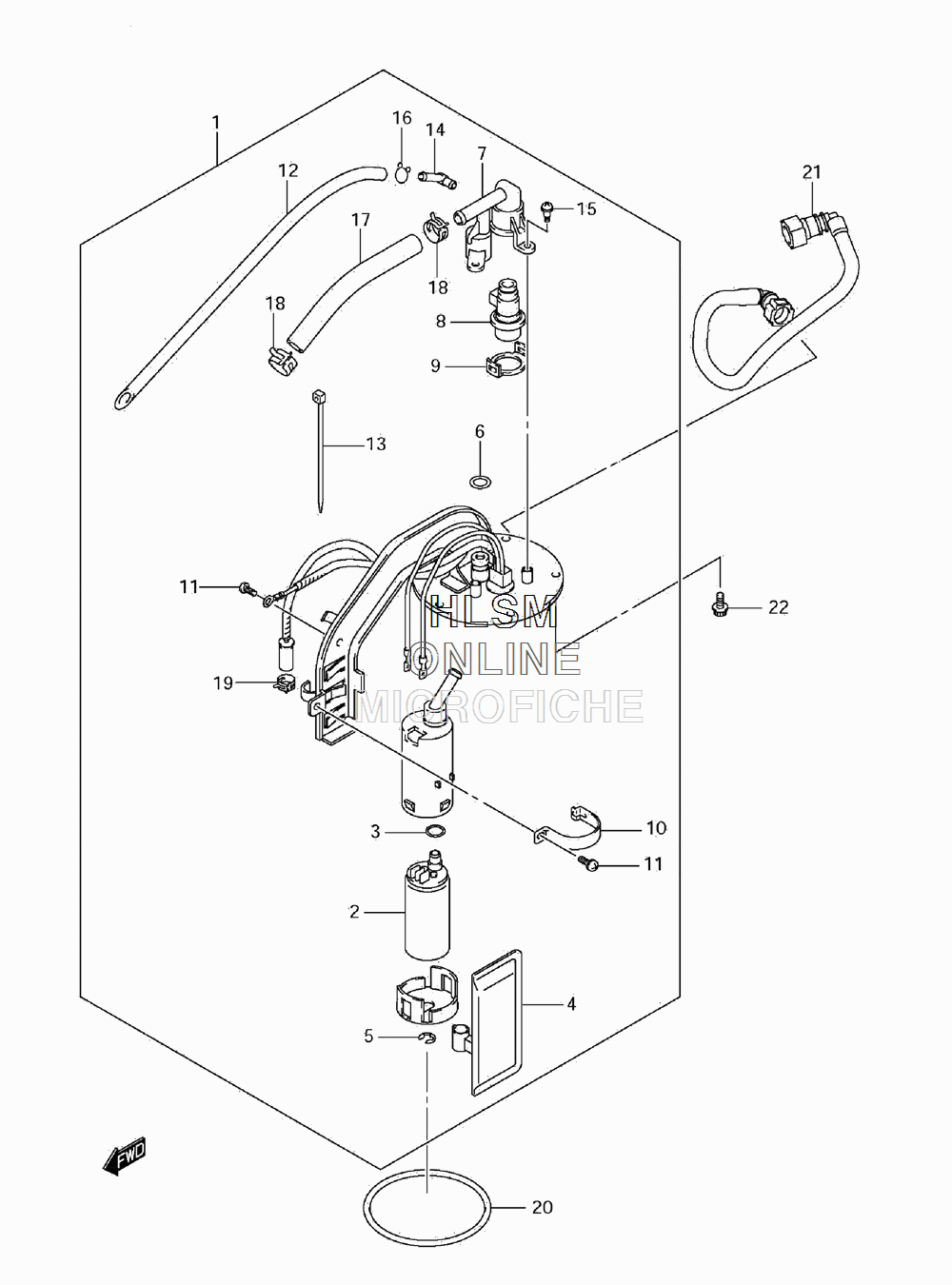

FUEL PUMP для Suzuki TU-250 L1 - 2011 года выпуска
-
№АртикулНазвание
-
115100-26GA0 PUMP ASSY, FUEL (INCL. 2 - 19)PUMP ASSY, FUEL (INCL. 2 - 19)
-
215110-26GA0 PUMP, FUELPUMP, FUEL
-
313295-26GA0 O RINGO RING
-
415420-26GA0 FILTERFILTER
-
515119-14G00 PLATEPLATE
-
615125-48G00 O RINGO RING
-
715131-26GA0 ADAPTERADAPTER
-
815610-48G00 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
915613-48G00 CLIPCLIP
-
1015426-26GA0 BANDBAND
-
1115116-48G00 SCREWSCREW
-
1213683-26GA0 HOSEHOSE
-
1313432-14G00 CLAMPCLAMP
-
1415614-26GA0 JOINTJOINT
-
1515135-48G00 SCREWSCREW
-
1613693-24F00 CLIPCLIP
-
1713683-26GB0 HOSEHOSE
-
1815135-14G00 CLIPCLIP
-
1915175-48G00 CLAMPCLAMP
-
2015201-35F00 O RINGO RING
-
2115810-26GA0 HOSE, FUELHOSE, FUEL
-
2207120-0612A BOLTBOLT
