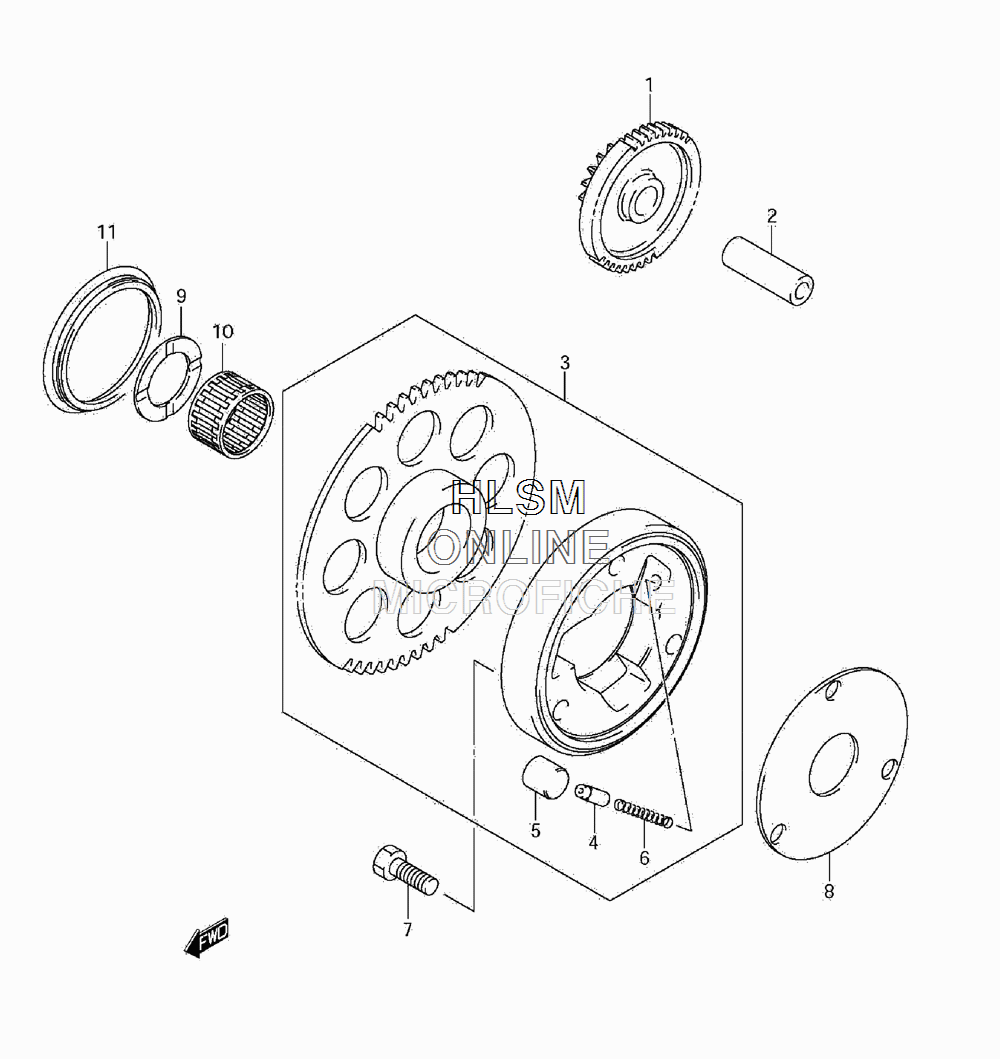

STARTER CLUTCH для Suzuki TU-250 L1 - 2011 года выпуска
-
№АртикулНазвание
-
112611-38301 GEAR, STARTER IDLEGEAR, STARTER IDLE
-
209206-13007 PINPIN
-
312600-38815 CLUTCH SET, STARTER (INCL. 4 - 6)CLUTCH SET, STARTER (INCL. 4 - 6)
-
412633-31000 PIECEPIECE
-
509261-14001 PINPIN
-
609440-04015 SPRINGSPRING
-
709100-08299 BOLT (8X20)BOLT (8X20)
-
812649-49300 SHIMSHIM
-
909160-27005 WASHER (27X40X2.5)WASHER (27X40X2.5)
-
1009263-27004 BEARING (27X32X21.8)BEARING (27X32X21.8)
-
1109289-52002 OIL SEAL (52X62X6.8)OIL SEAL (52X62X6.8)
