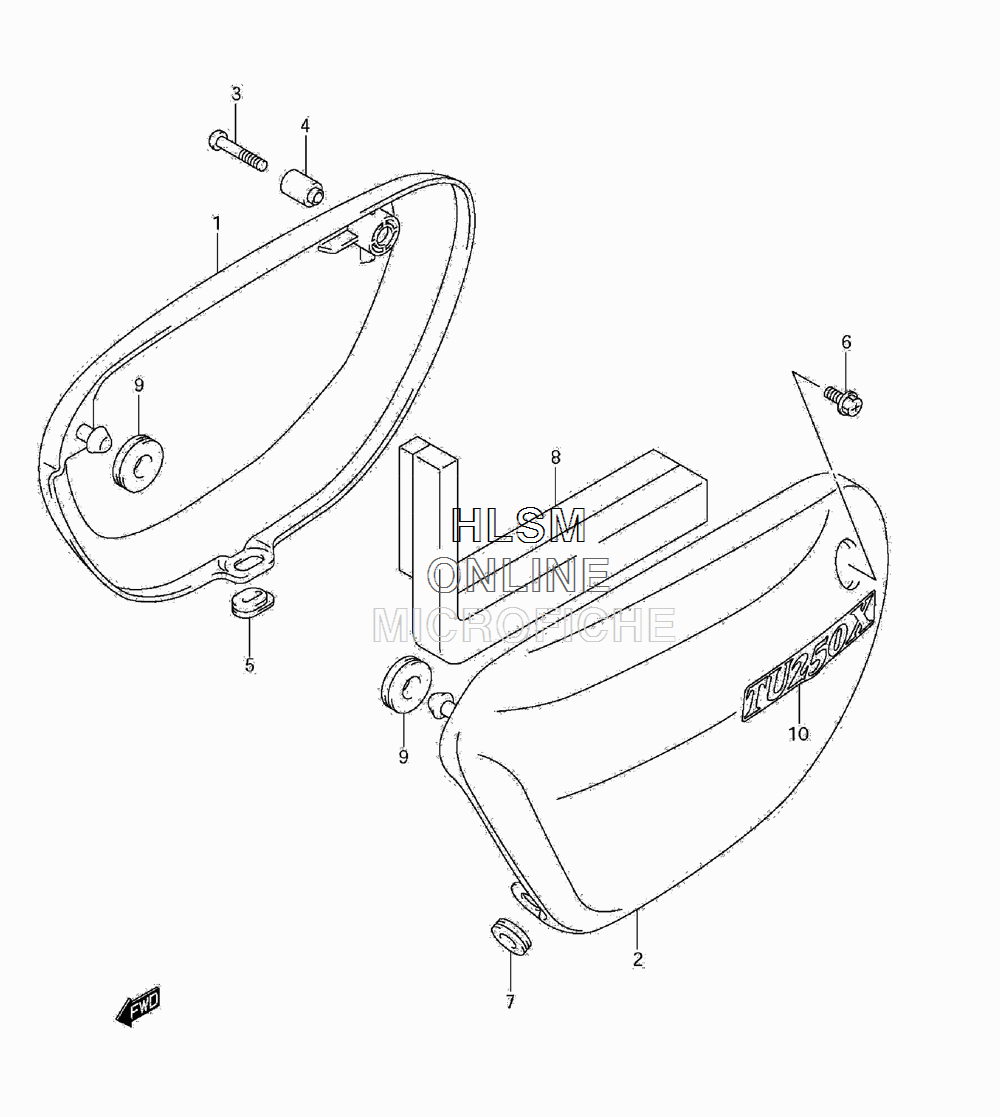

SIDE COVER для Suzuki TU-250 L1 - 2011 года выпуска
-
№АртикулНазвание
-
147111-26G10-YWB COVER, FRAME RIGHT HAND (GRAY) (YWB)COVER, FRAME RIGHT HAND (GRAY) (YWB)
-
247211-26G11-YWB COVER, FRAME LEFT HAND (GRAY) (YWB)COVER, FRAME LEFT HAND (GRAY) (YWB)
-
309123-06028 SCREW (6X35.5)SCREW (6X35.5)
-
409180-06340 SPACER (6.2X9X23.5)SPACER (6.2X9X23.5)
-
509320-03004 CUSHIONCUSHION
-
609111-06095 BOLT (6X16.5)BOLT (6X16.5)
-
709320-08013 CUSHIONCUSHION
-
847160-26G00 CUSHIONCUSHION
-
909320-08018 CUSHIONCUSHION
-
1068131-26G50-YPA EMBLEM (WHITE)EMBLEM (WHITE)
