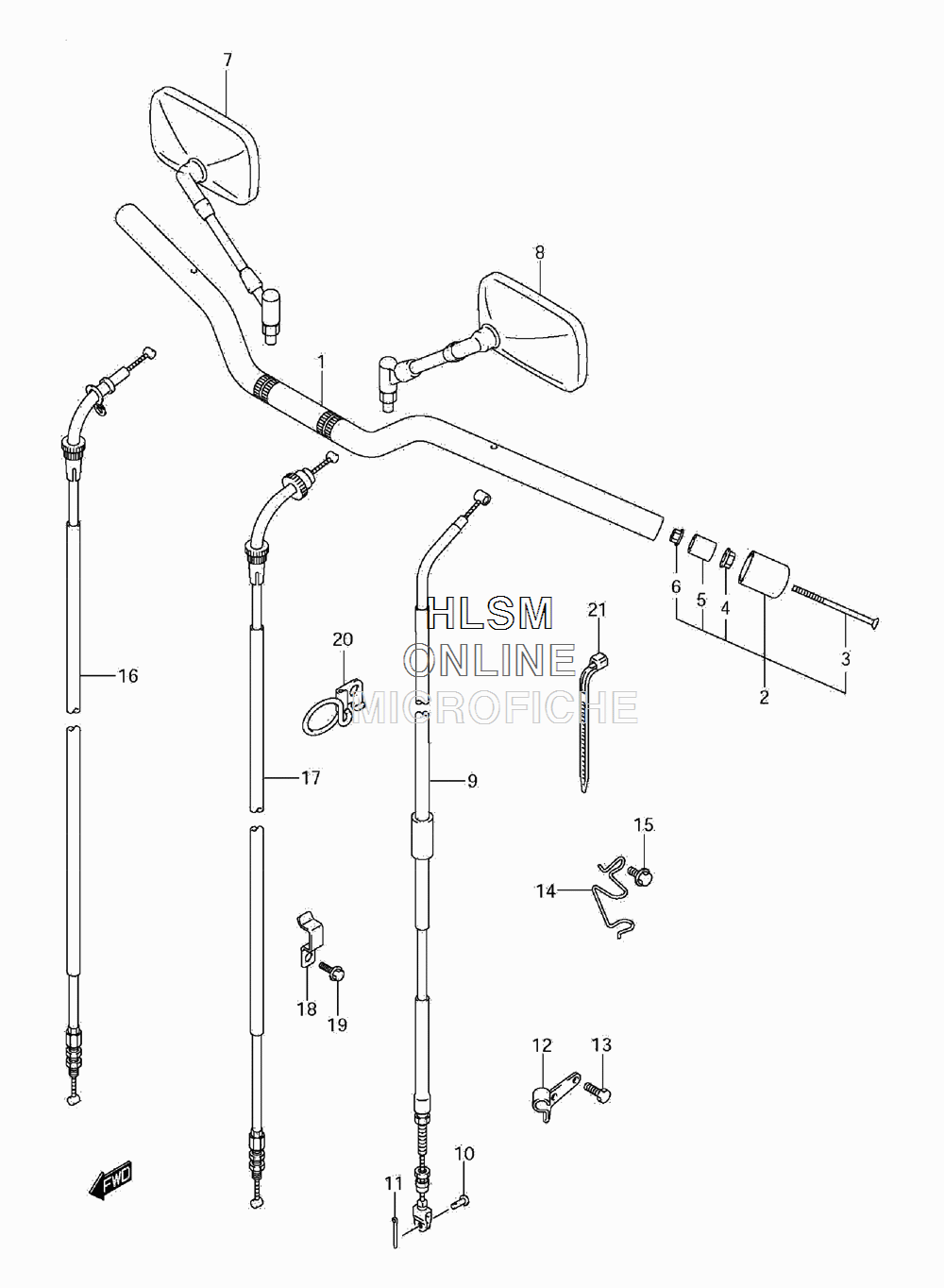

HANDLEBAR для Suzuki TU-250 L1 - 2011 года выпуска
-
№АртикулНазвание
-
156111-26G00 HANDLEBARHANDLEBAR
-
256270-26G00 BALANCER SET, HANDLEBAR (INCL. 3 - 6)BALANCER SET, HANDLEBAR (INCL. 3 - 6)
-
302122-06757 SCREWSCREW
-
408316-1008B NUTNUT
-
556272-44500 EXPANDEREXPANDER
-
609159-06024 NUTNUT
-
756500-39E40 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
856600-39E40 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
958200-26G00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1009200-06004 PINPIN
-
1104111-2015A COTTER PINCOTTER PIN
-
1258634-38210 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
1301500-0616A BOLTBOLT
-
1458623-26G00 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1502162-0612B SCREWSCREW
-
1658300-26G20 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1758300-26G30 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1809403-10307 CLAMPCLAMP
-
1901550-0616B BOLTBOLT
-
2058620-26G00 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
2109407-19401 CLAMPCLAMP
