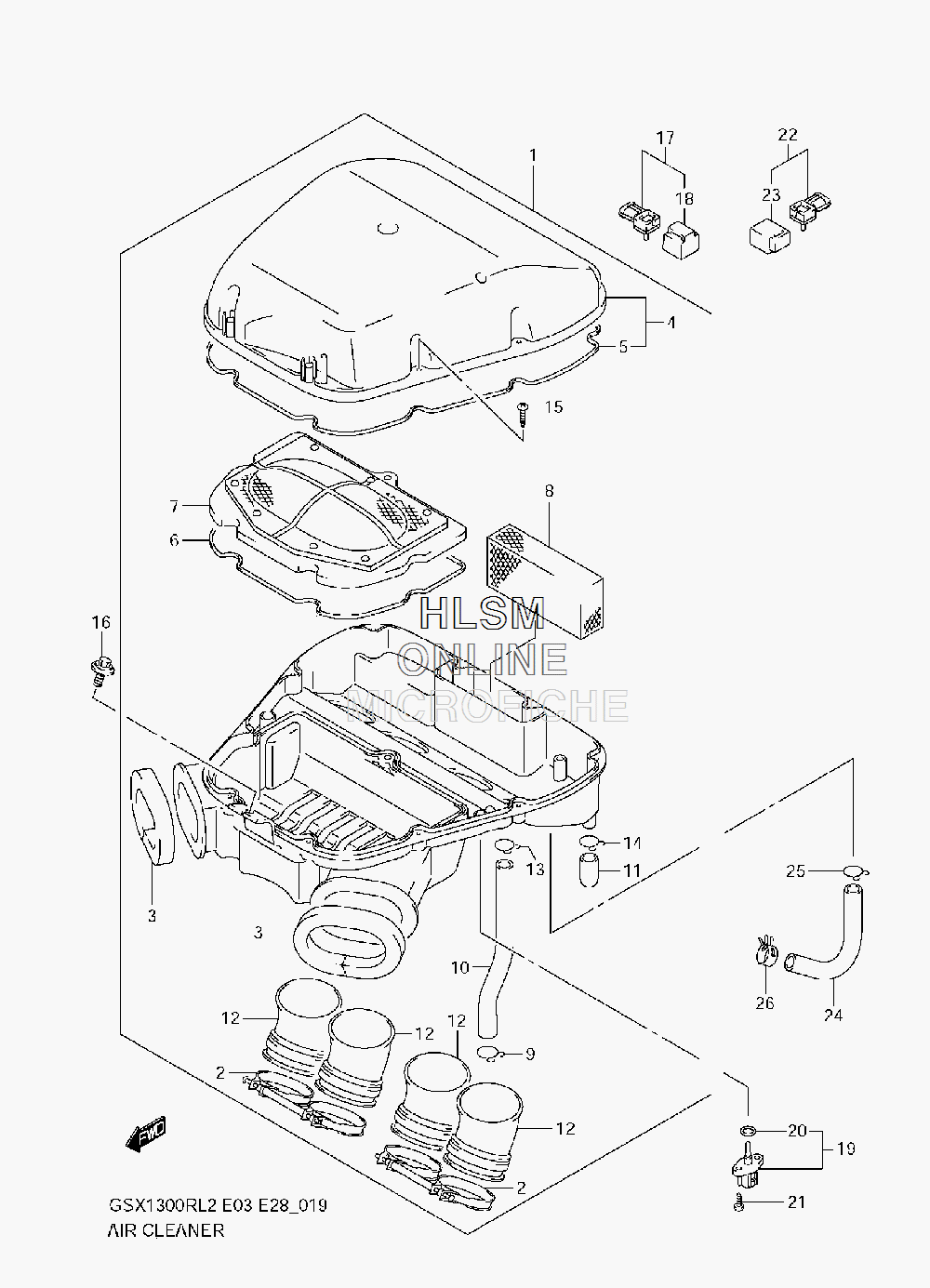

AIR CLEANER для Suzuki GSX-1300R L2 - 2012 года выпуска
-
№АртикулНазвание
-
113700-15H00 CLEANER ASSY, AIR (INCL. 2-15)CLEANER ASSY, AIR (INCL. 2-15)
-
213170-15H10 CLAMPCLAMP
-
313736-15H00 CUSHION, DUCTCUSHION, DUCT
-
413740-15H00 CAP, AIR CLEANER (INCL. 5)CAP, AIR CLEANER (INCL. 5)
-
513746-15H00 GASKET, CAPGASKET, CAP
-
613756-15H00 GASKET, CASEGASKET, CASE
-
713780-15H00 FILTER ASSYFILTER ASSY
-
813788-15H00 FILTER, BREATHERFILTER, BREATHER
-
909401-16401 CLIPCLIP
-
1013853-15H00 TUBE, BREATHERTUBE, BREATHER
-
1113859-41B10 PLUGPLUG
-
1213882-41G00 TUBE, OUTLETTUBE, OUTLET
-
1309401-14301 CLIPCLIP
-
1409401-14301 CLIPCLIP
-
1503541-0525B SCREWSCREW
-
1609116-06130 BOLT (6X16)BOLT (6X16)
-
1715630-29G20 SENSOR, BOOST (INCL. 18)SENSOR, BOOST (INCL. 18)
-
1815625-29G10 COVERCOVER
-
1913650-14G11 SENSOR, AIR TEMPERATURE (INCL. 20)SENSOR, AIR TEMPERATURE (INCL. 20)
-
2013655-14G10 O RINGO RING
-
2103511-0516A SCREWSCREW
-
2215630-29G10 SENSOR, AIR PRESSURE (INCL. 23)SENSOR, AIR PRESSURE (INCL. 23)
-
2315625-29G00 COVERCOVER
-
2413697-15H00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2509401-15101 CLIPCLIP
-
2609401-16403 CLAMPCLAMP
