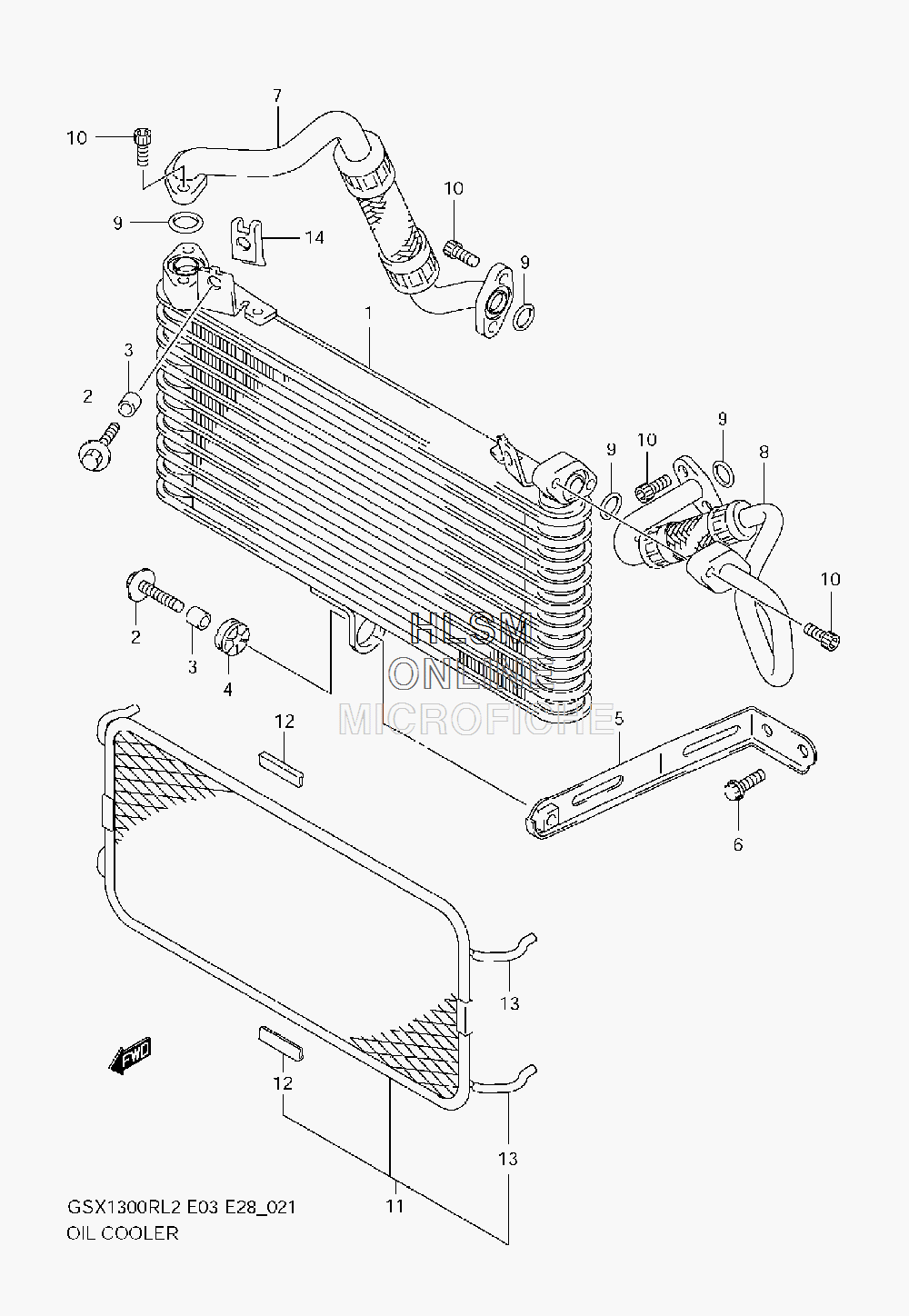

OIL COOLER для Suzuki GSX-1300R L2 - 2012 года выпуска
-
№АртикулНазвание
-
116600-15H10 COOLER ASSY, OILCOOLER ASSY, OIL
-
209118-06097 BOLT (6X25)BOLT (6X25)
-
309180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
409320-10051 CUSHIONCUSHION
-
516640-24F00 BRACKET, OIL COOLERBRACKET, OIL COOLER
-
601550-0612A BOLTBOLT
-
716460-15H00 HOSE, OIL COOLER RIGHT HANDHOSE, OIL COOLER RIGHT HAND
-
816470-15H00 HOSE, OIL COOLER LEFT HANDHOSE, OIL COOLER LEFT HAND
-
909280-15015 O RING (D:2.4,ID:16)O RING (D:2.4,ID:16)
-
1009106-06073 BOLT (6X16)BOLT (6X16)
-
1116650-15H00 GUARD, OIL COOLER (INCL. 12, 13)GUARD, OIL COOLER (INCL. 12, 13)
-
1217765-09F00 PROTECTOR, CENTERPROTECTOR, CENTER
-
1309352-30503-600 HOSE (3X5X600)HOSE (3X5X600)
-
1417802-14F00 NUTNUT
