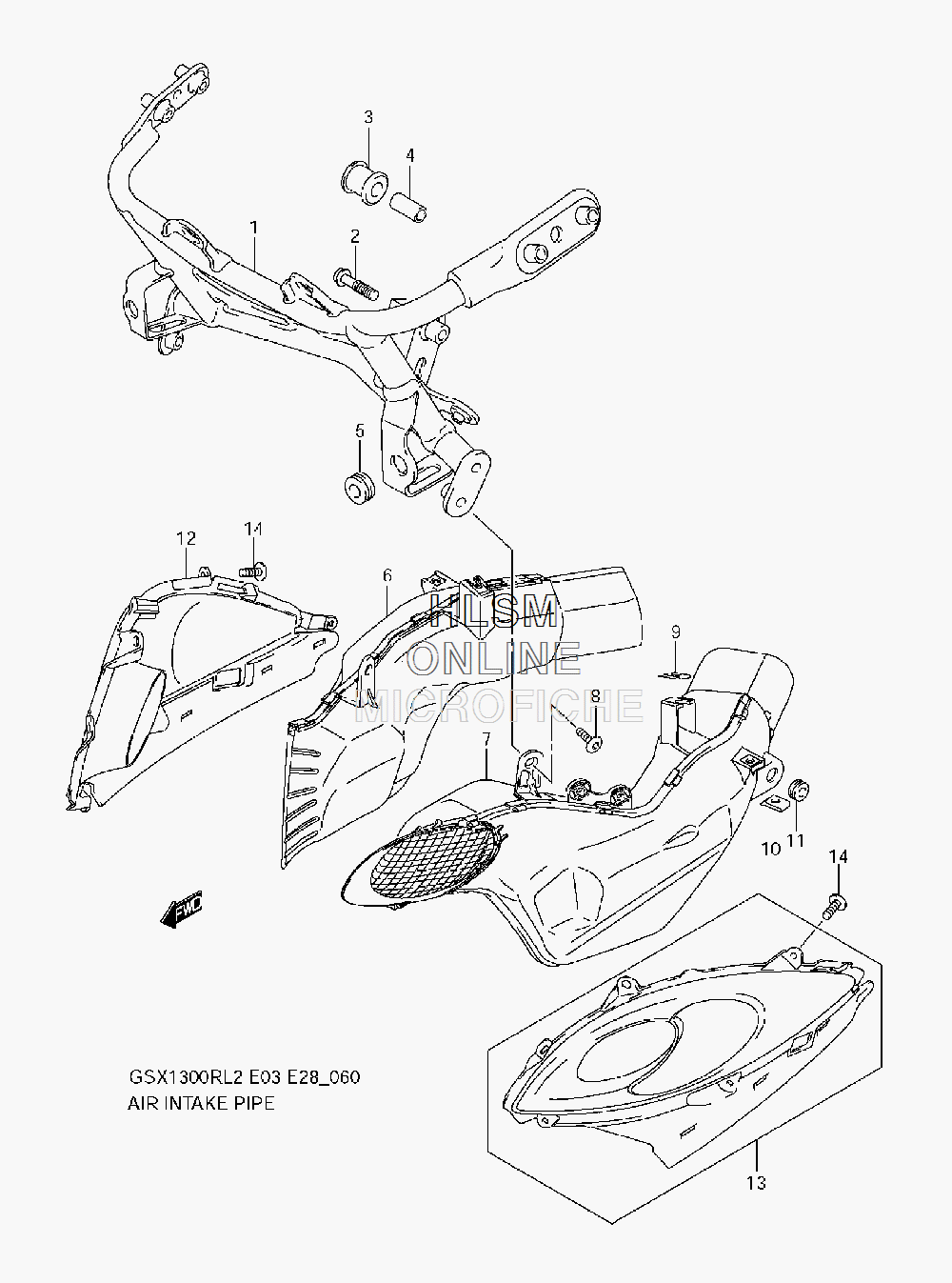

AIR INTAKE для Suzuki GSX-1300R L2 - 2012 года выпуска
-
№АртикулНазвание
-
194510-15H00 BRACE, COWLINGBRACE, COWLING
-
209103-08367 BOLT (8X40)BOLT (8X40)
-
394541-41C00 CUSHION, UPPERCUSHION, UPPER
-
409180-08215 SPACER (8.6X12.2X26.5)SPACER (8.6X12.2X26.5)
-
509320-08028 CUSHIONCUSHION
-
694420-15H01 PIPE, INTAKE RIGHT HANDPIPE, INTAKE RIGHT HAND
-
794430-15H01 PIPE, INTAKE LEFT HANDPIPE, INTAKE LEFT HAND
-
894423-15H00 SCREW, INTAKESCREW, INTAKE
-
994484-24F00 NUT, METER PANELNUT, METER PANEL
-
1009148-05038 NUTNUT
-
1109320-08028 CUSHIONCUSHION
-
1294671-15H00-YVB COVER, INTAKE RIGHT HAND (YVB - BLACK)COVER, INTAKE RIGHT HAND (YVB - BLACK)
-
1294671-15H00-YHL COVER, INTAKE RIGHT HAND (YHL - RED)COVER, INTAKE RIGHT HAND (YHL - RED)
-
1294671-15H00-YWW COVER, INTAKE RIGHT HAND (YWW - WHITE)COVER, INTAKE RIGHT HAND (YWW - WHITE)
-
1394681-15H00-YVB COVER, INTAKE LEFT HAND (YVB - BLACK)COVER, INTAKE LEFT HAND (YVB - BLACK)
-
1394681-15H00-YHL COVER, INTAKE LEFT HAND (YHL - RED)COVER, INTAKE LEFT HAND (YHL - RED)
-
1394681-15H00-YWW COVER, INTAKE LEFT HAND (YWW - WHITE)COVER, INTAKE LEFT HAND (YWW - WHITE)
-
1409132-05053 SCREW (5X16)SCREW (5X16)
