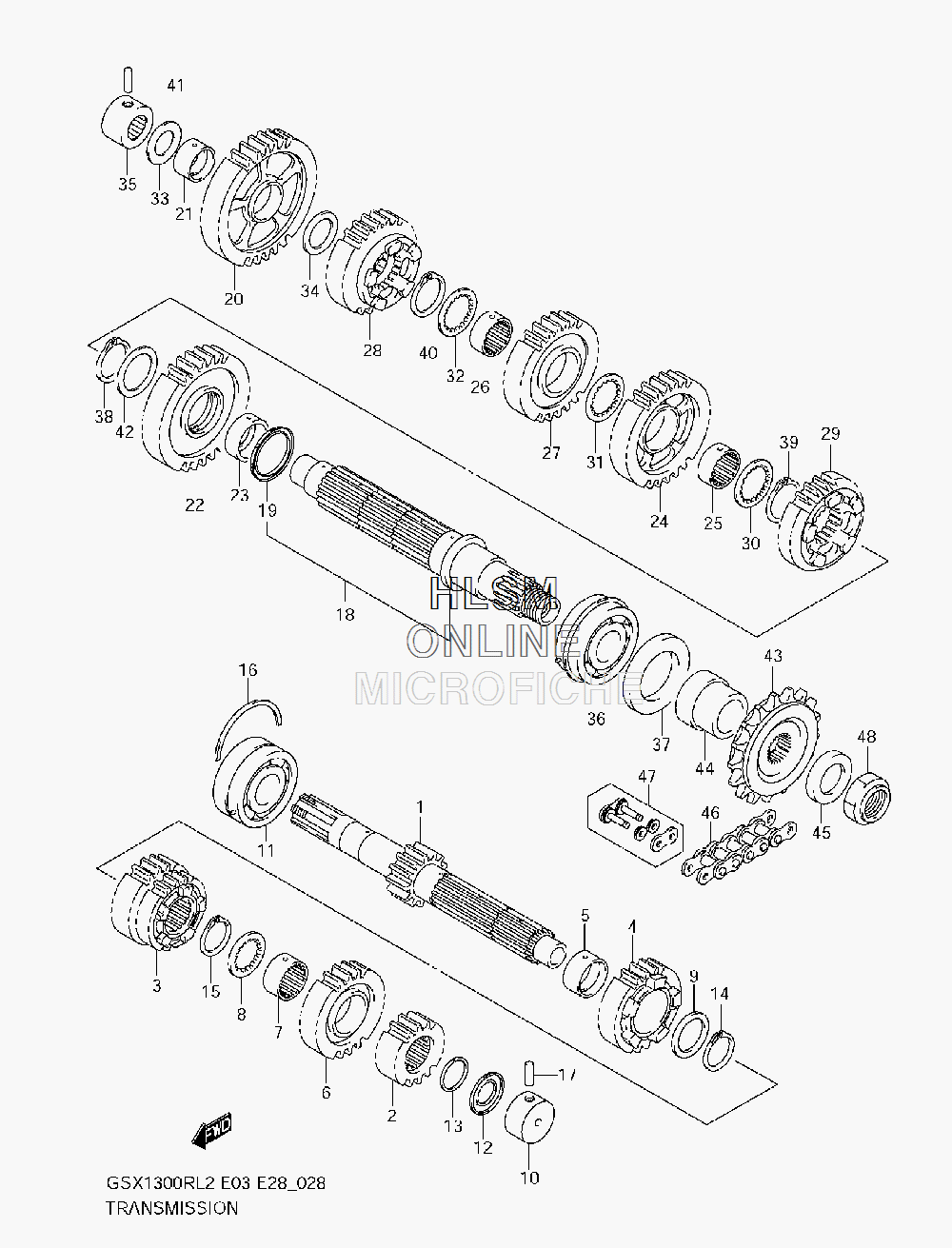

TRANSMISSION для Suzuki GSX-1300R L2 - 2012 года выпуска

№

Артикул

Название
1

24120-24F00 SHAFT, COUNTER (NT:13)

SHAFT, COUNTER (NT:13)

49 370 ₽
2

24221-15H00 GEAR, 2ND DRIVE (NT:16)

GEAR, 2ND DRIVE (NT:16)

19 710 ₽
3

24231-15H00 GEAR, 3RD AND 4TH DRIVE (NT:19/21)

GEAR, 3RD AND 4TH DRIVE (NT:19/21)

34 900 ₽
4

24251-15H01 GEAR, 5TH DRIVE (NT:22)

GEAR, 5TH DRIVE (NT:22)

28 010 ₽
5

24252-24F10 BUSH, 5TH DRIVE GEAR

BUSH, 5TH DRIVE GEAR

5 270 ₽
6

24261-15H00 GEAR, 6TH DRIVE (NT:23)

GEAR, 6TH DRIVE (NT:23)

28 010 ₽
7

24262-24F10 BUSH, 6TH DRIVE GEAR

BUSH, 6TH DRIVE GEAR

5 270 ₽
8

09167-27003 LOCK WASHER (27X36X2.)

LOCK WASHER (27X36X2.)

970 ₽
9

09181-27014 SHIM (27X36X2.5)

SHIM (27X36X2.5)

900 ₽
10

09263-20085 BEARING (20X34X17.5) LEFT HAND

BEARING (20X34X17.5) LEFT HAND

10 980 ₽
11

09267-25012 BEARING (25X62X25.4) RIGHT HAND

BEARING (25X62X25.4) RIGHT HAND

22 330 ₽
12

09285-20006 OIL SEAL (20X31.2X2.7)

OIL SEAL (20X31.2X2.7)

1 140 ₽
13

09380-27004 CIRCLIP

CIRCLIP

650 ₽
14

09380-27006 CIRCLIP

CIRCLIP

470 ₽
15

09380-27006 CIRCLIP

CIRCLIP

470 ₽
16

09390-62012 C RING

C RING

1 270 ₽
17

04221-07209 PIN

PIN

330 ₽
18

24130-15H00 SHAFT, DRIVE (INCL. 19)

SHAFT, DRIVE (INCL. 19)

45 030 ₽
19

24136-48G01 RING, DRIVE SHAFT FRICTION

RING, DRIVE SHAFT FRICTION

5 900 ₽
20

24311-15H00 GEAR, 1ST DRIVEN (NT:34)

GEAR, 1ST DRIVEN (NT:34)

28 610 ₽
21

24312-24F10 BUSH, 1ST DRIVEN GEAR

BUSH, 1ST DRIVEN GEAR

5 270 ₽
22

24321-15H00 GEAR, 2ND DRIVEN (NT:31)

GEAR, 2ND DRIVEN (NT:31)

28 610 ₽
23

24322-48G00 BUSH, 2ND DRIVEN GEAR

BUSH, 2ND DRIVEN GEAR

4 960 ₽
24

24331-15H00 GEAR, 3RD DRIVEN (NT:29)

GEAR, 3RD DRIVEN (NT:29)

28 610 ₽
25

24332-24F10 BUSH, 3RD DRIVEN GEAR

BUSH, 3RD DRIVEN GEAR

5 270 ₽
26

24332-24F10 BUSH, 4TH DRIVEN GEAR

BUSH, 4TH DRIVEN GEAR

5 270 ₽
27

24341-15H00 GEAR, 4TH DRIVEN (NT:27)

GEAR, 4TH DRIVEN (NT:27)

28 610 ₽
28

24351-15H01 GEAR, 5TH DRIVEN (NT:25)

GEAR, 5TH DRIVEN (NT:25)

29 330 ₽
29

24361-15H00 GEAR, 6TH DRIVEN (NT:24)

GEAR, 6TH DRIVEN (NT:24)

29 330 ₽
30

09167-30008 LOCK WASHER (30X38X2)

LOCK WASHER (30X38X2)

900 ₽
31

09167-30008 LOCK WASHER (30X38X2)

LOCK WASHER (30X38X2)

900 ₽
32

09167-30008 LOCK WASHER (30X38X2)

LOCK WASHER (30X38X2)

900 ₽
33

09181-20251 SHIM (20X34X1)

SHIM (20X34X1)

480 ₽
34

09181-24005 SHIM (24X34X1)

SHIM (24X34X1)

610 ₽
35

09263-20040 BEARING RIGHT HAND (20X34X20)

BEARING RIGHT HAND (20X34X20)

8 170 ₽
36

09267-30011 BEARING LEFT HAND (30X62X23.8)

BEARING LEFT HAND (30X62X23.8)

23 920 ₽
37

09283-42018 OIL SEAL (42X62X7)

OIL SEAL (42X62X7)

6 360 ₽
38

09380-30009 CIRCLIP

CIRCLIP

610 ₽
39

09380-30009 CIRCLIP

CIRCLIP

610 ₽
40

09380-30009 CIRCLIP

CIRCLIP

610 ₽
41

04221-07209 PIN

PIN

330 ₽
42

08211-30405 WASHER

WASHER

600 ₽
43

27510-15H00 SPROCKET, ENGINE (NT:18)

SPROCKET, ENGINE (NT:18)

22 080 ₽
44

27531-15H00 SPACER, ENGINE SPROCKET NO.1

SPACER, ENGINE SPROCKET NO.1

5 550 ₽
45

27532-15H00 SPACER, ENGINE SPROCKET NO.2

SPACER, ENGINE SPROCKET NO.2

2 370 ₽
46

27600-24F60-118 CHAIN ASSY, DRIVE (RK GB50GSVZ4) L:118>114

CHAIN ASSY, DRIVE (RK GB50GSVZ4) L:118>114

2 693 600 ₽
47

27620-24F60 JOINT SET, DRIVEN

JOINT SET, DRIVEN

3 140 ₽
48

09159-22008 NUT

NUT

5 280 ₽
