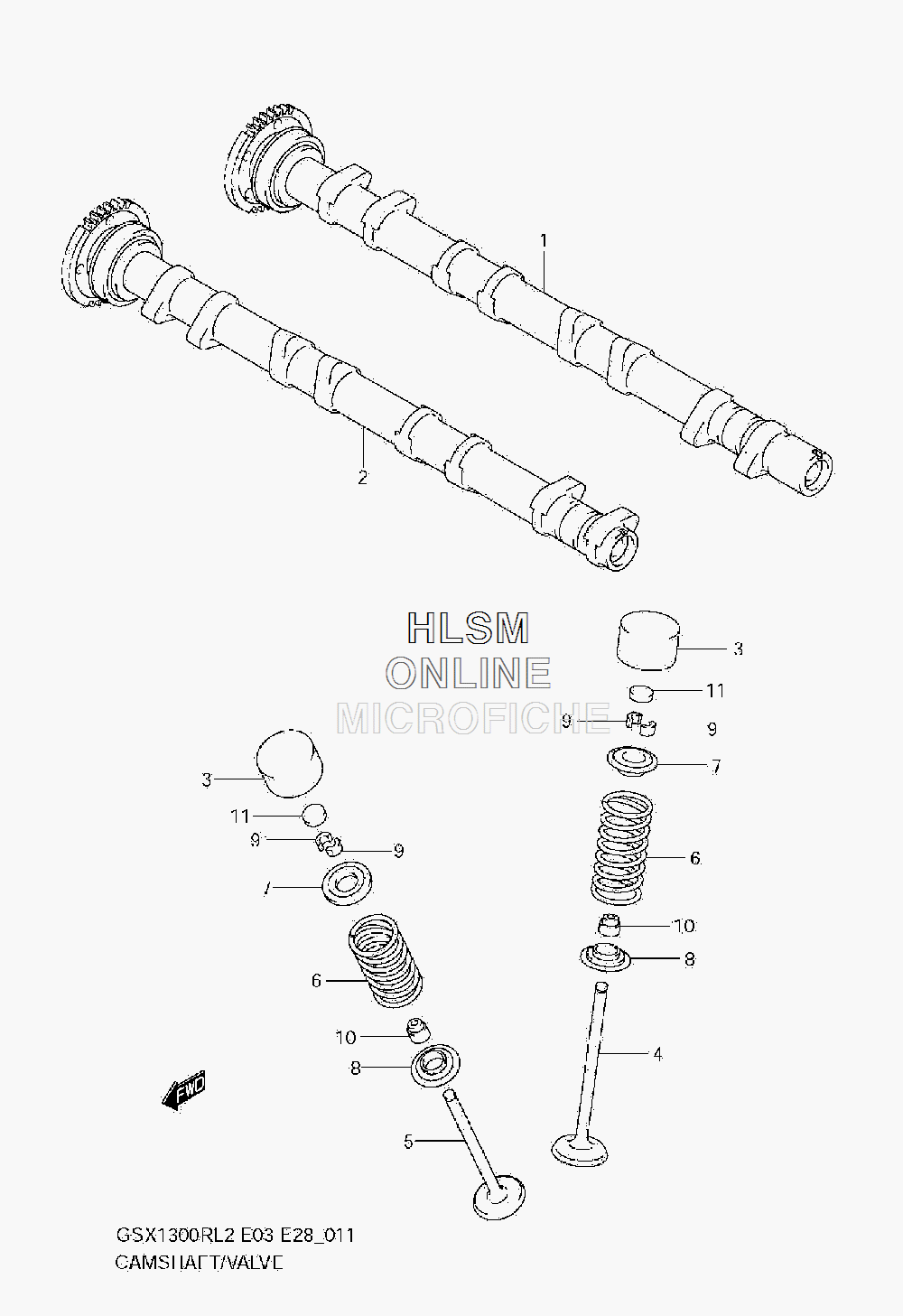

CAMSHAFT W/ VALVES для Suzuki GSX-1300R L2 - 2012 года выпуска
-
№АртикулНазвание
-
112710-15H00 CAMSHAFT, INTAKECAMSHAFT, INTAKE
-
212720-15H00 CAMSHAFT, EXHAUSTCAMSHAFT, EXHAUST
-
312891-02F00 TAPPETTAPPET
-
412911-15H00 VALVE, INTAKEVALVE, INTAKE
-
512912-15H00 VALVE, EXHAUSTVALVE, EXHAUST
-
612921-15H00 SPRING, VALVESPRING, VALVE
-
712931-02F10 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
812933-38400 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
1009289-05011 OIL SEAL (5X10X9.7)OIL SEAL (5X10X9.7)
-
1112892-41C00-230 SHIM, TAPPET (T:2.30)SHIM, TAPPET (T:2.30)
-
1112892-41C00-235 SHIM, TAPPET (T:2.35)SHIM, TAPPET (T:2.35)
-
1112892-41C00-240 SHIM, TAPPET (T:2.40)SHIM, TAPPET (T:2.40)
-
1112892-41C00-245 SHIM, TAPPET (T:2.45)SHIM, TAPPET (T:2.45)
-
1112892-41C00-250 SHIM, TAPPET (T:2.50)SHIM, TAPPET (T:2.50)
-
1112892-41C00-255 SHIM, TAPPET (T:2.55)SHIM, TAPPET (T:2.55)
-
1112892-41C00-260 SHIM, TAPPET (T:2.60)SHIM, TAPPET (T:2.60)
-
1112892-41C00-265 SHIM, TAPPET (T:2.65)SHIM, TAPPET (T:2.65)
-
1112892-41C00-270 SHIM, TAPPET (T:2.70)SHIM, TAPPET (T:2.70)
-
1112892-41C00-275 SHIM, TAPPET (T:2.75)SHIM, TAPPET (T:2.75)
-
1112892-41C00-280 SHIM, TAPPET (T:2.80)SHIM, TAPPET (T:2.80)
-
1112892-41C00-285 SHIM, TAPPET (T:2.85)SHIM, TAPPET (T:2.85)
-
1112892-41C00-290 SHIM, TAPPET (T:2.90)SHIM, TAPPET (T:2.90)
-
1112892-41C00-295 SHIM, TAPPET (T:2.95)SHIM, TAPPET (T:2.95)
-
1112892-41C00-300 SHIM, TAPPET (T:3.00)SHIM, TAPPET (T:3.00)
-
1112892-41C00-305 SHIM, TAPPET (T:3.05)SHIM, TAPPET (T:3.05)
-
1112892-41C00-310 SHIM, TAPPET (T:3.10)SHIM, TAPPET (T:3.10)
-
1112892-41C00-315 SHIM, TAPPET (T:3.15)SHIM, TAPPET (T:3.15)
-
1112892-41C00-320 SHIM, TAPPET (T:3.20)SHIM, TAPPET (T:3.20)
-
1112892-41C00-325 SHIM, TAPPET (T:3.25)SHIM, TAPPET (T:3.25)
-
1112892-41C00-330 SHIM, TAPPET (T:3.30)SHIM, TAPPET (T:3.30)
-
1112892-41C00-335 SHIM, TAPPET (T:3.35)SHIM, TAPPET (T:3.35)
-
1112892-41C00-340 SHIM, TAPPET (T:3.40)SHIM, TAPPET (T:3.40)
-
1112892-41C00-345 SHIM, TAPPET (T:3.45)SHIM, TAPPET (T:3.45)
-
1112892-41C00-350 SHIM, TAPPET (T:3.50)SHIM, TAPPET (T:3.50)
-
1212800-41810 SHIM SET, TAPPET (T:2.30/2.35/.../3.45/3.50 (5 PCS EACH) AND NO. 13SHIM SET, TAPPET (T:2.30/2.35/.../3.45/3.50 (5 PCS EACH) AND NO. 13
-
1399000-69471 CASE, TAPPET SHIM (NOT SHOWN)CASE, TAPPET SHIM (NOT SHOWN)
