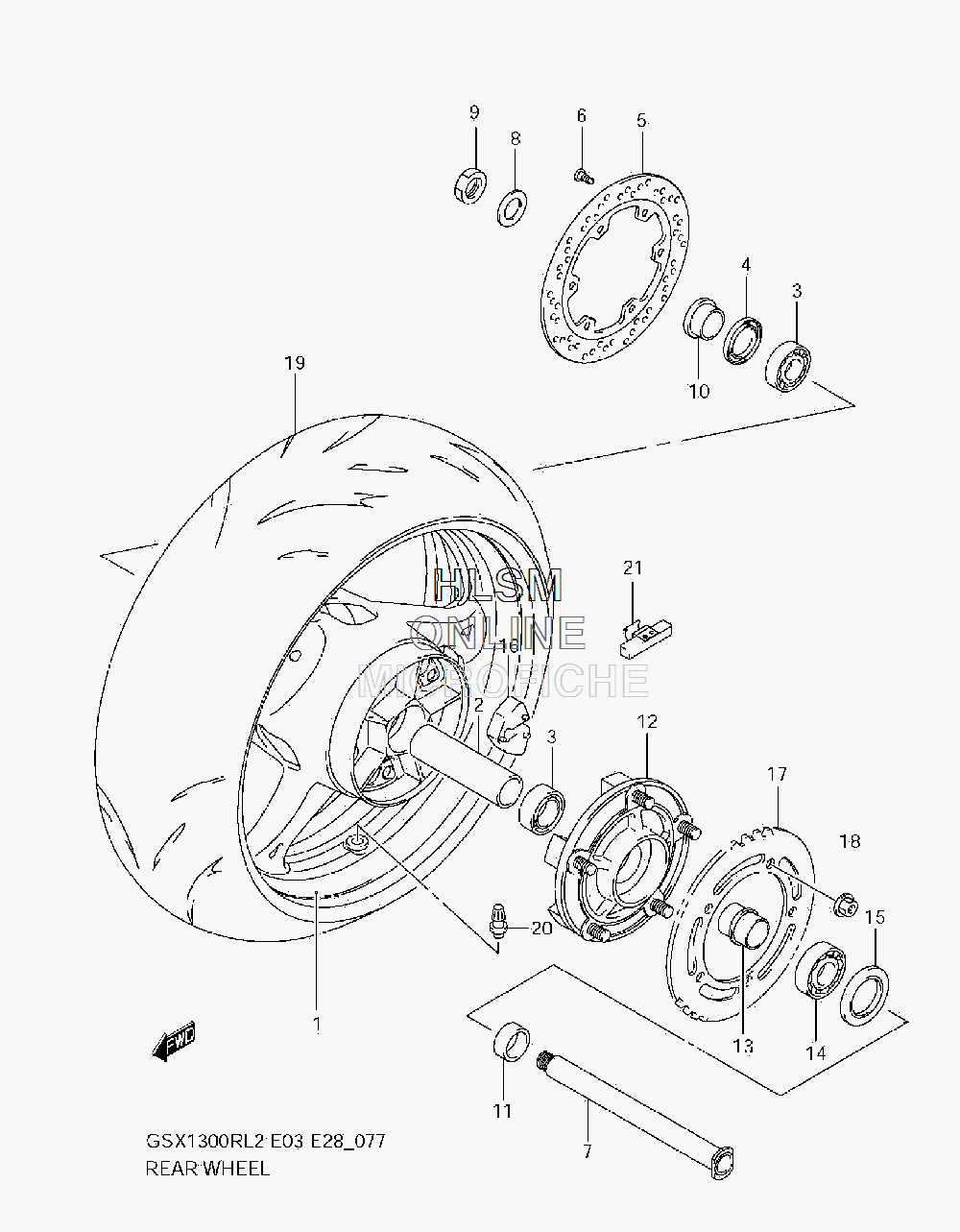

WHEEL - REAR для Suzuki GSX-1300R L2 - 2012 года выпуска
-
№АртикулНазвание
-
164111-15H00-019 WHEEL, REAR (17M/CXMT6.00) (019 -BLACK) FOR YVB/YHL)WHEEL, REAR (17M/CXMT6.00) (019 -BLACK) FOR YVB/YHL)
-
164111-15H00-Y6G WHEEL, REAR, (17M/CXMT6.00) (Y6G - SILVER FOR YWW)WHEEL, REAR, (17M/CXMT6.00) (Y6G - SILVER FOR YWW)
-
264731-40F10 SPACER, HUB BEARINGSPACER, HUB BEARING
-
309262-28043 BEARING (28X52X12)BEARING (28X52X12)
-
409284-37001 OIL SEAL (37X52X8)OIL SEAL (37X52X8)
-
569211-15H00 DISC, REAR BRAKEDISC, REAR BRAKE
-
609106-08160 BOLT (8X21)BOLT (8X21)
-
764711-33E20 AXLE, REARAXLE, REAR
-
809160-25070 WASHER (25.2X42X3.2)WASHER (25.2X42X3.2)
-
909159-25003 NUTNUT
-
1064741-35F00 SPACER, AXLE RIGHT HANDSPACER, AXLE RIGHT HAND
-
1164751-49G00 SPACER, AXLE LEFT HANDSPACER, AXLE LEFT HAND
-
1264610-35F30 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
1364733-35F00 RETAINER, SPROCKET DRUMRETAINER, SPROCKET DRUM
-
1409262-32007 BEARING (32X65X17)BEARING (32X65X17)
-
1509285-39001 OIL SEAL (39X65X7)OIL SEAL (39X65X7)
-
1664651-35F20 ABSORBER, HUB SHOCKABSORBER, HUB SHOCK
-
1764511-40F50 SPROCKET, REAR (NT:43)SPROCKET, REAR (NT:43)
-
1808319-3110A NUTNUT
-
1965110-24F50 TIRE, REAR (190/50 ZR17 (73W))TIRE, REAR (190/50 ZR17 (73W))
-
2043130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
2155411-22H00 BALANCER, WHEEL, NO.1BALANCER, WHEEL, NO.1
-
2155412-22H00 BALANCER, WHEEL, NO.2BALANCER, WHEEL, NO.2
-
2155413-22H00 BALANCER, WHEEL, NO.3BALANCER, WHEEL, NO.3
