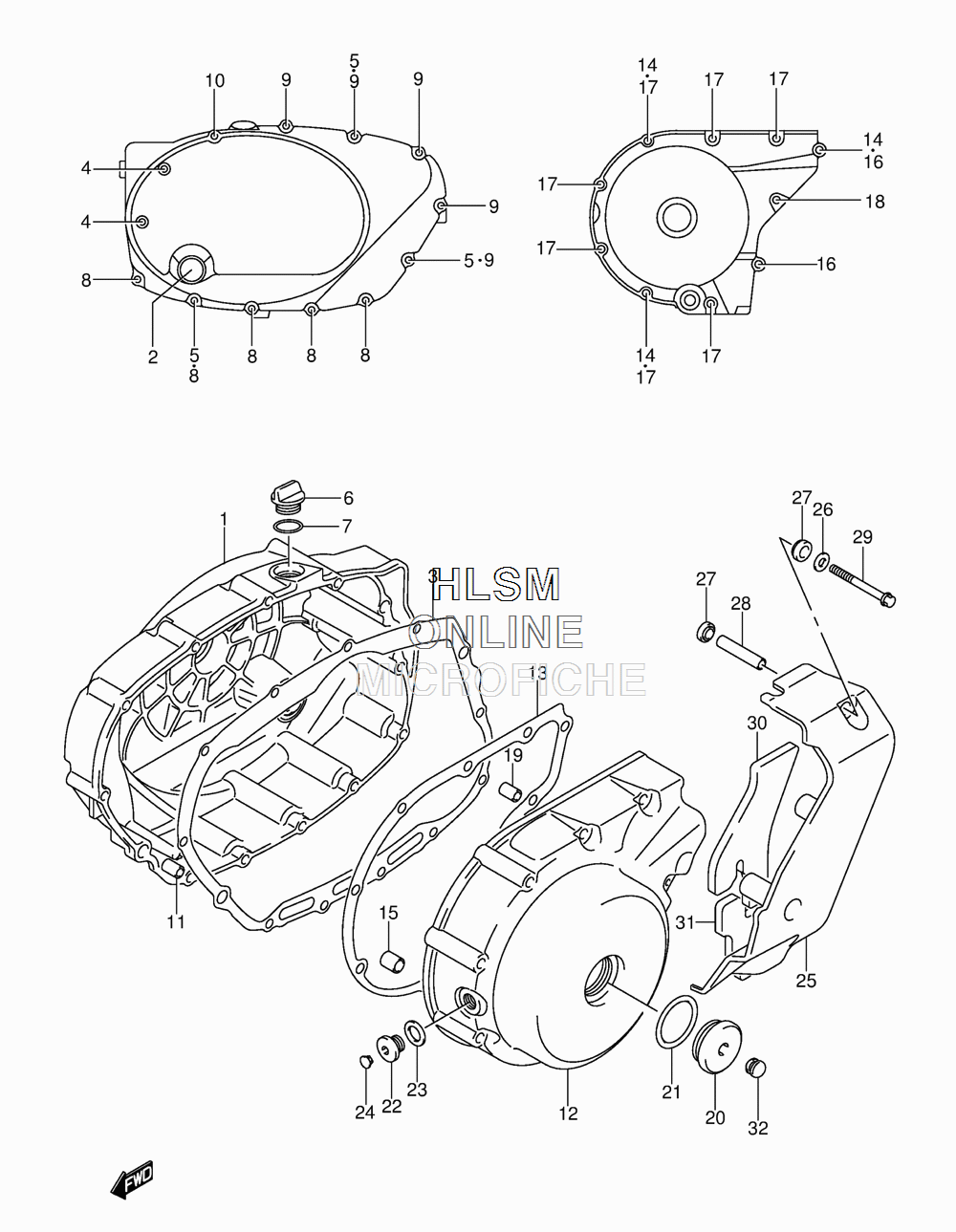

CRANKCASE COVER для Suzuki VZ800 L4 M50 - 2014 года выпуска
-
№АртикулНазвание
-
111340-41F00 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 LENS, OIL LEVELLENS, OIL LEVEL
-
311482-41F00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
409103-06270 BOLT (6X105)BOLT (6X105)
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
611971-25D00 PLUG, OIL FILLERPLUG, OIL FILLER
-
709280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
809103-06213 BOLT (6X30)BOLT (6X30)
-
909103-06238 BOLT (6X50)BOLT (6X50)
-
1009103-06226 BOLT (6X85)BOLT (6X85)
-
1104211-09189 PINPIN
-
1211351-41F10 COVER, GENERATORCOVER, GENERATOR
-
1311483-41F00 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1409168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1509206-11007 PIN (8.4X11X20)PIN (8.4X11X20)
-
1609103-06215 BOLT (6X40)BOLT (6X40)
-
1709103-06216 BOLT (6X55)BOLT (6X55)
-
1809103-06226 BOLT (6X85)BOLT (6X85)
-
1904211-09189 PINPIN
-
2009259-36008 PLUG (36X10)PLUG (36X10)
-
2109280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
2209248-14012 PLUG (14X12)PLUG (14X12)
-
2309168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
2409250-08012 CAP (OD:12)CAP (OD:12)
-
2511361-41F00 COVER, SECONDARY DRIVECOVER, SECONDARY DRIVE
-
2609160-06125 WASHER (6.5X14X1.6)WASHER (6.5X14X1.6)
-
2709161-09005 WASHER (8.7X16X5)WASHER (8.7X16X5)
-
2809180-06280 SPACER (6.5X9X41.3)SPACER (6.5X9X41.3)
-
2909103-06216 BOLT (6X55)BOLT (6X55)
-
3011362-39G00 CUSHION, SEC DRIVE COVER NO.1CUSHION, SEC DRIVE COVER NO.1
-
3111363-39G00 CUSHION, SEC DRIVE COVER NO.2CUSHION, SEC DRIVE COVER NO.2
-
3209250-08013 CAP (OD:12)CAP (OD:12)
