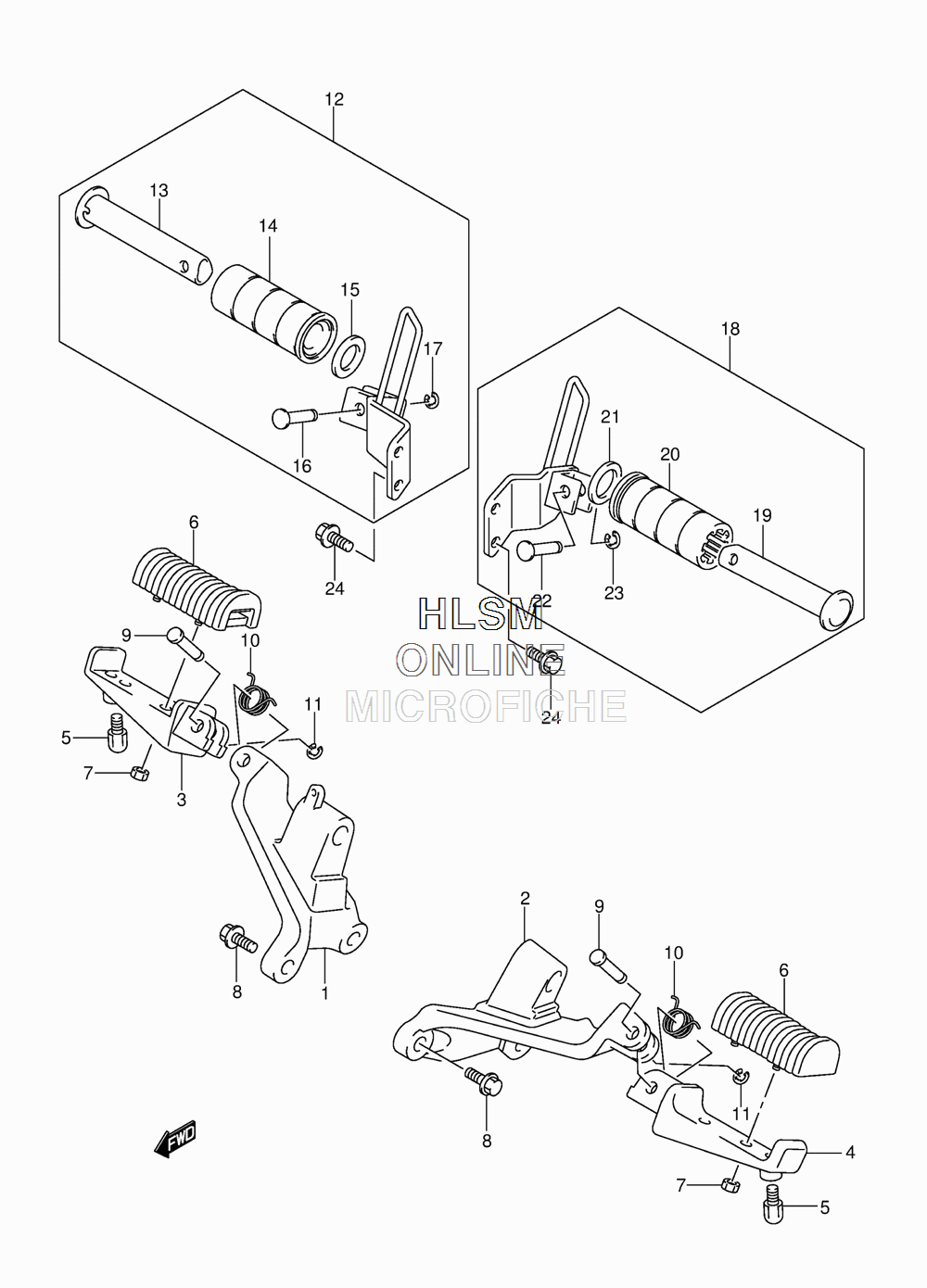

FOOTREST для Suzuki VZ800 L4 M50 - 2014 года выпуска
-
№АртикулНазвание
-
143511-41F00 BRACKET, FRONT FOOTREST RIGHT HANDBRACKET, FRONT FOOTREST RIGHT HAND
-
243521-41F10 BRACKET, FRONT FOOTREST LEFT HANDBRACKET, FRONT FOOTREST LEFT HAND
-
343531-41F01 BAR, FRONT RIGHT HANDBAR, FRONT RIGHT HAND
-
443541-41F01 BAR, FRONT LEFT HANDBAR, FRONT LEFT HAND
-
543576-07D01 BOLT, BANK SENSORBOLT, BANK SENSOR
-
643550-41F00 RUBBER, FRONT FOOTRESTRUBBER, FRONT FOOTREST
-
708319-2106B NUTNUT
-
801580-1030B BOLTBOLT
-
909208-08010 PIN (8X33.2)PIN (8X33.2)
-
1009448-18022 SPRINGSPRING
-
1108332-1106A E RINGE RING
-
1243600-41F50 FOOTREST ASSY, PILLION RIGHT HANDFOOTREST ASSY, PILLION RIGHT HAND
-
1343610-39G00 BARBAR
-
1443612-39G00 RUBBERRUBBER
-
1509160-19024 WASHER (19.5X32X2)WASHER (19.5X32X2)
-
1643636-25D00 PINPIN
-
1708332-1104B E RINGE RING
-
1843700-41F50 FOOTREST ASSY, PILLION LEFT HANDFOOTREST ASSY, PILLION LEFT HAND
-
1943610-39G00 BARBAR
-
2043612-39G00 RUBBERRUBBER
-
2109160-19024 WASHER (19.5X32X2)WASHER (19.5X32X2)
-
2243636-25D00 PINPIN
-
2308332-1104B E RINGE RING
-
2409103-08412 BOLT (8X16)BOLT (8X16)
