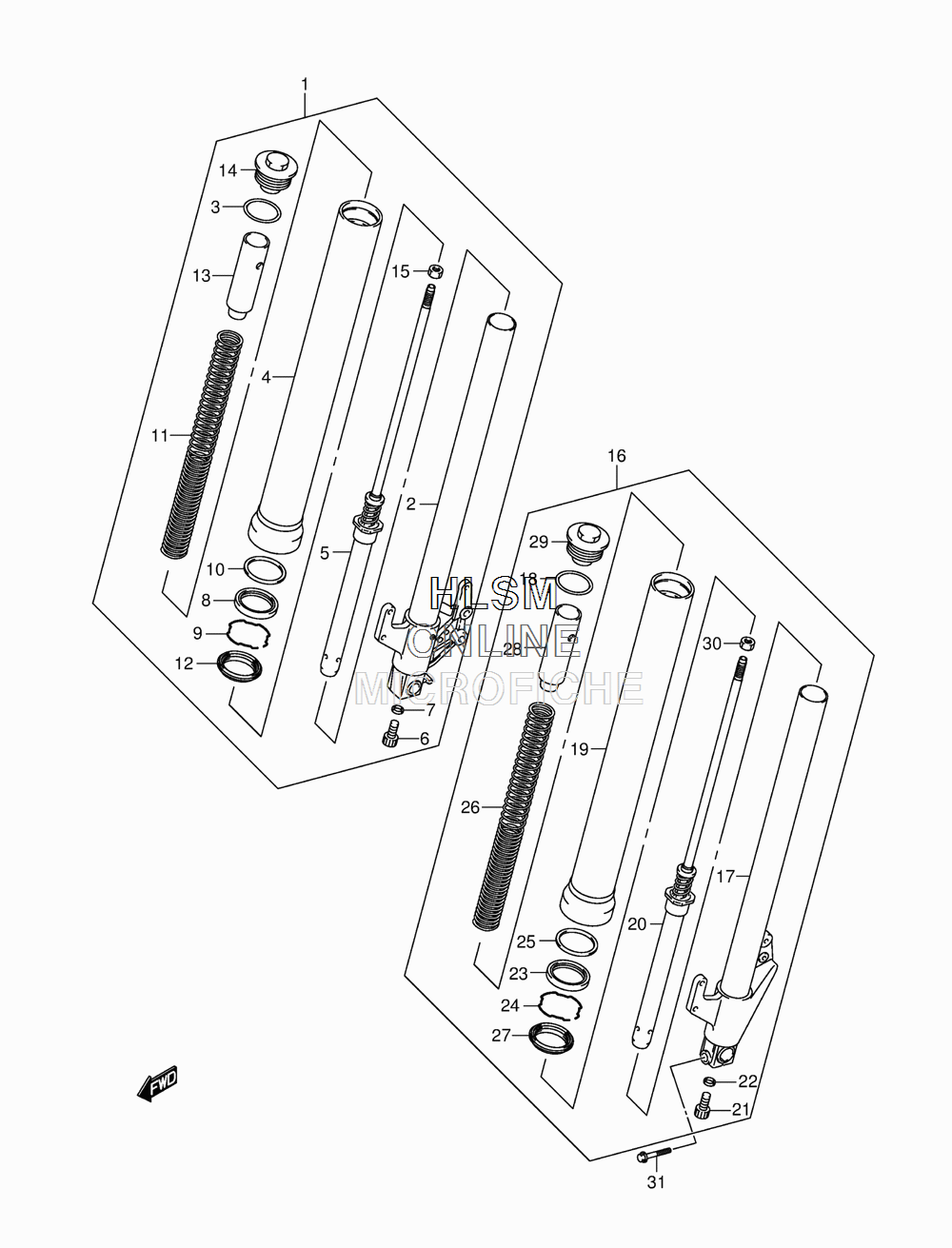

SUSPENSION - FRONT FORK для Suzuki VZ800 L4 M50 - 2014 года выпуска
-
№АртикулНазвание
-
151103-39G20 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251110-39G20 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
351117-39G20 O RINGO RING
-
451130-39G20 TUBE, OUTERTUBE, OUTER
-
551146-39G20 CYLINDERCYLINDER
-
651147-05H00 BOLTBOLT
-
751148-41310 GASKETGASKET
-
851153-10G50 SEAL, OILSEAL, OIL
-
951156-49440 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
1051158-05A00 WASHERWASHER
-
1151171-39G20 SPRING, FRONTSPRING, FRONT
-
1251173-14F00 SEAL, DUSTSEAL, DUST
-
1351176-21H00 SPACER, SPRINGSPACER, SPRING
-
1451351-39G20 CAPCAP
-
1551352-13A60 NUT, RODNUT, ROD
-
1651104-39G20 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
1751120-39G20 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
1851117-39G20 O RINGO RING
-
1951130-39G20 TUBE, OUTERTUBE, OUTER
-
2051146-39G20 CYLINDERCYLINDER
-
2151147-05H00 BOLTBOLT
-
2251148-41310 GASKETGASKET
-
2351153-10G50 SEAL, OILSEAL, OIL
-
2451156-49440 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
2551158-05A00 WASHERWASHER
-
2651171-39G20 SPRING, FRONTSPRING, FRONT
-
2751173-14F00 SEAL, DUSTSEAL, DUST
-
2851176-21H00 SPACER, SPRINGSPACER, SPRING
-
2951351-39G20 CAPCAP
-
3051352-13A60 NUT, RODNUT, ROD
-
3151166-10G10 BOLT, AXLE STOPPERBOLT, AXLE STOPPER
