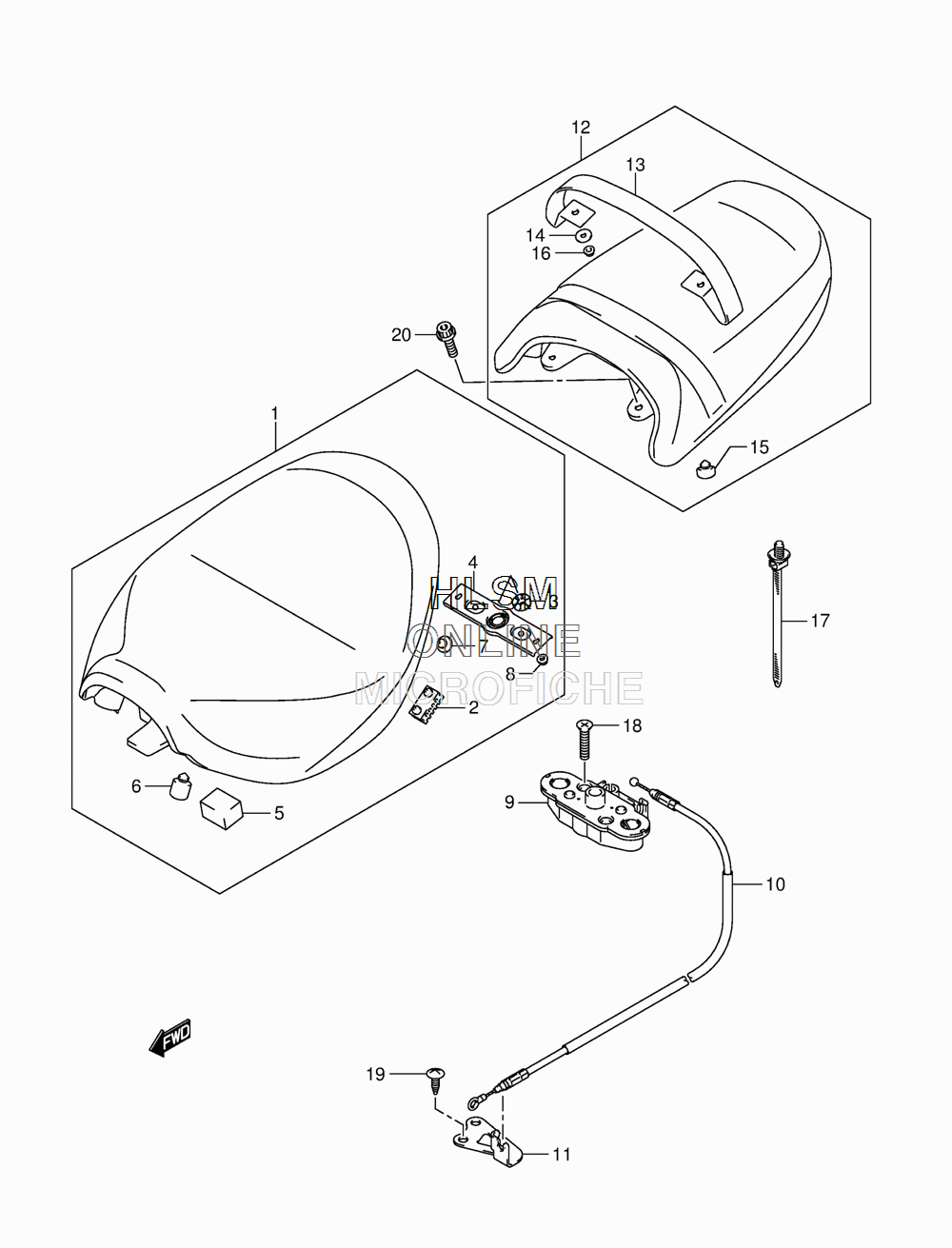

SEAT для Suzuki VZ800 L4 M50 - 2014 года выпуска
-
№АртикулНазвание
-
145100-39G30-48H SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
245149-31300 CUSHION, SEAT MOUNTCUSHION, SEAT MOUNT
-
345213-13601 CUSHION, SEAT LOCK STRIKERCUSHION, SEAT LOCK STRIKER
-
445215-26F00 STRIKER, SEAT LOCKSTRIKER, SEAT LOCK
-
545255-15500 CUSHION, BATTERYCUSHION, BATTERY
-
609321-10034 CUSHIONCUSHION
-
709329-10001 CUSHIONCUSHION
-
808316-1006A NUTNUT
-
945220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1045280-39G00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1145288-39G00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
1245300-39G30-48H SEAT ASSY, PILLION (BLACK)SEAT ASSY, PILLION (BLACK)
-
1345380-39G30-48H BAND, SEAT PILLION (BLACK)BAND, SEAT PILLION (BLACK)
-
1409160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1509321-10002 CUSHION (11.5X22X20)CUSHION (11.5X22X20)
-
1608316-1006A NUTNUT
-
1709407-17403 CLAMP (L:154)CLAMP (L:154)
-
1802122-0630A SCREWSCREW
-
1903541-0516A SCREWSCREW
-
2007120-0616A BOLTBOLT
