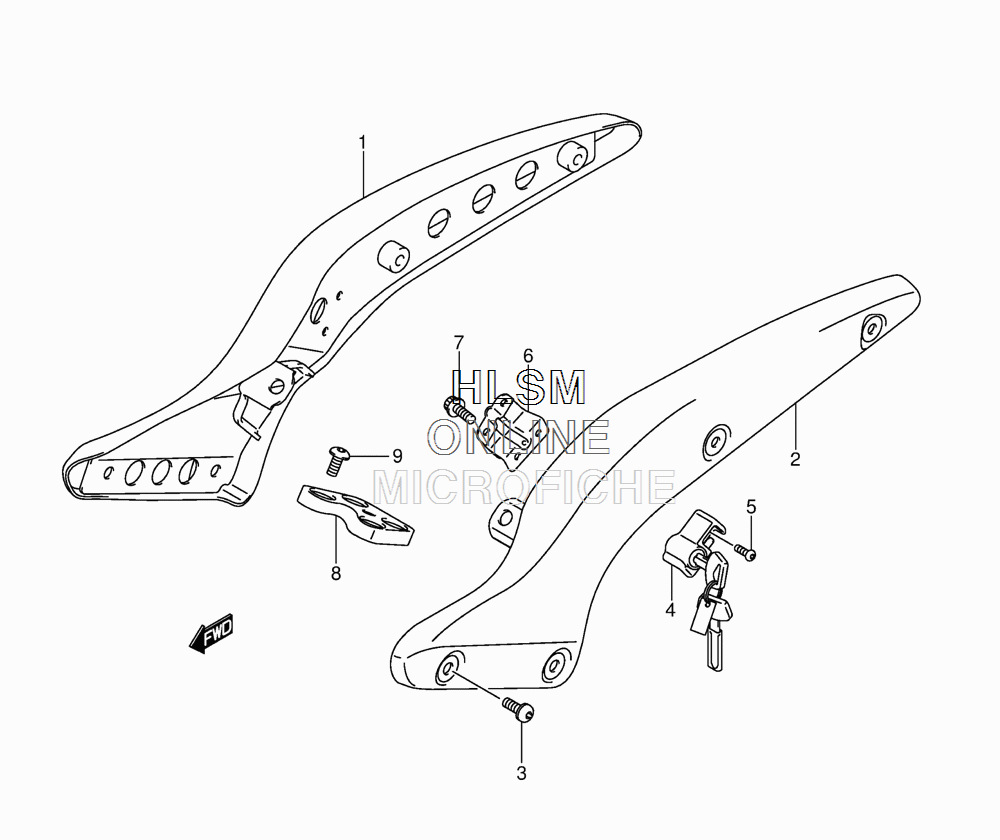

FRAME - REAR для Suzuki VZ800 L4 M50 - 2014 года выпуска
-
№АртикулНазвание
-
141210-39G50 FRAME, REAR RIGHT HANDFRAME, REAR RIGHT HAND
-
241220-39G50 FRAME, REAR LEFT HANDFRAME, REAR LEFT HAND
-
309139-10003 BOLT (10X25)BOLT (10X25)
-
495700-41821 LOCK SET, HELMETLOCK SET, HELMET
-
509139-06089 SCREW (6X14)SCREW (6X14)
-
695710-39G00 BRACKETBRACKET
-
707120-0616A BOLTBOLT
-
841313-41F61 PLATE, FUEL TANKPLATE, FUEL TANK
-
909106-08140 BOLT (8X16)BOLT (8X16)
