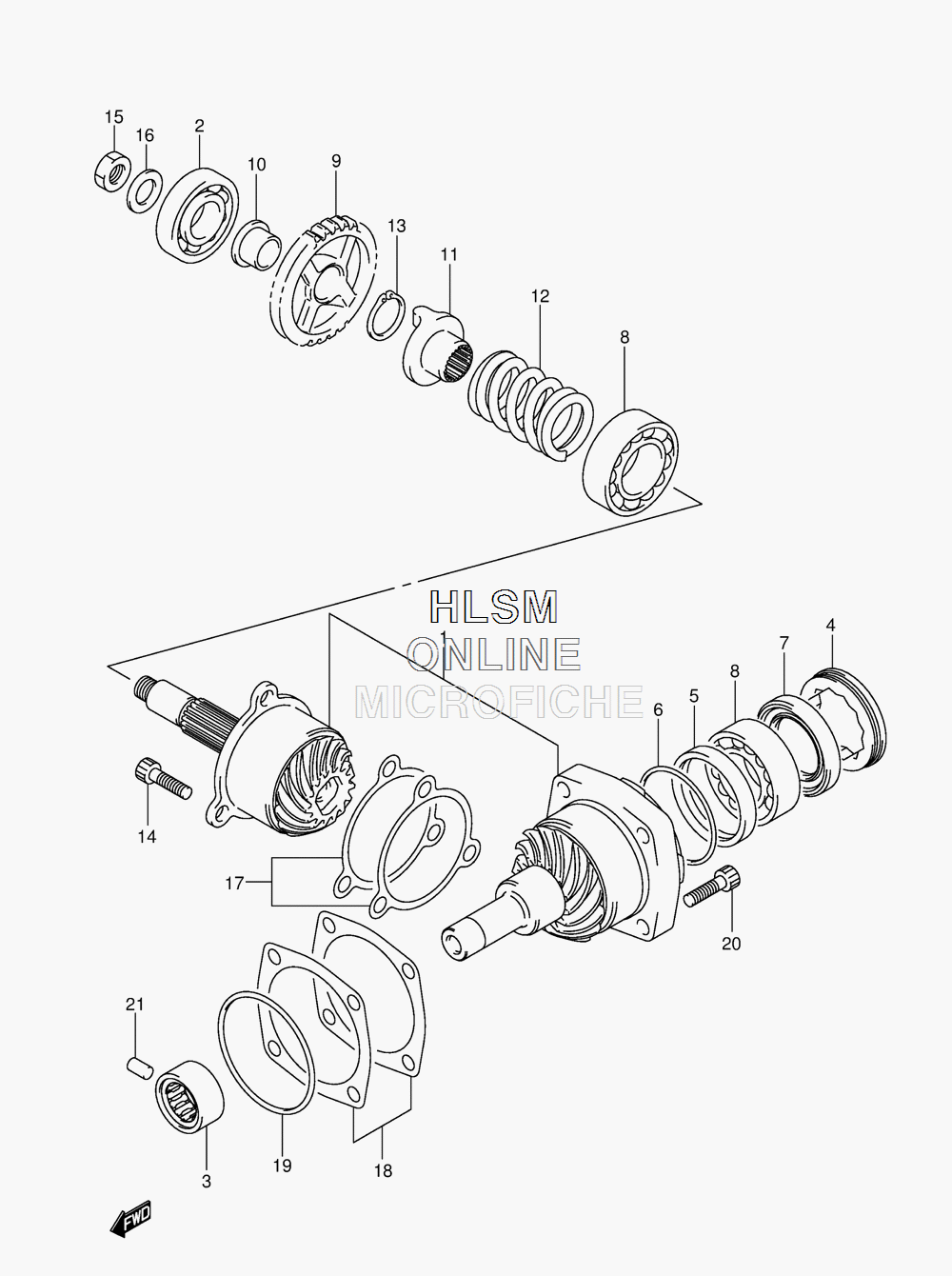

SECONDARY DRIVE GEAR для Suzuki VZ800 L4 M50 - 2014 года выпуска
-
№АртикулНазвание
-
124900-41810 GEAR AND HOUSING SET, SECONDARY (NT:15/17)GEAR AND HOUSING SET, SECONDARY (NT:15/17)
-
209262-20073 BEARING (20X52X15)BEARING (20X52X15)
-
309263-20038 BEARING (20X34X16)BEARING (20X34X16)
-
424942-38A50 STOPPER, BEARINGSTOPPER, BEARING
-
524943-38A50 HOUSING, OIL SEALHOUSING, OIL SEAL
-
609280-60003 O RING (D:1.2,ID:59.6)O RING (D:1.2,ID:59.6)
-
709283-38016 OIL SEAL (38X54X8.5)OIL SEAL (38X54X8.5)
-
809267-30005 BEARING (30X62X23.8)BEARING (30X62X23.8)
-
924631-38A00 GEAR, REDUCTION DRIVEN (NT:30)GEAR, REDUCTION DRIVEN (NT:30)
-
1024632-38A00 BUSHBUSH
-
1124922-38A00 DOG, OUTPUT CAMDOG, OUTPUT CAM
-
1209440-44002 SPRINGSPRING
-
1308331-31219 CIRCLIPCIRCLIP
-
1409106-08097 BOLT (8X25)BOLT (8X25)
-
1509140-16001 NUTNUT
-
1609160-16029 WASHER (16X29X4)WASHER (16X29X4)
-
1724935-38810 SHIM SET, SEC DRIVE GEARSHIM SET, SEC DRIVE GEAR
-
1824945-05810 SHIM SET, SEC DRIVE HOUSINGSHIM SET, SEC DRIVE HOUSING
-
1909280-67004 O RING (D:2.1,ID:66.2)O RING (D:2.1,ID:66.2)
-
2009106-08097 BOLT (8X25)BOLT (8X25)
-
2104221-07129 PIN 7 X 12PIN 7 X 12
