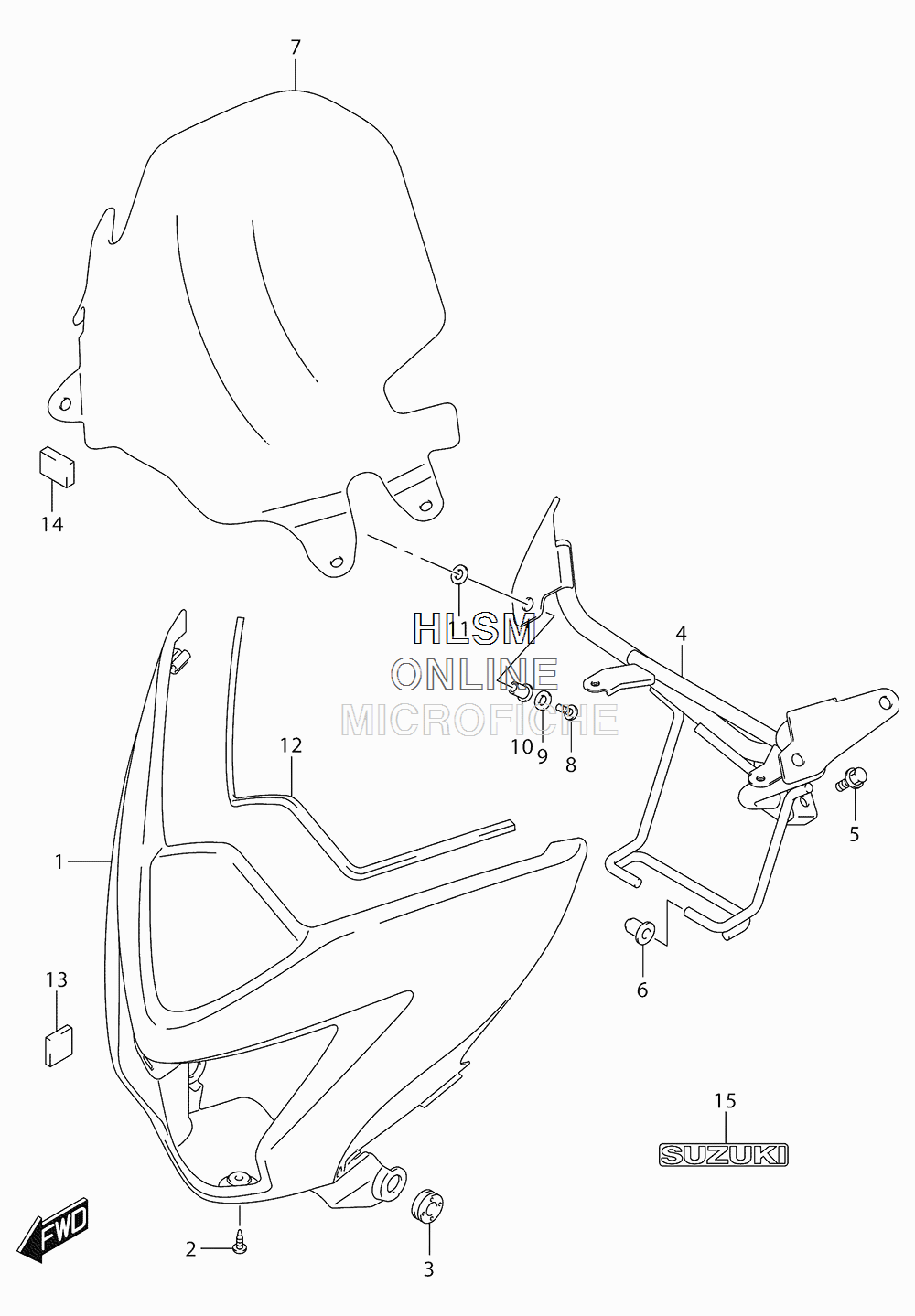

COWLING BODY для Suzuki GW250F L5 - 2015 года выпуска
-
№АртикулНазвание
-
194411-48H01-YAY BODY, COWLING (BLACK) (FOR YAY)BODY, COWLING (BLACK) (FOR YAY)
-
194411-48H10-YSF BODY, COWLING (BLUE) (FOR AGQ)BODY, COWLING (BLUE) (FOR AGQ)
-
203541-0516A SCREWSCREW
-
309320-08028 CUSHIONCUSHION
-
494510-48H11 BRACE, COWLINGBRACE, COWLING
-
501550-0816A BOLTBOLT
-
651827-48H00 CUSHION, BRACECUSHION, BRACE
-
794611-48HA0 WINDSCREENWINDSCREEN
-
802142-0516A SCREWSCREW
-
908322-0105A WASHERWASHER
-
1009159-05019 NUTNUT
-
1194522-48H00 CUSHIONCUSHION
-
1294412-48H00 CUSHIONCUSHION
-
1356327-48H00 CUSHION, BODY COWLING NO.2 (CUT AS REQUIRED)CUSHION, BODY COWLING NO.2 (CUT AS REQUIRED)
-
1456327-48H00 CUSHION, WINDSCREEN NO.2CUSHION, WINDSCREEN NO.2
-
1568281-48H00-YMD EMBLEM, SUZUKI (SILVER)EMBLEM, SUZUKI (SILVER)
