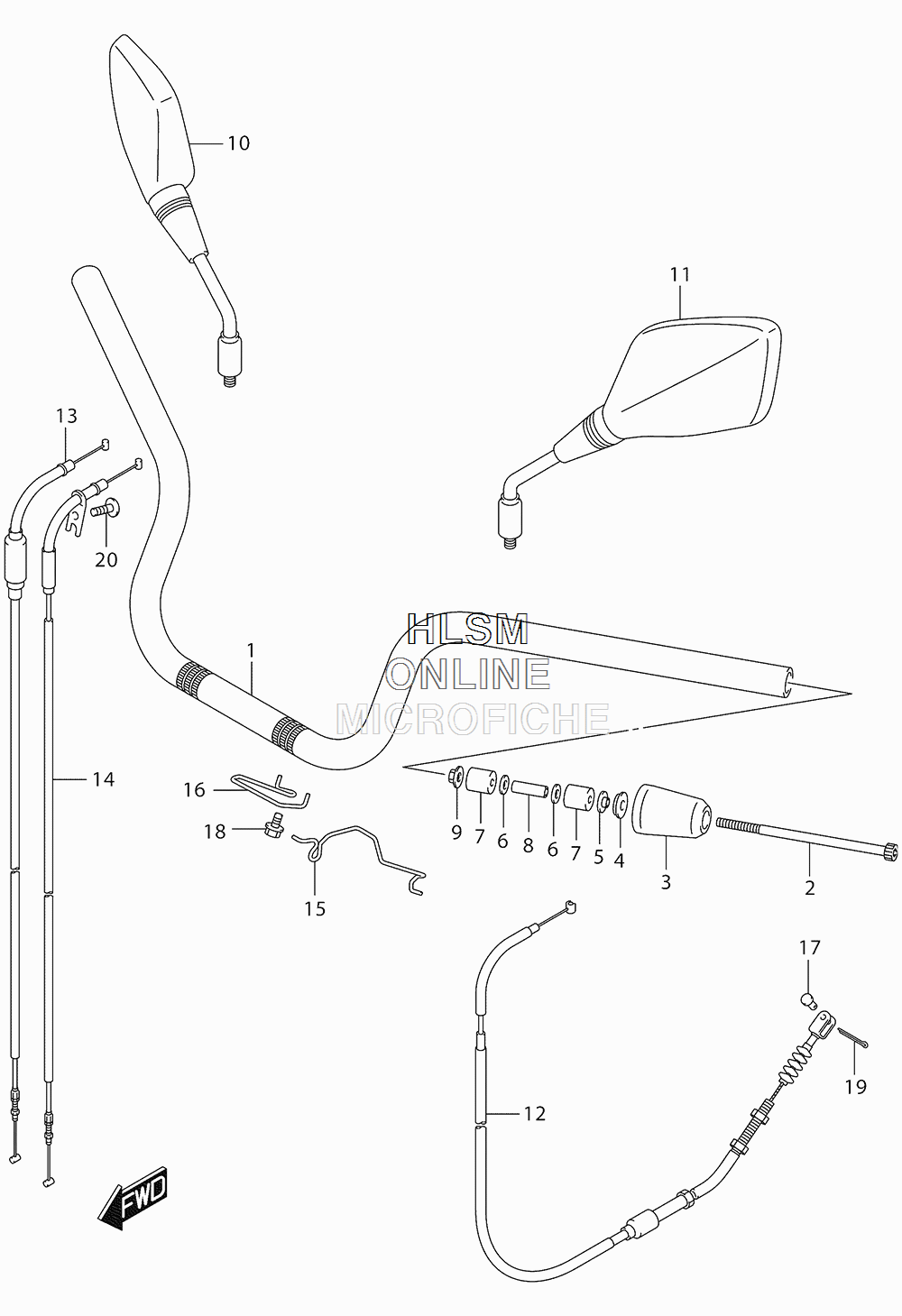

HANDLEBAR для Suzuki GW250F L5 - 2015 года выпуска
-
№АртикулНазвание
-
156111-48H40 HANDLEBARHANDLEBAR
-
256277-48H00 BOLT, HANDLE BALANCERBOLT, HANDLE BALANCER
-
356278-48H10 BALANCER, HANDLEBARBALANCER, HANDLEBAR
-
456272-45F10 CUSHION, HANDLE BALANCERCUSHION, HANDLE BALANCER
-
509169-06071 WASHERWASHER
-
609160-06126 WASHER (6.5X14X2)WASHER (6.5X14X2)
-
756272-25H00 EXPANDER, BALANCER INNEREXPANDER, BALANCER INNER
-
856276-45F00 SPACER, EXPANDERSPACER, EXPANDER
-
909159-06024 NUTNUT
-
1056500-48H10 MIRROR ASSY, REAR VIEW (RH)MIRROR ASSY, REAR VIEW (RH)
-
1156600-48H10 MIRROR ASSY, REAR VIEW (LH)MIRROR ASSY, REAR VIEW (LH)
-
1258200-48HB0 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1358300-48HC0 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1458300-48HD0 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1558621-48H01 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1658621-48H21 GUIDE, CABLEGUIDE, CABLE
-
1709200-06071 PINPIN
-
1801550-0612B BOLTBOLT
-
1904111-2015A COTTER PINCOTTER PIN
-
2002142-0510B SCREWSCREW
