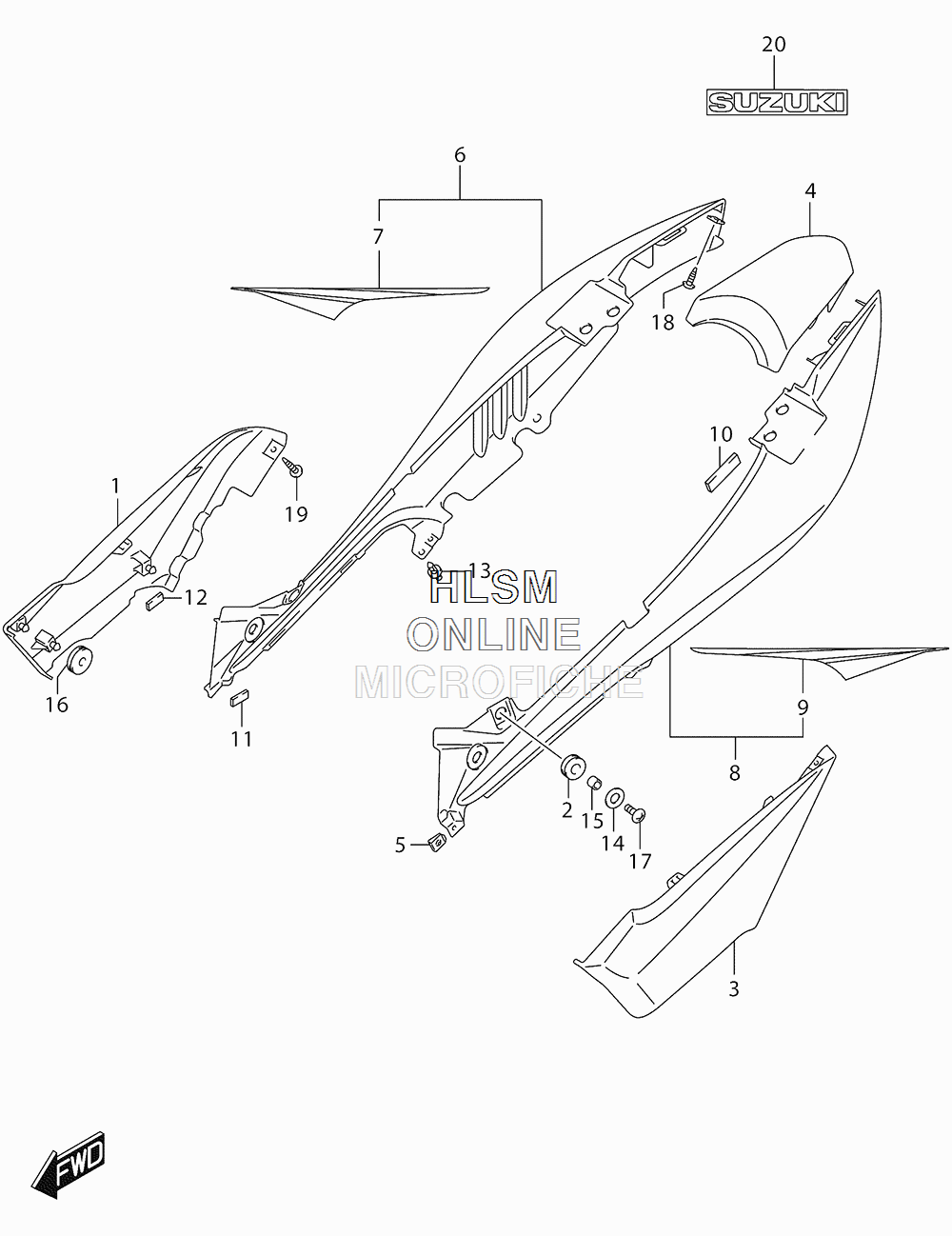

FRAME COVER (FOR AGQ) для Suzuki GW250F L5 - 2015 года выпуска
-
№АртикулНазвание
-
147111-48H00-YKV COVER, FRAME RIGHT HAND (BLACK)COVER, FRAME RIGHT HAND (BLACK)
-
247161-48H00 CUSHION, COVER UPPERCUSHION, COVER UPPER
-
347211-48H00-YKV COVER, FRAME LEFT HAND (BLACK)COVER, FRAME LEFT HAND (BLACK)
-
447311-48H00-YWW COVER, FRAME UPPER CENTER (WHITE)COVER, FRAME UPPER CENTER (WHITE)
-
547399-48H00 NUTNUT
-
647830-48H00-YWW COVER, FRAME UPPER RIGHT HAND (WHITE)COVER, FRAME UPPER RIGHT HAND (WHITE)
-
768135-48H10-AGQ ...TAPE, FRAME COVER RIGHT HAND (BLUE/WHITE)...TAPE, FRAME COVER RIGHT HAND (BLUE/WHITE)
-
847840-48H00-YWW COVER, FRAME UPPER LEFT HAND (WHITE)COVER, FRAME UPPER LEFT HAND (WHITE)
-
968145-48H10-AGQ ...TAPE, FRAME COVER LEFT HAND (BLUE/WHITE)...TAPE, FRAME COVER LEFT HAND (BLUE/WHITE)
-
1047845-48H00 CUSHION, FRAME COVER UPR RRCUSHION, FRAME COVER UPR RR
-
1147846-48H00 CUSHION, COVER UPPERCUSHION, COVER UPPER
-
1247846-48H00 CUSHION, COVER FRONTCUSHION, COVER FRONT
-
1348292-32GH0 CLIP, COVER UPPERCLIP, COVER UPPER
-
1409160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1509180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1609320-08018 CUSHIONCUSHION
-
1702142-0620A SCREWSCREW
-
1803541-0516A SCREWSCREW
-
1903541-0516A SCREWSCREW
-
2068281-48H60-FJA EMBLEM,''SUZUKI'' (SILVER/BLACK)EMBLEM,''SUZUKI'' (SILVER/BLACK)
