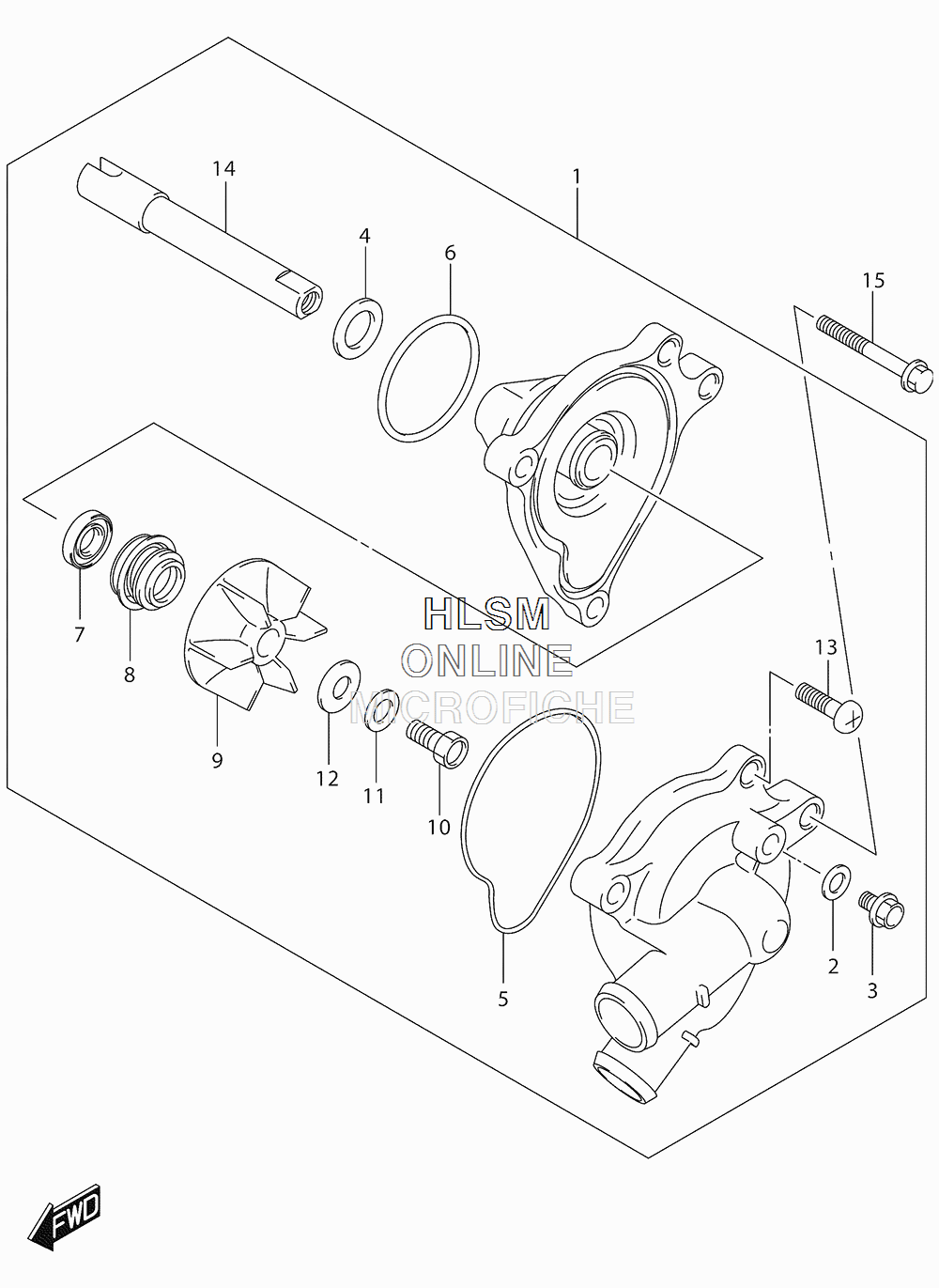

WATER PUMP для Suzuki GW250F L5 - 2015 года выпуска
-
№АртикулНазвание
-
117400-48H00 PUMP ASSY, WATERPUMP ASSY, WATER
-
217413-28C10 ...GASKET...GASKET
-
317415-43D00 ...BOLT, BLEEDER...BOLT, BLEEDER
-
417432-07G00 ...WASHER...WASHER
-
517435-12C00 ...O RING, WATER PUMP CASE...O RING, WATER PUMP CASE
-
617435-33400 ...O RING...O RING
-
717461-01H00 ...OIL SEAL...OIL SEAL
-
817470-02F10 ...SEAL, WATER PUMP SHAFT...SEAL, WATER PUMP SHAFT
-
917491-12C00 ...IMPELLER, WATER PUMP...IMPELLER, WATER PUMP
-
1009100-06099 ...BOLT (6X13)...BOLT (6X13)
-
1109164-06006 ...WASHER...WASHER
-
1209168-06025 ...GASKET (6X15X2.2)...GASKET (6X15X2.2)
-
1302112-0616A ...SCREW...SCREW
-
1417511-48H00 ...SHAFT...SHAFT
-
1501547-0635A BOLTBOLT
