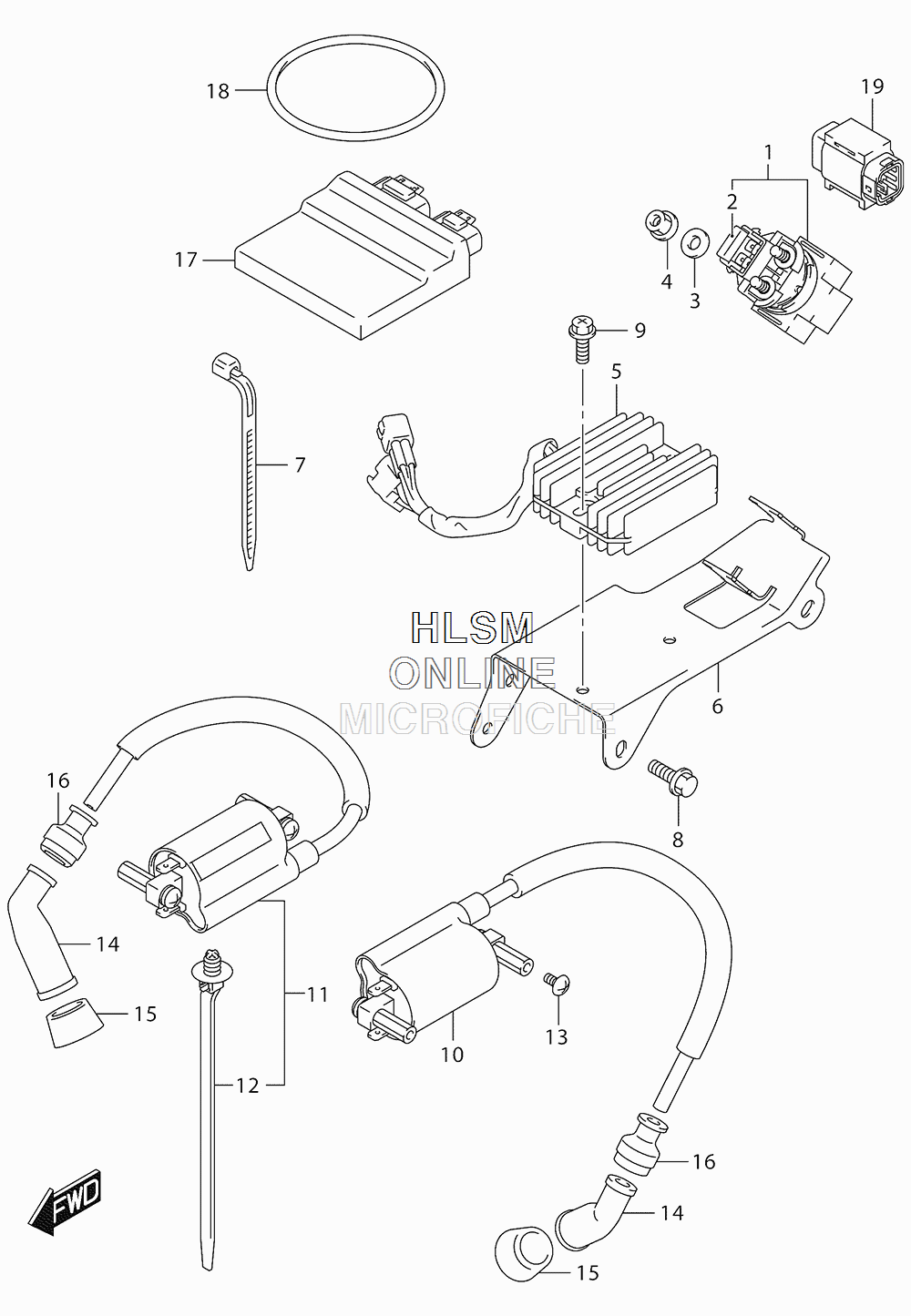

ELECTRICAL для Suzuki GW250F L5 - 2015 года выпуска
-
№АртикулНазвание
-
131800-48H00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
209481-30101 ...FUSE (30A)...FUSE (30A)
-
309160-07019 WASHER (7.5X13X1)WASHER (7.5X13X1)
-
408361-3506A NUTNUT
-
532800-48H00 RECTIFIER ASSYRECTIFIER ASSY
-
632830-48H10 BRACKET, RECTIFIER FITTINGBRACKET, RECTIFIER FITTING
-
736990-32G10 CLAMP, RECTIFIER LEADCLAMP, RECTIFIER LEAD
-
801550-0612A BOLTBOLT
-
902162-0625A SCREWSCREW
-
1033410-48H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1133420-48H00 COIL ASSY, IGNITION NO.2COIL ASSY, IGNITION NO.2
-
1209407-17403 ...CLAMP (L:154)...CLAMP (L:154)
-
1308316-1005B NUTNUT
-
1433510-48H00 CAP, SPARK PLUGCAP, SPARK PLUG
-
1533541-48H00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1633542-48H00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1732920-48H61 CONTROL UNIT, FICONTROL UNIT, FI
-
1832925-48H00 BAND, FI CONTROL UNITBAND, FI CONTROL UNIT
-
1933960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
