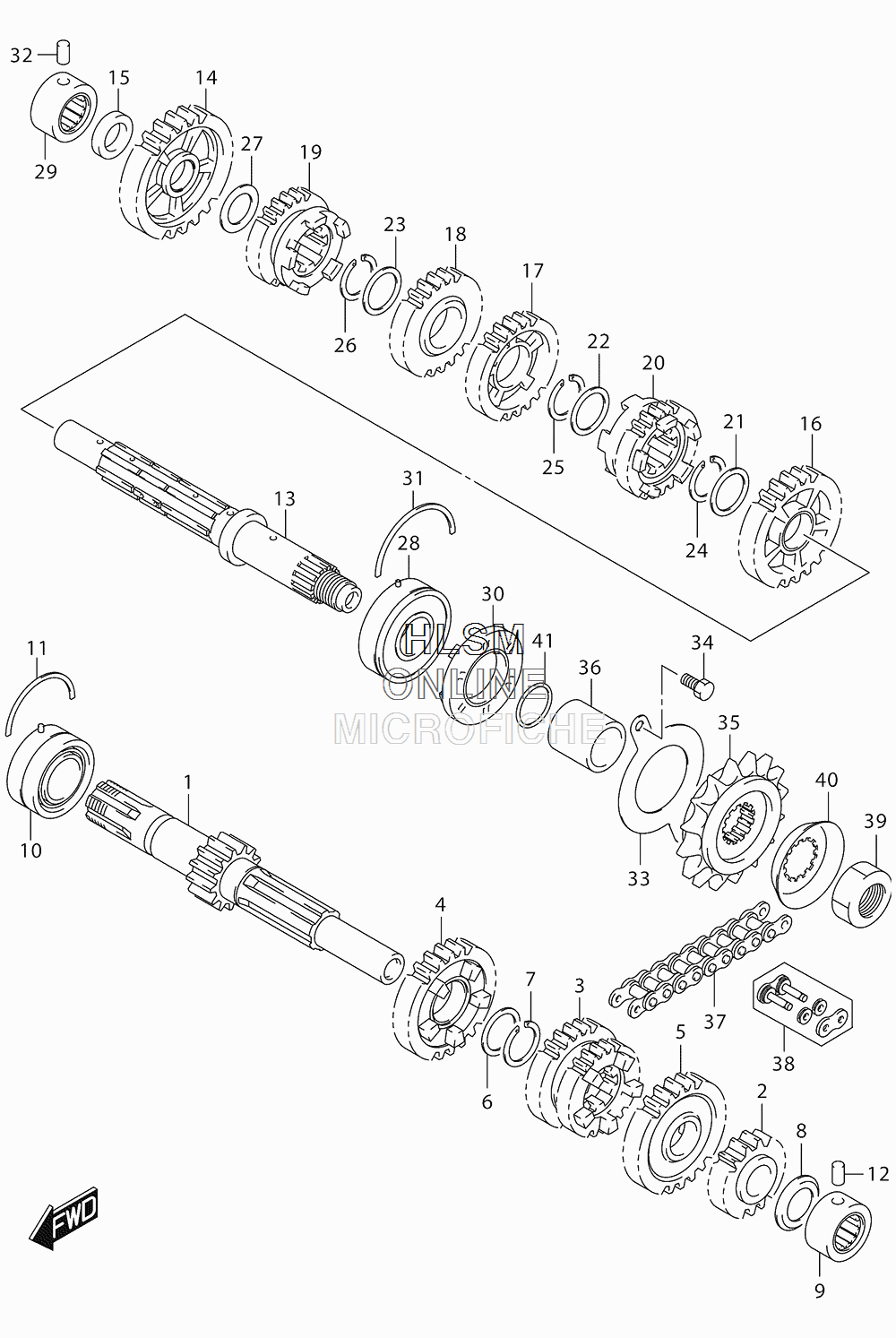

TRANSMISSION для Suzuki GW250F L5 - 2015 года выпуска
-
№АртикулНазвание
-
124120-48H00 SHAFT, COUNTER (NT:12)SHAFT, COUNTER (NT:12)
-
224221-48H00 GEAR, 2ND DRIVE (NT:17)GEAR, 2ND DRIVE (NT:17)
-
324231-48H00 GEAR, 3RD AND 4TH DRIVE (NT:22/23)GEAR, 3RD AND 4TH DRIVE (NT:22/23)
-
424251-48H00 GEAR, 5TH DRIVE (NT:22)GEAR, 5TH DRIVE (NT:22)
-
524261-48H10 GEAR, 6TH DRIVE (NT:26)GEAR, 6TH DRIVE (NT:26)
-
609181-22017 SHIM (22X28X1)SHIM (22X28X1)
-
709380-22016 CIRCLIPCIRCLIP
-
824271-48H00 SEAL, SHAFT LEFT HAND BEARINGSEAL, SHAFT LEFT HAND BEARING
-
909263-17050 BEARING (17X30X16)BEARING (17X30X16)
-
1009267-22001 BEARING (22X47X20.6)BEARING (22X47X20.6)
-
1109390-47008 C-RINGC-RING
-
1204221-06129 PINPIN
-
1324130-48H00 SHAFT, DRIVESHAFT, DRIVE
-
1424310-48H00 GEAR, 1ST DRIVEN (NT:29)GEAR, 1ST DRIVEN (NT:29)
-
1524313-48H00 SPACER, 1ST DRIVEN GEARSPACER, 1ST DRIVEN GEAR
-
1624320-48H00 GEAR, 2ND DRIVEN (NT:26)GEAR, 2ND DRIVEN (NT:26)
-
1724331-48H00 GEAR, 3RD DRIVEN (NT:26)GEAR, 3RD DRIVEN (NT:26)
-
1824341-48H00 GEAR, 4TH DRIVEN (NT:24)GEAR, 4TH DRIVEN (NT:24)
-
1924351-48H00 GEAR, 5TH DRIVEN (NT:20)GEAR, 5TH DRIVEN (NT:20)
-
2024361-48H00 GEAR, 6TH DRIVEN (NT:21)GEAR, 6TH DRIVEN (NT:21)
-
2109181-22017 SHIM (22X28X1)SHIM (22X28X1)
-
2209181-22017 SHIM (22X28X1)SHIM (22X28X1)
-
2309181-22017 SHIM (22X28X1)SHIM (22X28X1)
-
2409380-22016 CIRCLIPCIRCLIP
-
2509380-22016 CIRCLIPCIRCLIP
-
2609380-22016 CIRCLIPCIRCLIP
-
2708211-17262 WASHERWASHER
-
2809262-22039 BEARING (22X56X16)BEARING (22X56X16)
-
2909263-17050 BEARING (17X30X16)BEARING (17X30X16)
-
3009283-30L01 OIL SEAL (30X56X9.5)OIL SEAL (30X56X9.5)
-
3109390-56002 C-RINGC-RING
-
3204221-06129 PINPIN
-
3324741-48H00 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
3401500-0612A BOLTBOLT
-
3527510-48H10 SPROCKET, ENGINE (NT:14)SPROCKET, ENGINE (NT:14)
-
3627531-48H00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
3727600-48H11-116 CHAIN ASSY, DRIVE (DID 520VF)CHAIN ASSY, DRIVE (DID 520VF)
-
3727600-48H20-116 CHAIN ASSY, DRIVE (RK 520KRO)CHAIN ASSY, DRIVE (RK 520KRO)
-
3827620-48H10 JOINT SET, CHAIN(DID) (OPT)JOINT SET, CHAIN(DID) (OPT)
-
3827620-48H20 JOINT SET, CHAIN(RK) (OPT)JOINT SET, CHAIN(RK) (OPT)
-
3927521-48H00 NUT, ENGINE SPROCKETNUT, ENGINE SPROCKET
-
4027513-48H00 WASHER, ENGINE SPROCKETWASHER, ENGINE SPROCKET
-
4109280-21008 O RING (D:2.5,ID:21)O RING (D:2.5,ID:21)
