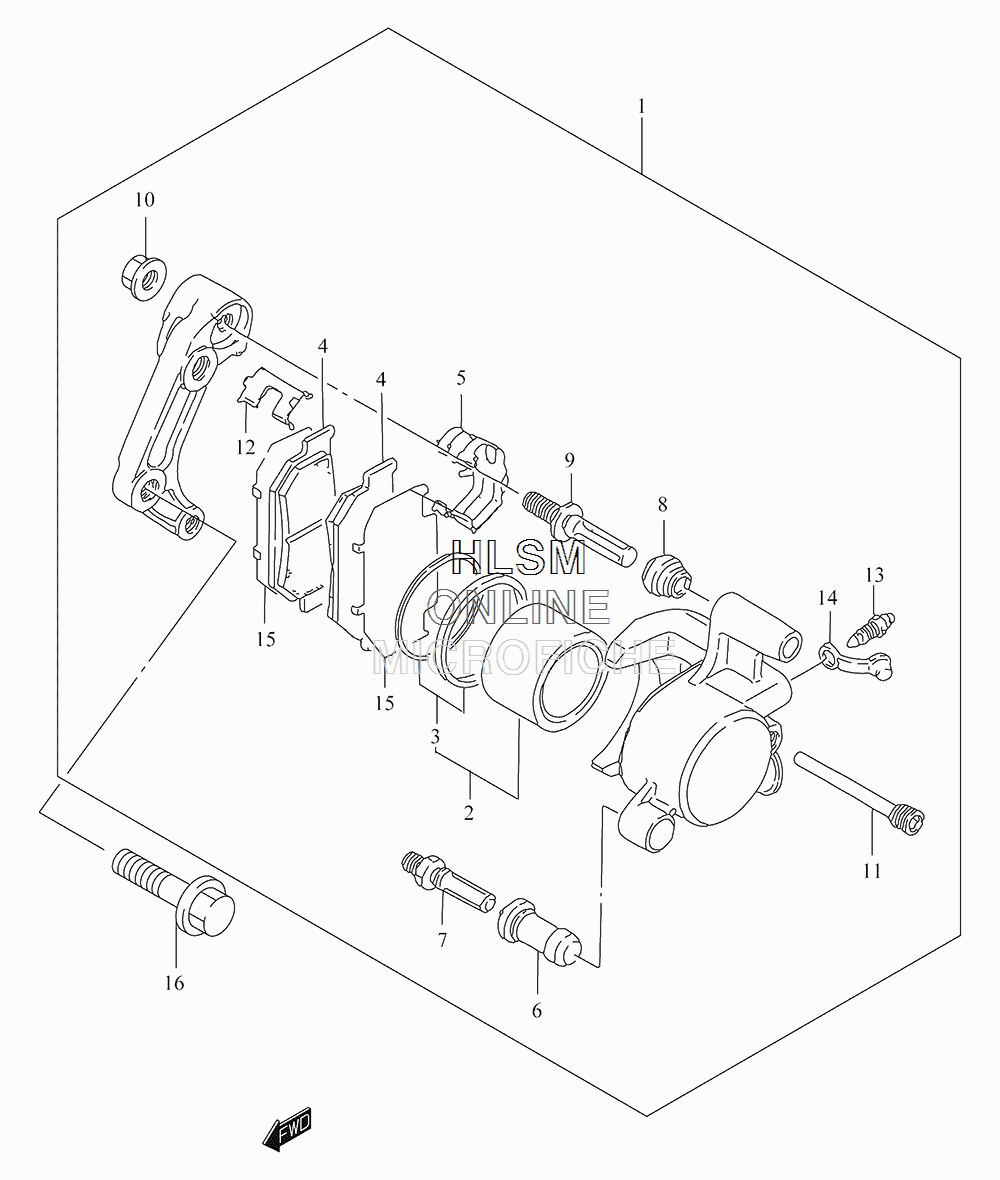

BRAKE - FRONT CALIPER для Suzuki GZ250 L5 MARAUDER - 2015 года выпуска
-
№АртикулНазвание
-
159300-12FA1 CALIPER ASSY, FRONT LEFT HANDCALIPER ASSY, FRONT LEFT HAND
-
259300-0AE00 ...PISTON SET...PISTON SET
-
359300-0AE10 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459300-0AE20 ...PAD SET...PAD SET
-
559315-0AEA0 ...SPRING...SPRING
-
659386-0AE00 ...BOOT...BOOT
-
759382-0AE00 ...PIN...PIN
-
859303-0AE00 ...BOOT...BOOT
-
959305-0AE00 ...BOLT...BOLT
-
10D8316-1008B ...NUT...NUT
-
1159345-0AE00 ...PIN...PIN
-
1259316-0AE00 ...RETAINER...RETAINER
-
1359121-0AE00 ...BLEEDER...BLEEDER
-
1459122-0AE00 ...CAP...CAP
-
1559371-0AE00 ...SHIM...SHIM
-
1601550-1040B BOLTBOLT
