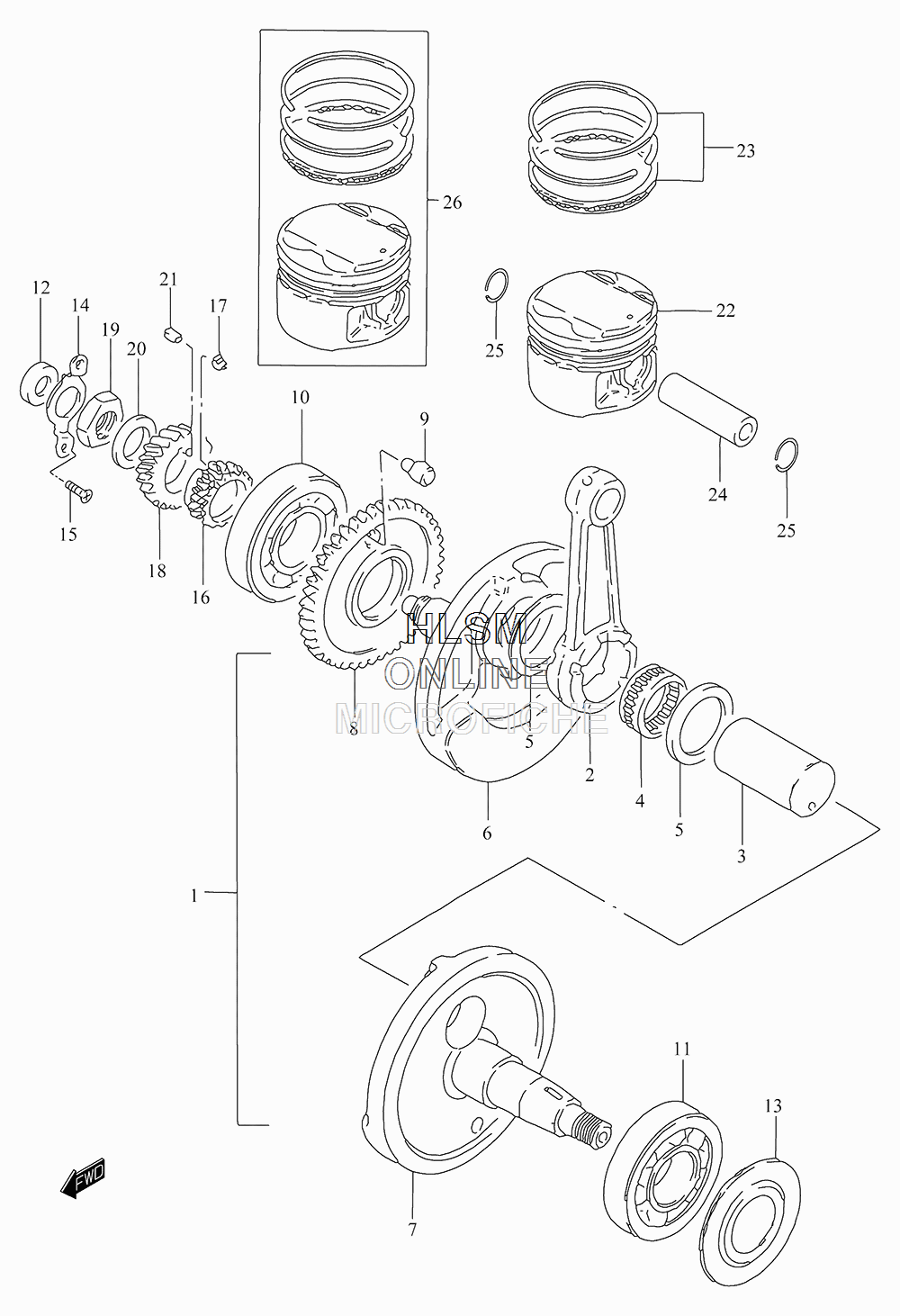

CRANKSHAFT W/ PISTON для Suzuki GZ250 L5 MARAUDER - 2015 года выпуска
-
№АртикулНазвание
-
112200-26G01 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212161-38201 ...ROD, CONNECTING...ROD, CONNECTING
-
312211-38211 ...PIN, CRANK...PIN, CRANK
-
409263-31012-0B0 ...BEARING (31X39X21)...BEARING (31X39X21)
-
509160-31002 ...WASHER (31X48.5X1)...WASHER (31X48.5X1)
-
612221-38200 ...CRANKSHAFT, RIGHT HAND...CRANKSHAFT, RIGHT HAND
-
712261-26G00 ...CRANKSHAFT, LEFT HAND...CRANKSHAFT, LEFT HAND
-
812661-38202 ...GEAR, CRANK BALANCER DRIVE...GEAR, CRANK BALANCER DRIVE
-
909209-12006 ...PIN...PIN
-
1009262-30077 BEARING (30X72X19) (RIGHT HAND)BEARING (30X72X19) (RIGHT HAND)
-
1109262-35028 BEARING (35X80X21) (LEFT HAND)BEARING (35X80X21) (LEFT HAND)
-
1209282-14001 OIL SEAL (14X26X6)OIL SEAL (14X26X6)
-
1312521-38300 WASHER, CRANKSHAFT OIL SEALINGWASHER, CRANKSHAFT OIL SEALING
-
1412548-38200 RETAINER, CRANKSHAFT OIL SEALRETAINER, CRANKSHAFT OIL SEAL
-
1502122-0510B SCREWSCREW
-
1612731-38200 SPROCKET, CAM CHAIN DRIVE (NT:SPROCKET, CAM CHAIN DRIVE (NT:
-
1712749-32400 KEY, SPROCKETKEY, SPROCKET
-
1821111-38200 GEAR, PRIMARY DRIVE (NT:21)GEAR, PRIMARY DRIVE (NT:21)
-
1909140-20013 NUTNUT
-
2009164-20003 WASHERWASHER
-
2109421-07002 KEYKEY
-
2212111-38201-0F0 PISTONPISTON
-
2312140-49280 RING SET, PISTONRING SET, PISTON
-
2412151-15501 PIN, PISTONPIN, PISTON
-
2509381-18002 SNAP RINGSNAP RING
-
2612100-38210-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
