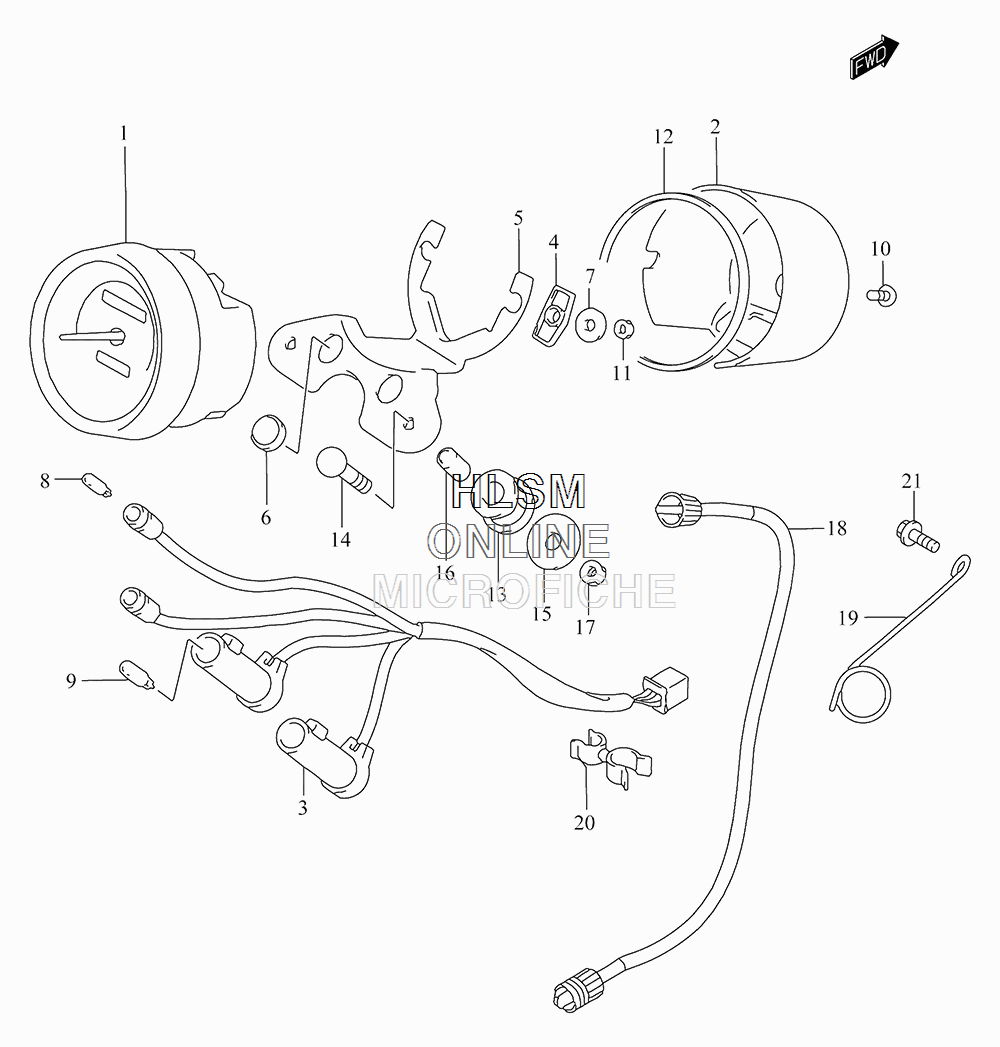

SPEEDOMETER (CALIFORNIA ONLY) для Suzuki GZ250 L5 MARAUDER - 2015 года выпуска
-
№АртикулНазвание
-
134110-13F40 SPEEDOMETER (MILE/KILO)SPEEDOMETER (MILE/KILO)
-
234111-13F30 COVER, UNDERCOVER, UNDER
-
334170-13F30 SOCKET ASSYSOCKET ASSY
-
434191-25D00 CUSHION, DAMPERCUSHION, DAMPER
-
534950-13F30 BRACKET, METERBRACKET, METER
-
636321-13F30 LENS, NEUTRAL (GREEN)LENS, NEUTRAL (GREEN)
-
734181-45C10 WASHER (15X5.3X1)WASHER (15X5.3X1)
-
809471-12028 BULB (12V, 3.4W)BULB (12V, 3.4W)
-
909471-12108 BULB (12V, 1.7W)BULB (12V, 1.7W)
-
1003541-1412A SCREWSCREW
-
1108310-00058 NUTNUT
-
1234288-13F30 PACKINGPACKING
-
1334956-31001 CUSHION. METER BRACKETCUSHION. METER BRACKET
-
1409107-06003 BOLT (6X30)BOLT (6X30)
-
1509160-06136 WASHER (6.5X28X1.6)WASHER (6.5X28X1.6)
-
1609180-06335 SPACER (6.5X10X16.5)SPACER (6.5X10X16.5)
-
1708310-0006B NUTNUT
-
1834910-12F00 CABLE ASSY, SPEEDOMETERCABLE ASSY, SPEEDOMETER
-
1934938-37000 GUIDE, SPEEDOMETER CABLEGUIDE, SPEEDOMETER CABLE
-
2009408-00119 CLAMP, CABLE AND BRAKE HOSECLAMP, CABLE AND BRAKE HOSE
-
21D1557-0612B BOLTBOLT
