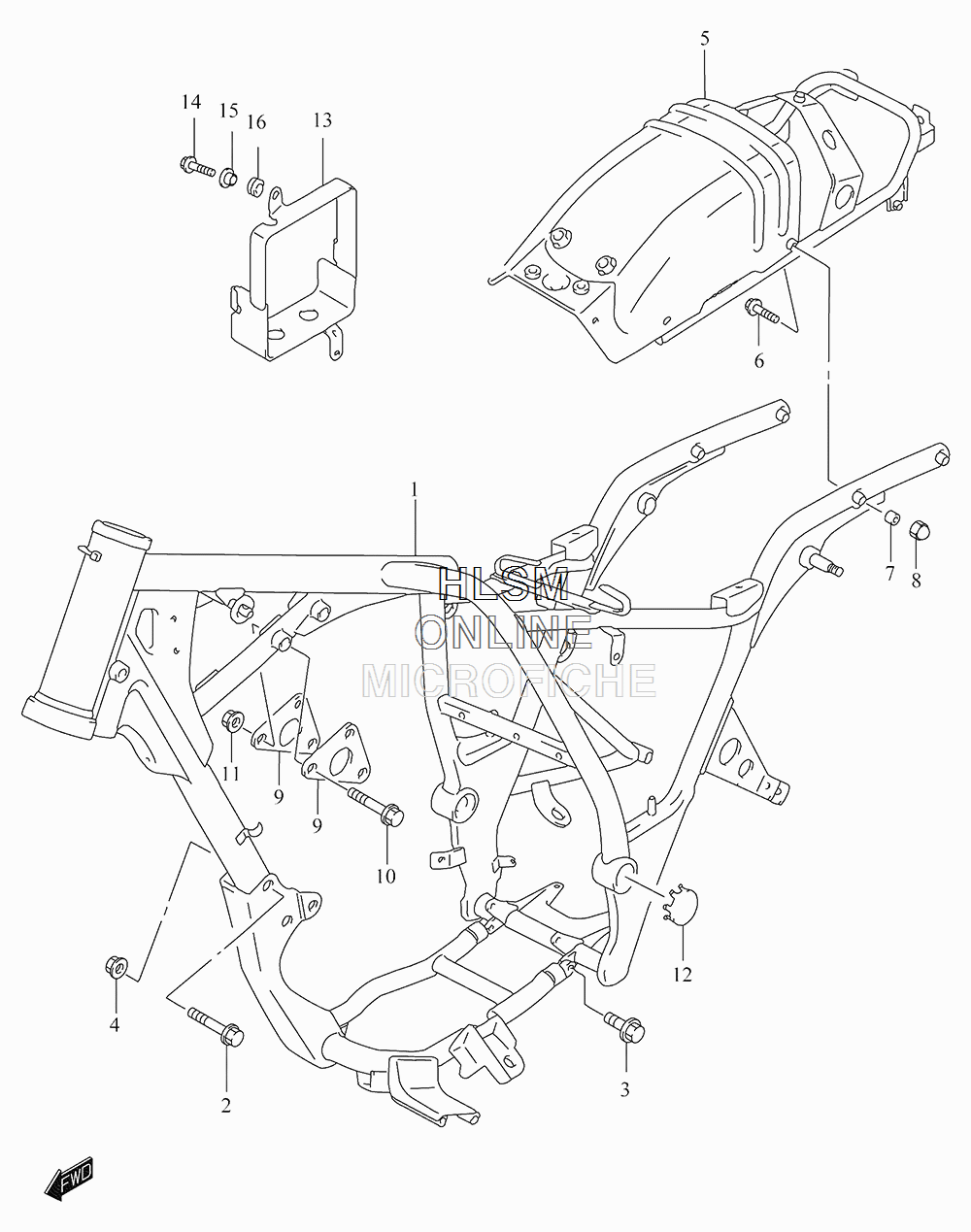

FRAME для Suzuki GZ250 L5 MARAUDER - 2015 года выпуска
-
№АртикулНазвание
-
141100-13F01-EE3 FRAME (BLACK)FRAME (BLACK)
-
201550-0860B BOLTBOLT
-
301550-0825B BOLTBOLT
-
408316-1008B NUT, FRONTNUT, FRONT
-
541580-12FA0-EE3 BRACE, REAR FRAMEBRACE, REAR FRAME
-
601550-0855B BOLTBOLT
-
709180-08208 SPACERSPACER
-
808313-20087 NUT, BRACENUT, BRACE
-
941991-13FA0-EE3 PLATE, ENGINE MOUNT UPPERPLATE, ENGINE MOUNT UPPER
-
1009103-08289 BOLT (8X50)BOLT (8X50)
-
1108319-3108A NUTNUT
-
1261222-38A01 CAP, PIVOTCAP, PIVOT
-
1341540-12FA0-EE3 HOLDER, BATTERY (BLACK)HOLDER, BATTERY (BLACK)
-
1401550-0616B BOLTBOLT
-
1509169-06065 WASHERWASHER
-
1609320-08007 CUSHION (8.5X20X8)CUSHION (8.5X20X8)
