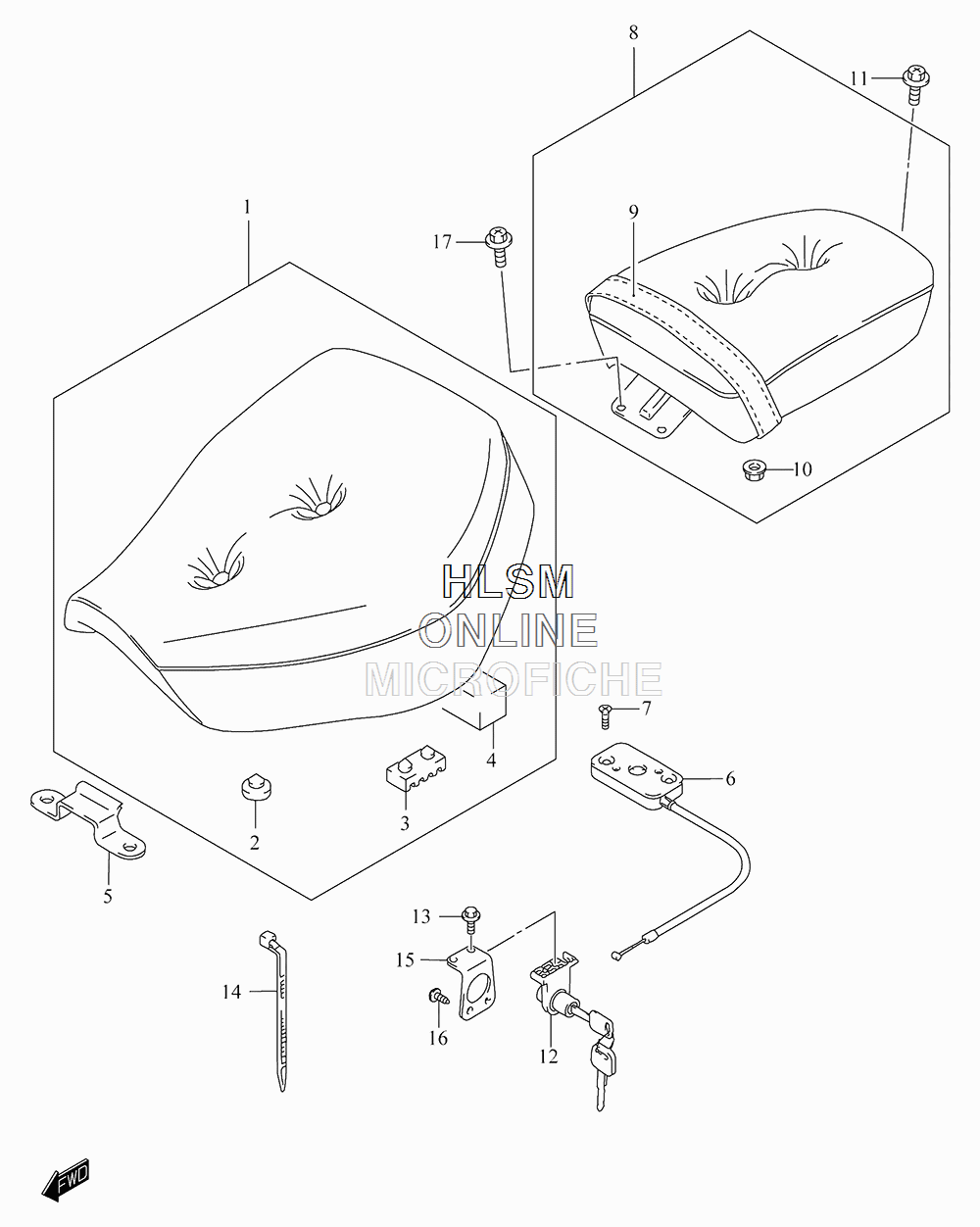

SEAT для Suzuki GZ250 L5 MARAUDER - 2015 года выпуска
-
№АртикулНазвание
-
145100-12FA0-K9C SEAT ASSYSEAT ASSY
-
245148-12FA0 ...CUSHION, FRONT...CUSHION, FRONT
-
345147-12FA0 ...CUSHION, REAR...CUSHION, REAR
-
445149-12FA0 ...CUSHION, TOOL...CUSHION, TOOL
-
545119-12F00 PLATE, FRONT SEAT HOOKPLATE, FRONT SEAT HOOK
-
645220-12F00 BRACKET, FRONT SEATBRACKET, FRONT SEAT
-
702122-0625B SCREWSCREW
-
845300-12FA0-K9C SEAT ASSY, PILLIONSEAT ASSY, PILLION
-
945180-12FA0-T65 ...BAND, SEAT...BAND, SEAT
-
10D8316-1006A ...NUT...NUT
-
1109106-08140 BOLT, REAR (8X16)BOLT, REAR (8X16)
-
1295700-31C00 LOCK SET, SEATLOCK SET, SEAT
-
1301547-0510B BOLTBOLT
-
1409407-22403 CLAMPCLAMP
-
1545289-03F00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
16D3111-0413B SCREWSCREW
-
1709106-06061 BOLT, FRONT (6X12)BOLT, FRONT (6X12)
