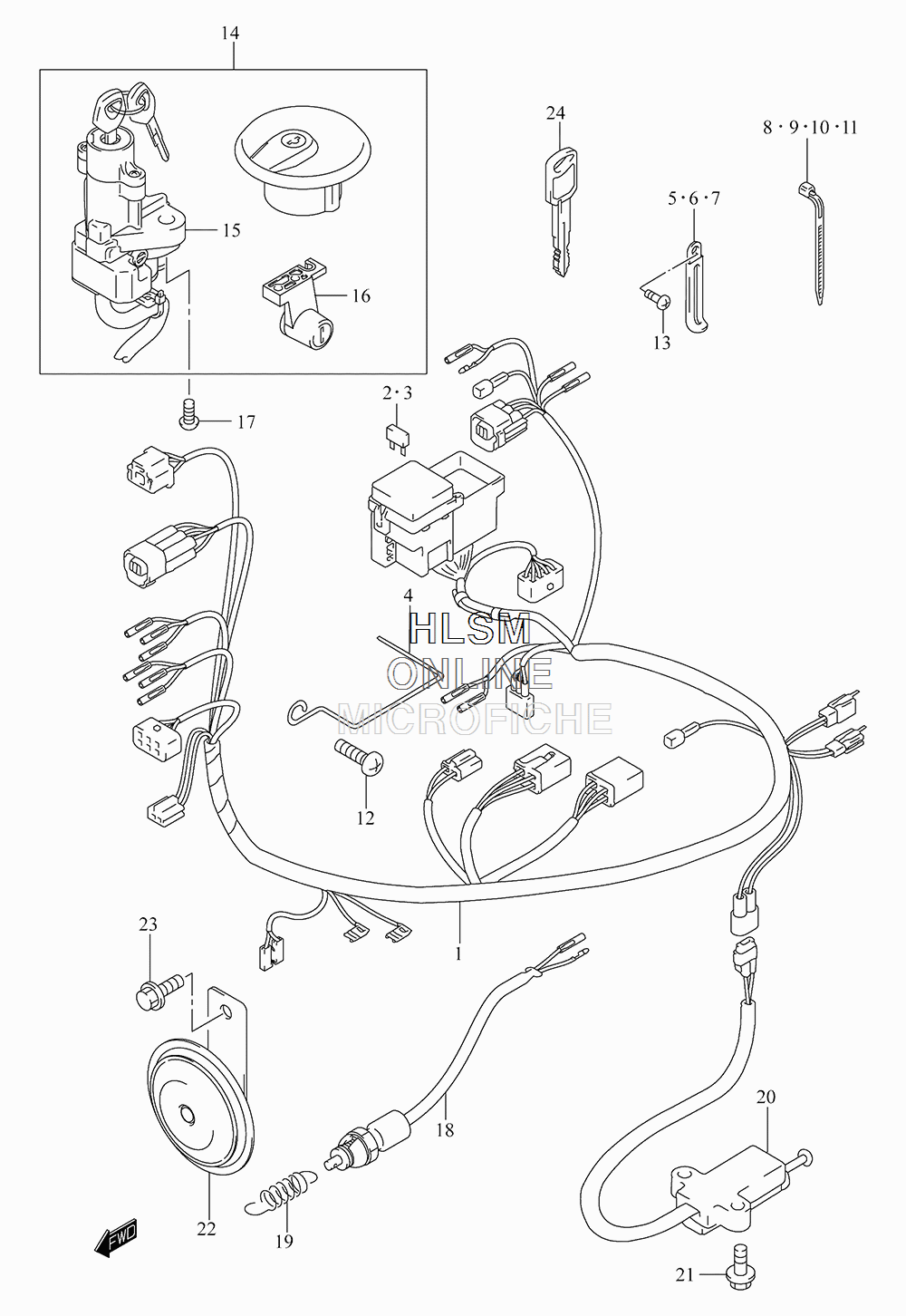

ELECTRICAL - WIRING HARNESS для Suzuki GZ250 L5 MARAUDER - 2015 года выпуска
-
№АртикулНазвание
-
136610-13FA0 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
436619-23E00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
509404-06429 CLAMP (L:45)CLAMP (L:45)
-
609404-06431 CLAMP (L:80)CLAMP (L:80)
-
709404-06435 CLAMP (L:135)CLAMP (L:135)
-
809407-11401 CLAMP (L:95)CLAMP (L:95)
-
909407-14403 CLAMP (L:125)CLAMP (L:125)
-
1009407-18402 CLAMP (L:165)CLAMP (L:165)
-
1109407-25401 CLAMP (L:235)CLAMP (L:235)
-
1201550-0616B BOLT, GUIDEBOLT, GUIDE
-
1303541-0410B SCREW, CLAMPSCREW, CLAMP
-
1437107-33810 LOCK SETLOCK SET
-
1537100-33E20 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
1695700-31C00 ...LOCK ASSY,SEAT...LOCK ASSY,SEAT
-
1709139-08016 SCREWSCREW
-
1837740-04A10 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1909443-06046 SPRING, STOP LAMPSPRING, STOP LAMP
-
2037840-44A20 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2101550-0616B BOLTBOLT
-
2238500-12F10 HORN ASSYHORN ASSY
-
2301550-0816B BOLTBOLT
-
2437146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
