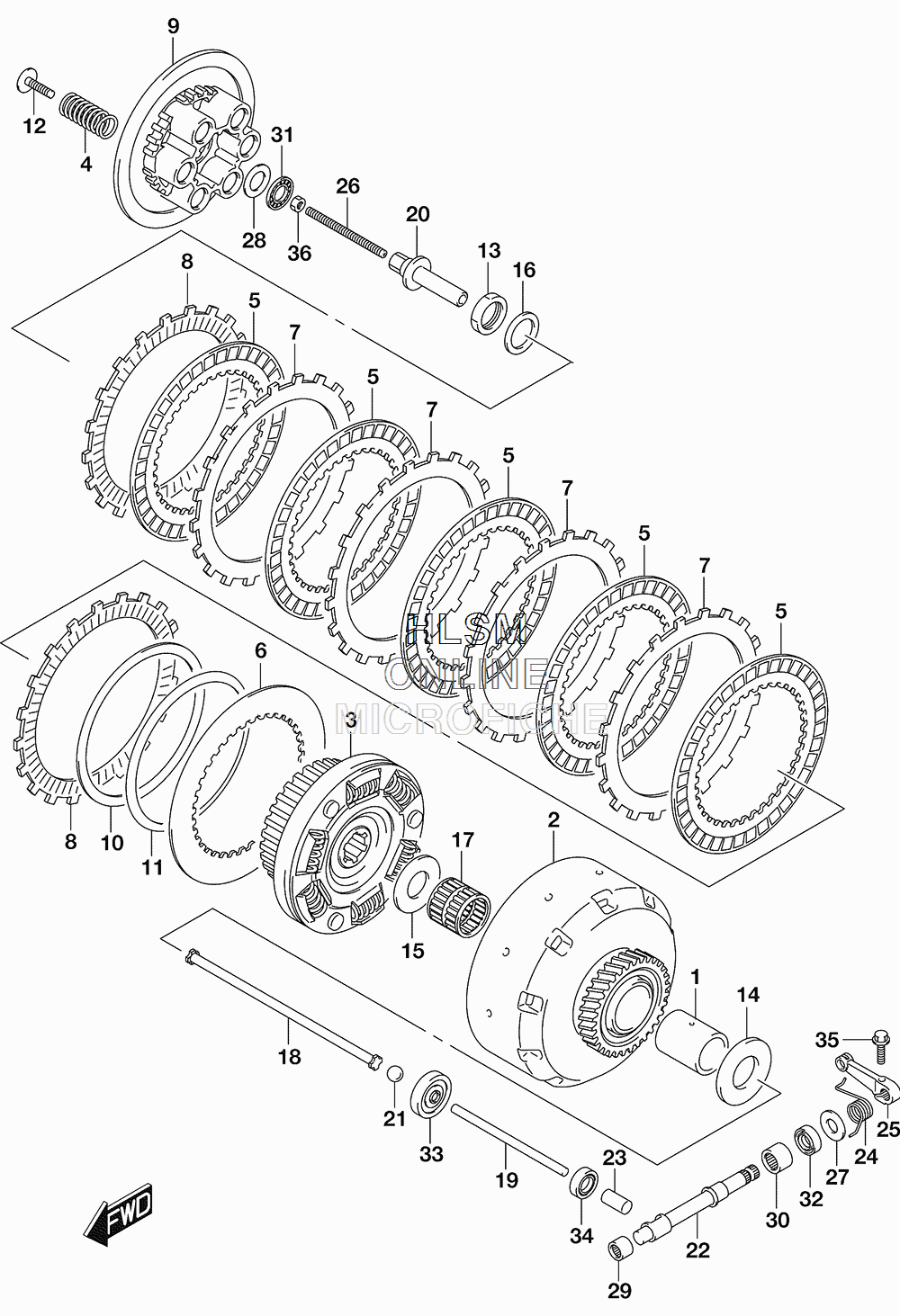

CLUTCH для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
121151-48G00 SPACER, PRIMARY DRIVE GEARSPACER, PRIMARY DRIVE GEAR
-
221100-48G01 GEAR ASSY, PRIMARY DRIVE (NT:33)GEAR ASSY, PRIMARY DRIVE (NT:33)
-
321410-48G10 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
421413-35F10 SPRING, CLUTCHSPRING, CLUTCH
-
521441-22H00 PLATE, CLUTCH DRIVE NO. (T:3.0)PLATE, CLUTCH DRIVE NO. (T:3.0)
-
621441-48G40 PLATE, CLUTCH DRIVE NO.2 (T:2.0)PLATE, CLUTCH DRIVE NO.2 (T:2.0)
-
721451-22H00 PLATE, CLUTCH DRIVEN NO. (T:2.3)PLATE, CLUTCH DRIVEN NO. (T:2.3)
-
821451-48G10 PLATE, CLUTCH DRIVEN NO.2 (T:3.4)PLATE, CLUTCH DRIVEN NO.2 (T:3.4)
-
921462-48G00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1021471-48G00 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1121472-48G10 WASHER, CLUTCH PLATEWASHER, CLUTCH PLATE
-
1221482-41G00 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
1309159-24010 NUTNUT
-
1409160-25056 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
1509160-25056 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
1609164-24008 WASHERWASHER
-
1709263-32020 BEARING (32X37X38.3)BEARING (32X37X38.3)
-
1823110-24F00 ROD, CLUTCHROD, CLUTCH
-
1923111-48G00 ROD, CLUTCH PUSH LHROD, CLUTCH PUSH LH
-
2023121-41G00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2123122-02FR0 BALL, CLUTCH PUSHBALL, CLUTCH PUSH
-
2223122-48G00 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
2323123-41G00 CAP, CLUTCH PUSH RODCAP, CLUTCH PUSH ROD
-
2423125-48G00 SPRING, CLUTCH RELEASE RETURNSPRING, CLUTCH RELEASE RETURN
-
2523271-48G00 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2609134-06015 SCREW (6X73)SCREW (6X73)
-
2709160-10020 WASHER (10.5X24X1)WASHER (10.5X24X1)
-
2809160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
2909263-10014 BEARING (10X14X10) (LOWER)BEARING (10X14X10) (LOWER)
-
3009263-12027 BEARING (12X18X12) (UPPER)BEARING (12X18X12) (UPPER)
-
3109263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
3209282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
3309283-06010 OIL SEAL (6X34X10.5)OIL SEAL (6X34X10.5)
-
3409285-10004 OIL SEAL (10X17X5)OIL SEAL (10X17X5)
-
3501547-0620A BOLTBOLT
-
3608310-0006A NUTNUT
