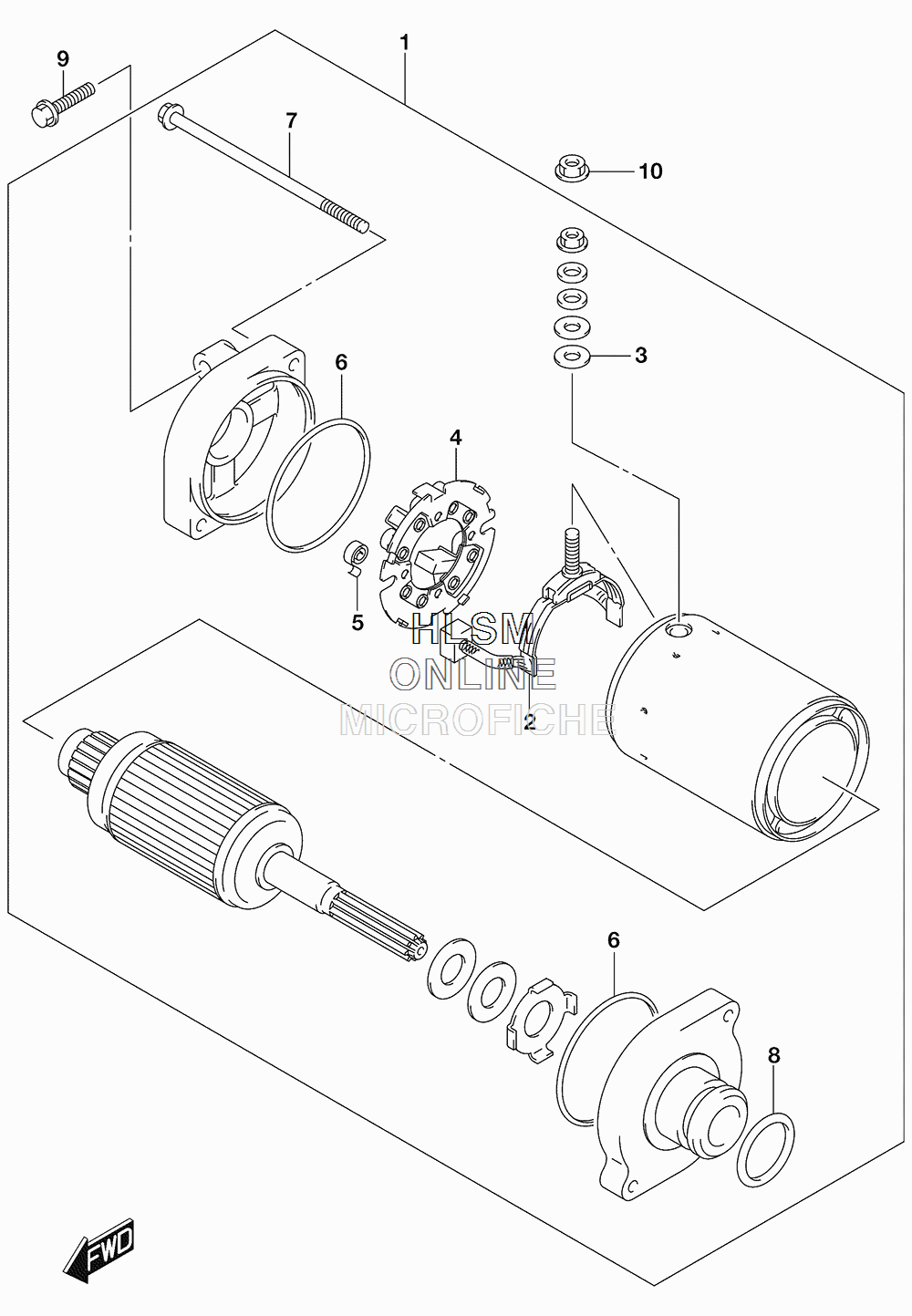

STARTING MOTOR для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
131100-48G00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231130-38B00 ...TERMINAL SET, BRUSH...TERMINAL SET, BRUSH
-
331143-49040 ...O RING...O RING
-
431132-38B00 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
531135-38B00 ...SPRING, BRUSH...SPRING, BRUSH
-
631264-31300 ...O RING...O RING
-
731281-24B10 ...BOLT...BOLT
-
809280-24003 ...O RING (D:3,ID:24.5)...O RING (D:3,ID:24.5)
-
909103-06212 BOLT (6X25)BOLT (6X25)
-
1008361-3506A NUTNUT
