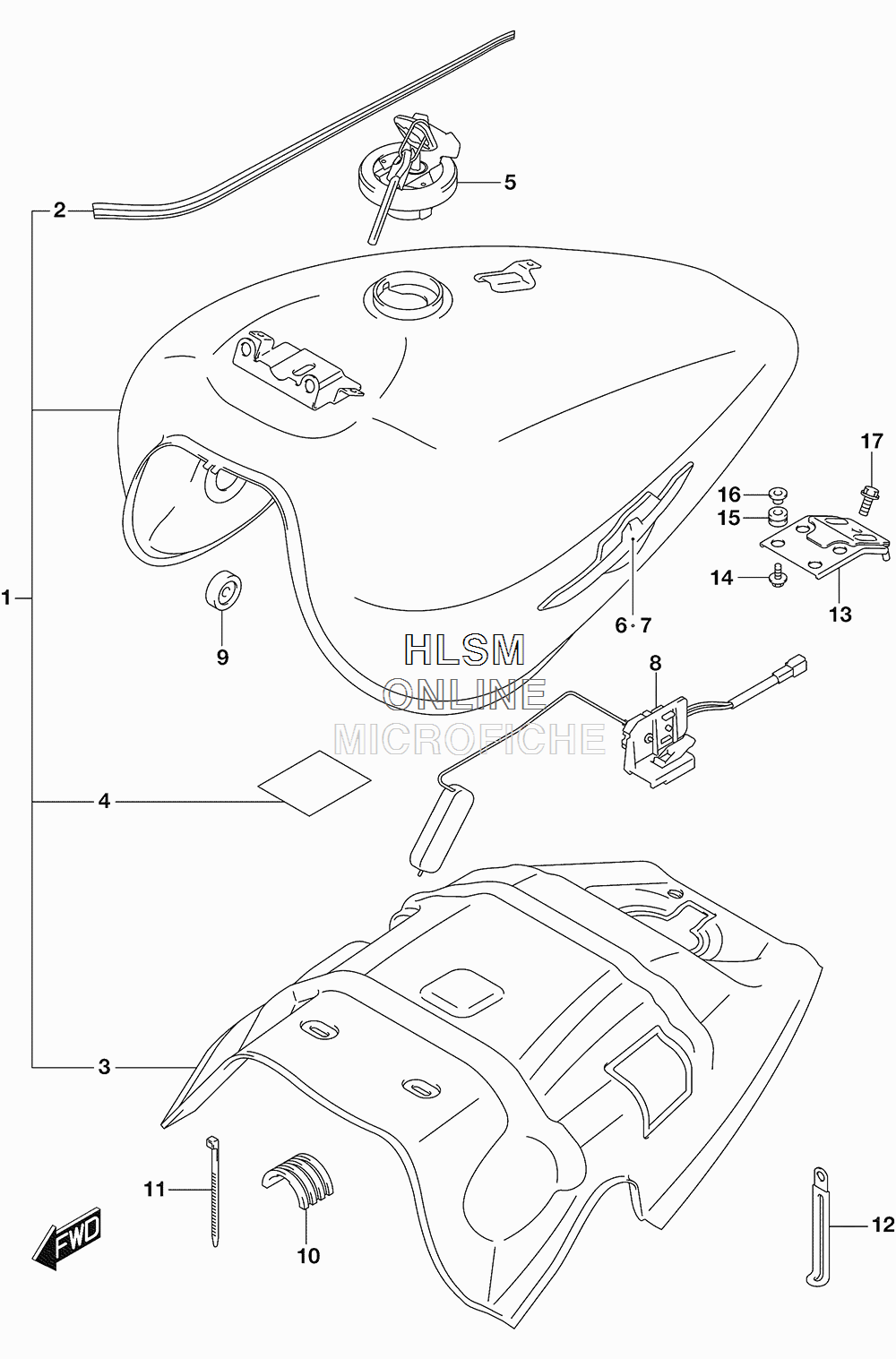

FUEL TANK (CALIF) для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
144100-48GQ0-AR5 TANK ASSY, FUEL (WHITE/BLACK)TANK ASSY, FUEL (WHITE/BLACK)
-
144100-48GQ0-AV4 TANK ASSY, FUEL (RED/BLACK)TANK ASSY, FUEL (RED/BLACK)
-
268110-48GB0-A7D ...TAPE SET, FUEL TANK (FOR AR5)...TAPE SET, FUEL TANK (FOR AR5)
-
268110-48GB0-A7Q ...TAPE SET, FUEL TANK (FOR AV4)...TAPE SET, FUEL TANK (FOR AV4)
-
344191-48G10 ...SHIELD, TANK HEAT...SHIELD, TANK HEAT
-
444192-48G00 ...TAPE...TAPE
-
544200-39870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
668111-48G01 EMBLEM, RHEMBLEM, RH
-
768121-48G01 EMBLEM, LHEMBLEM, LH
-
834810-48G00 GAUGE ASSY, FUEL LEVEL SENDERGAUGE ASSY, FUEL LEVEL SENDER
-
909329-10007 CUSHION (FRONT)CUSHION (FRONT)
