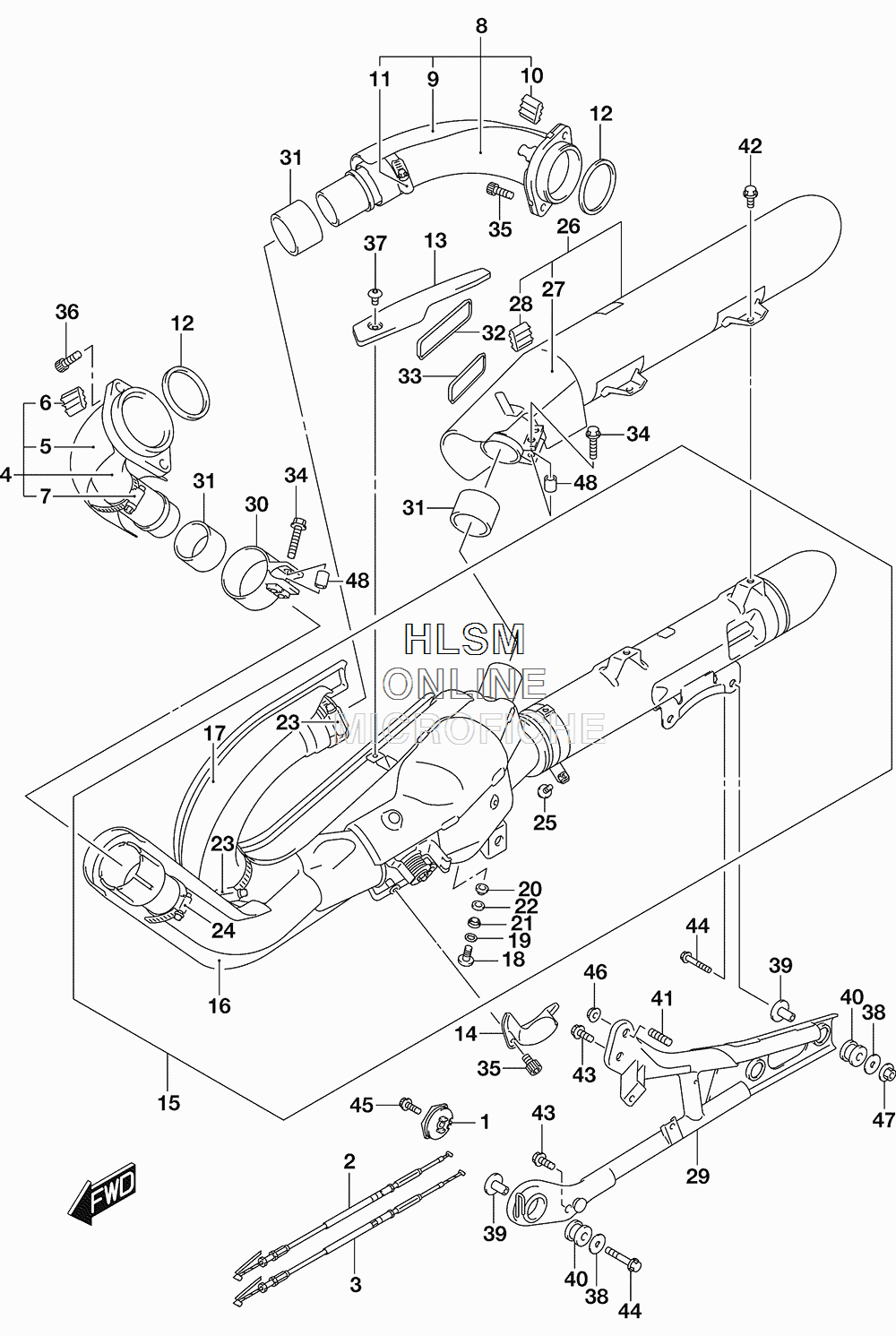

MUFFLER для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
111269-18G01 PULLEY, CONTROLLERPULLEY, CONTROLLER
-
211276-48G00 CABLE, EXHAUST VALVE NO.1CABLE, EXHAUST VALVE NO.1
-
311277-48G00 CABLE, EXHAUST VALVE NO.2CABLE, EXHAUST VALVE NO.2
-
414150-48G50 PIPE, EXHAUST FRPIPE, EXHAUST FR
-
514168-48G20 ...COVER, EXH FRONT PIPE...COVER, EXH FRONT PIPE
-
614795-10FA0 ...GROMMET...GROMMET
-
709402-57511 ...CLAMP...CLAMP
-
814160-48G30 PIPE, EXHAUST RRPIPE, EXHAUST RR
-
914169-48G20 ...COVER, EXH REAR PIPE...COVER, EXH REAR PIPE
-
1014795-10FA0 ...GROMMET...GROMMET
-
1109402-67501 ...CLAMP...CLAMP
-
1214181-10F00 GASKET, EXH PIPEGASKET, EXH PIPE
-
1314260-48G10 COVER, EXH REAR UPPERCOVER, EXH REAR UPPER
-
1414280-48G00 COVER, EXHAUST VALVECOVER, EXHAUST VALVE
-
1514305-48G70-H01 MUFFLER, FRMUFFLER, FR
-
1614170-48G50 ...COVER, EXH FR...COVER, EXH FR
-
1714180-48G70 ...COVER, EXH RR...COVER, EXH RR
-
1809139-06028 ...SCREW (6X20)...SCREW (6X20)
-
1909160-06141 ...WASHER (6.5X20X1)...WASHER (6.5X20X1)
-
2009180-06331 ...SPACER (6.2X8.4X10.9)...SPACER (6.2X8.4X10.9)
-
2109320-08080 ...CUSHION...CUSHION
-
2209320-08081 ...CUSHION...CUSHION
-
2309402-67501 ...CLAMP...CLAMP
-
2409402-57511 ...CLAMP...CLAMP
-
2507120-0610A ...BOLT...BOLT
-
2614340-48G50-H01 BODY, MUFFLER RRBODY, MUFFLER RR
-
2714344-48G20 ...COVER, UP MUFFLER FR...COVER, UP MUFFLER FR
-
2814795-10FA0 ...GROMMET...GROMMET
-
2914410-48G00 BRACKETBRACKET
-
3014459-48G00 CLAMPCLAMP
-
3114771-42F31 CONNECTORCONNECTOR
-
3214780-48G10 PROTECTOR, FRPROTECTOR, FR
-
3314790-48G20 PROTECTOR, RRPROTECTOR, RR
-
3409103-08365 BOLT (8X35)BOLT (8X35)
-
3509106-06075 BOLT (6X12)BOLT (6X12)
-
3609106-08165 BOLT (8X25)BOLT (8X25)
-
3709139-06122 SCREW (6X10)SCREW (6X10)
-
3809160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
3909180-08156 SPACER (8.6X12X27.1)SPACER (8.6X12X27.1)
-
4009320-12049 CUSHIONCUSHION
-
4101411-0820A BOLTBOLT
-
4214425-48G00 BOLTBOLT
-
4314425-48G00 BOLTBOLT
-
4401550-0845A BOLTBOLT
-
4507120-0516A BOLTBOLT
-
4608319-3108A NUTNUT
-
4708361-2508A NUTNUT
-
4814458-06H00 SPACER, MUFFLERSPACER, MUFFLER
