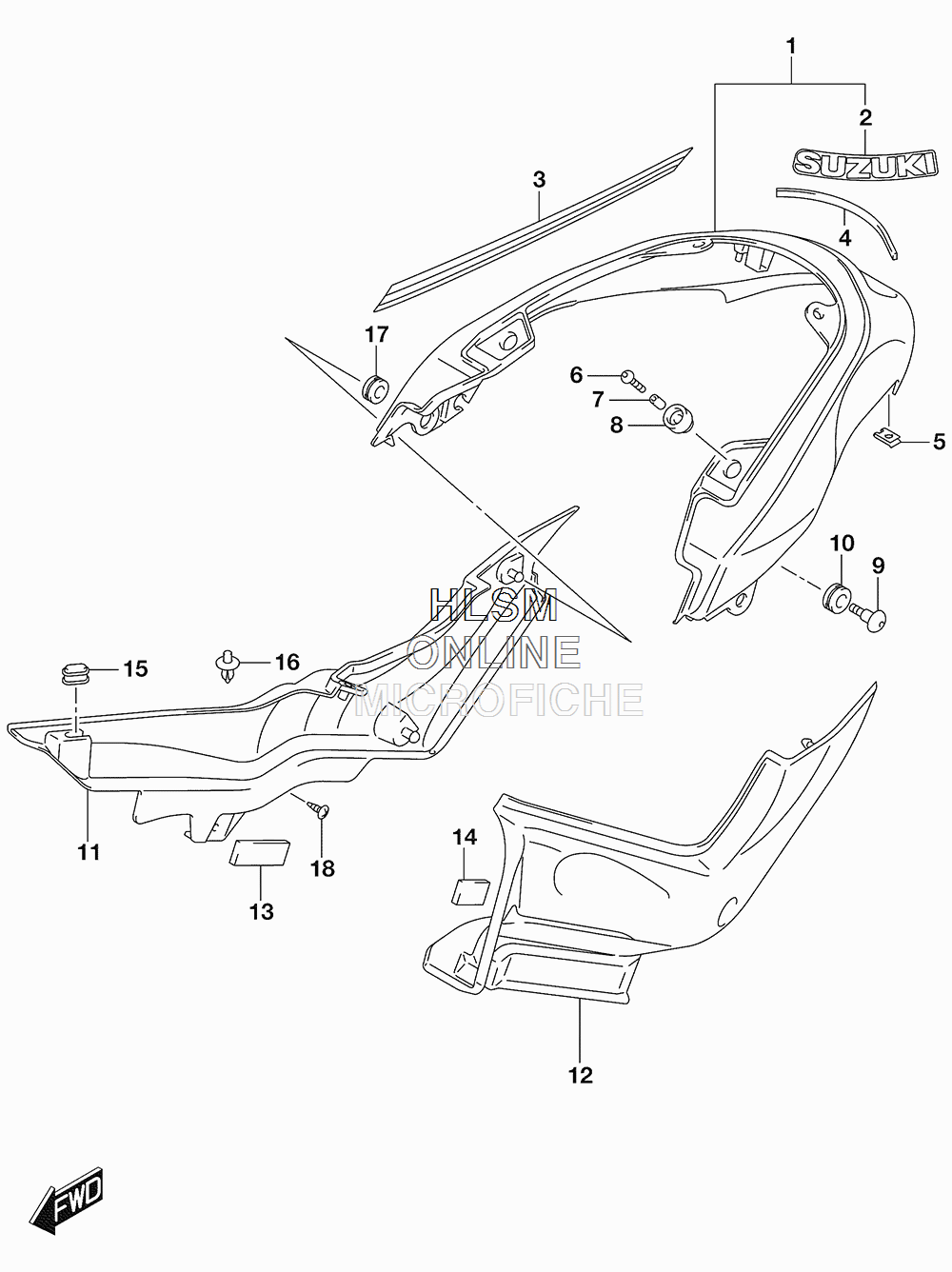

FENDER - REAR для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
163110-48G70-AR5 FENDER, REAR (WHITE/BLACK)FENDER, REAR (WHITE/BLACK)
-
163110-48G70-AV4 FENDER, REAR (RED/BLACK)FENDER, REAR (RED/BLACK)
-
268170-48GB0-A7D ...TAPE SET, REAR FENDER (FOR AR5)...TAPE SET, REAR FENDER (FOR AR5)
-
268170-48GB0-A7Q ...TAPE SET, REAR FENDER (FOR AV4)...TAPE SET, REAR FENDER (FOR AV4)
-
368161-44GA0-APT ...EMBLEM, SUZUKI (SILVER/BLACK) (FOR AR5)...EMBLEM, SUZUKI (SILVER/BLACK) (FOR AR5)
-
368161-44GA0-A71 ...EMBLEM, SUZUKI (SILVER/RED) (FOR AV4)...EMBLEM, SUZUKI (SILVER/RED) (FOR AV4)
-
463117-39G00 CUSHION, LAMPCUSHION, LAMP
-
594484-24F00 NUT, COWLNUT, COWL
-
609139-06139 SCREW (6X16)SCREW (6X16)
-
709180-06286 SPACER (6.5X10X9.4)SPACER (6.5X10X9.4)
-
809320-10045 CUSHIONCUSHION
-
909139-06190 BOLT (6X20)BOLT (6X20)
-
1009320-09016 CUSHIONCUSHION
-
1163171-48G51-RB5 COVER, FENDER RIGHT HAND (WHITE) (FOR AR5)COVER, FENDER RIGHT HAND (WHITE) (FOR AR5)
-
1163171-48G51-YVB COVER, FENDER RIGHT HAND (BLACK) (FOR AV4)COVER, FENDER RIGHT HAND (BLACK) (FOR AV4)
-
1263181-48G51-RB5 COVER, FENDER LEFT HAND (WHITE) (FOR AR5)COVER, FENDER LEFT HAND (WHITE) (FOR AR5)
-
1263181-48G51-YVB COVER, FENDER LEFT HAND (BLACK) (FOR AV4)COVER, FENDER LEFT HAND (BLACK) (FOR AV4)
-
1315439-70G10 CUSHION, RHCUSHION, RH
-
1447161-19C00 CUSHION, LHCUSHION, LH
-
1544276-29G00 CUSHION, COVERCUSHION, COVER
-
1609409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1709320-08028 CUSHIONCUSHION
-
1803541-0516A SCREWSCREW
