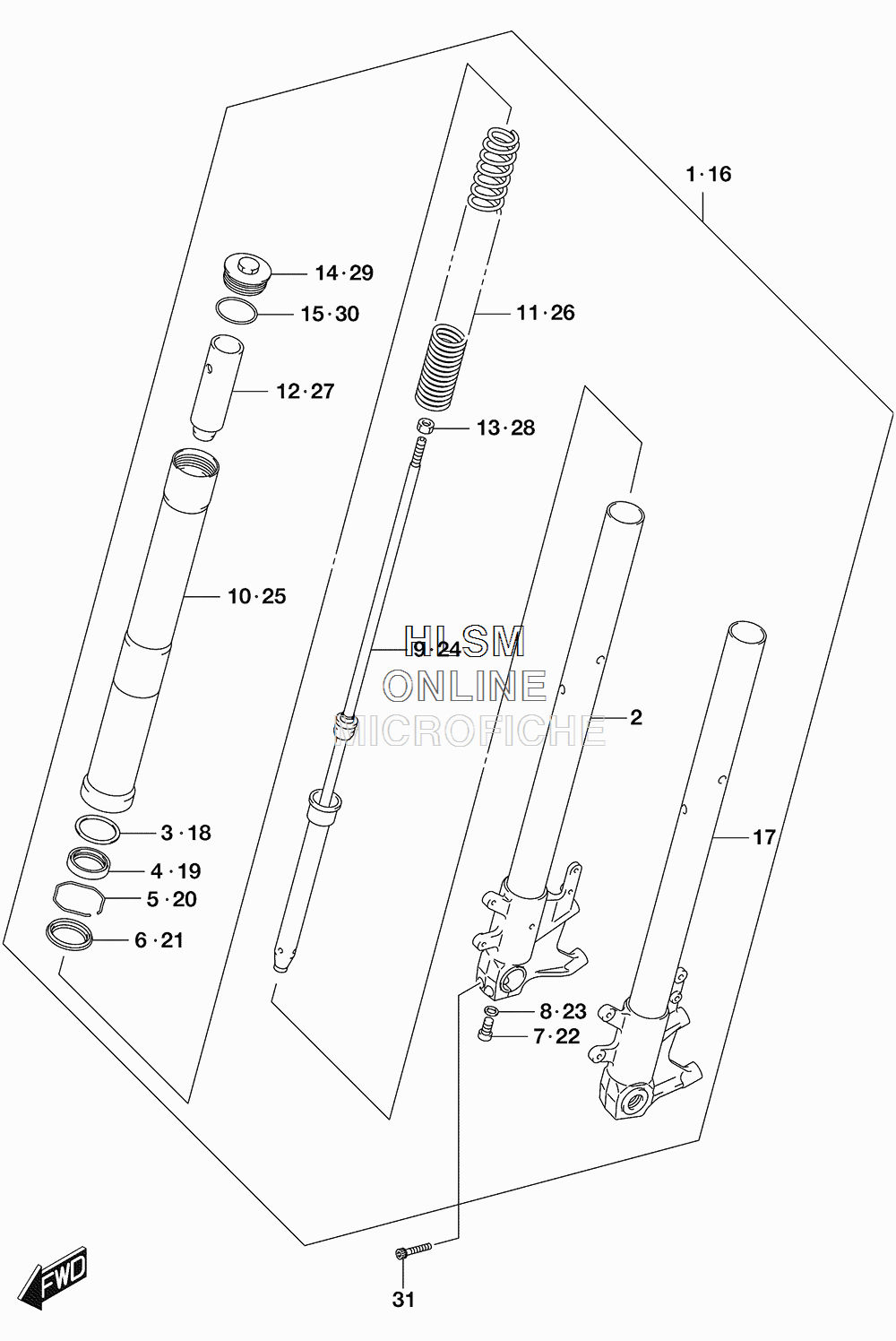

SUSPENSION - FRONT FORK для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
151103-48G30 DAMPER ASSY, FRONT FORK RHDAMPER ASSY, FRONT FORK RH
-
251110-48G30 ...TUBE, INNER RH...TUBE, INNER RH
-
351158-27C00 ...WASHER...WASHER
-
451153-48G00 ...OIL SEAL...OIL SEAL
-
551156-27C00 ...RING, STOPPER...RING, STOPPER
-
651173-42F00 ...SEAL, DUST...SEAL, DUST
-
751147-05H00 ...BOLT...BOLT
-
851148-41310 ...GASKET...GASKET
-
951146-48G20 ...CYLINDER...CYLINDER
-
1051130-48G30 ...TUBE, OUTER...TUBE, OUTER
-
1151171-48G20 ...SPRING, FRONT...SPRING, FRONT
-
1251176-21H00 ...SPACER, SPRING...SPACER, SPRING
-
1351352-13A60 ...NUT, ROD...NUT, ROD
-
1451351-48G30 ...CAP...CAP
-
1551117-48G00 ...O RING...O RING
-
1651104-48G30 DAMPER ASSY, FRONT FORK LHDAMPER ASSY, FRONT FORK LH
-
1751120-48G30 ...TUBE, INNER LH...TUBE, INNER LH
-
1851158-27C00 ...WASHER...WASHER
-
1951153-48G00 ...OIL SEAL...OIL SEAL
-
2051156-27C00 ...RING, STOPPER...RING, STOPPER
-
2151173-42F00 ...SEAL, DUST...SEAL, DUST
-
2251147-05H00 ...BOLT...BOLT
-
2351148-41310 ...GASKET...GASKET
-
2451146-48G20 ...CYLINDER...CYLINDER
-
2551130-48G30 ...TUBE, OUTER...TUBE, OUTER
-
2651171-48G20 ...SPRING, FRONT...SPRING, FRONT
-
2751176-21H00 ...SPACER, SPRING...SPACER, SPRING
-
2851352-13A60 ...NUT, ROD...NUT, ROD
-
2951351-48G30 ...CAP...CAP
-
3051117-48G00 ...O RING...O RING
-
3151328-39G20 BOLTBOLT
