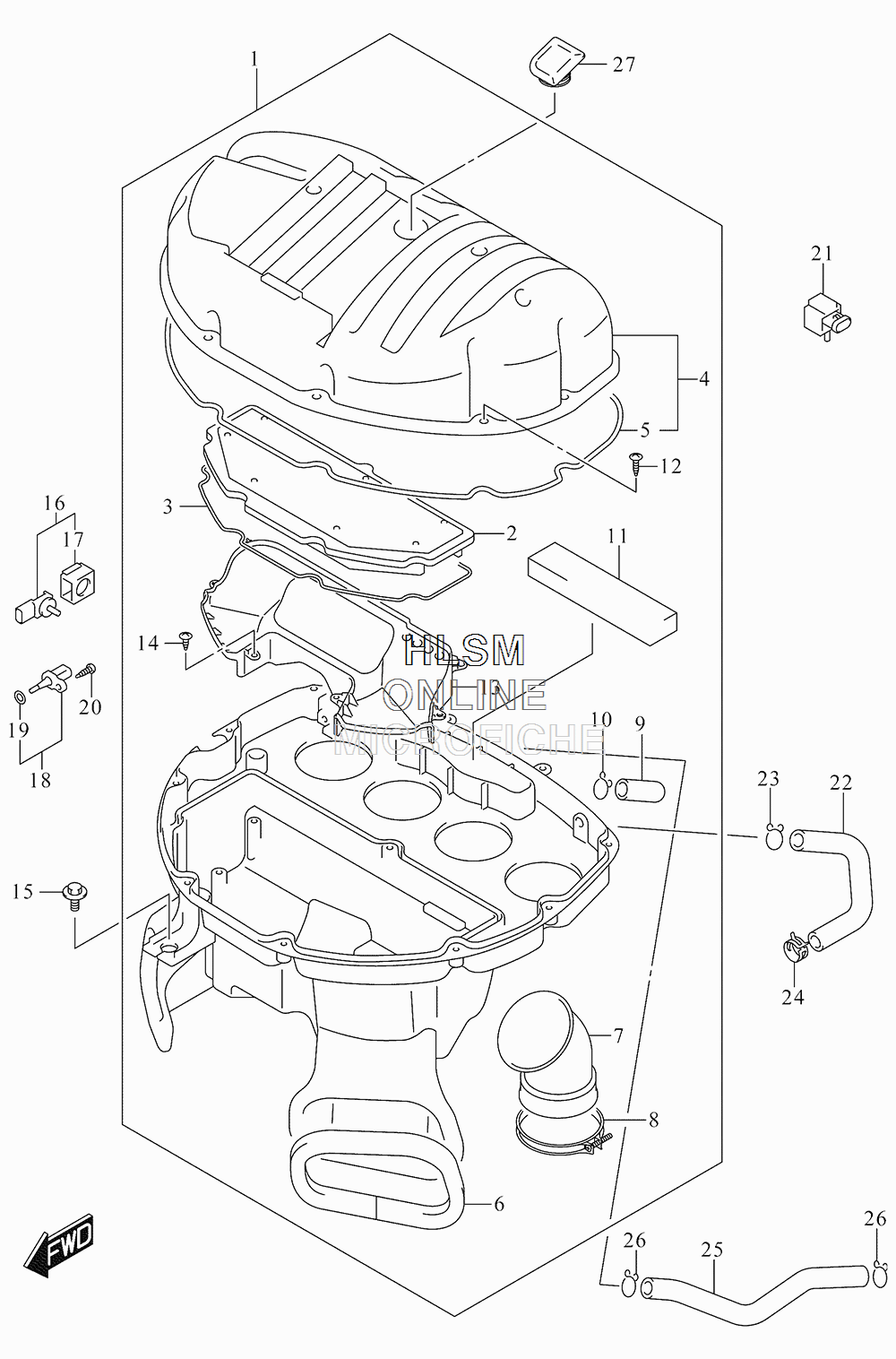

AIR CLEANER для Suzuki GSX-S1000F L6 - 2016 года выпуска
-
№АртикулНазвание
-
113700-04K00 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-47H10 FILTER ASSYFILTER ASSY
-
313756-47H00 GASKET, CASEGASKET, CASE
-
413740-04K00 CAP, AIR CLEANERCAP, AIR CLEANER
-
513746-01H00 GASKET, CAPGASKET, CAP
-
613736-04K00 CUSHION, DUCTCUSHION, DUCT
-
713881-04K00 TUBE, OUTLETTUBE, OUTLET
-
813827-40H01 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
913878-09F00 PLUG, DRAINPLUG, DRAIN
-
1009401-14101 CLIPCLIP
-
1113788-04K00 FILTER, BREATHERFILTER, BREATHER
-
1203541-0520A SCREWSCREW
-
1313723-04K00 SEPARATOR, AIR CLEANERSEPARATOR, AIR CLEANER
-
1403541-0412A SCREWSCREW
-
1509111-06089 BOLT (6X16)BOLT (6X16)
-
1615630-29G40 SENSOR, BOOSTSENSOR, BOOST
-
1715625-29G40 COVERCOVER
-
1813650-41F10 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1913655-41F10 O RINGO RING
-
2003511-0516A SCREWSCREW
-
2118590-32G00 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
2213697-04K00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2309401-15101 CLIPCLIP
-
2409401-16407 CLIPCLIP
-
2513853-04K00 HOSE, BREATHERHOSE, BREATHER
-
2609401-14101 CLIPCLIP
-
2713744-04K00 PLUGPLUG
