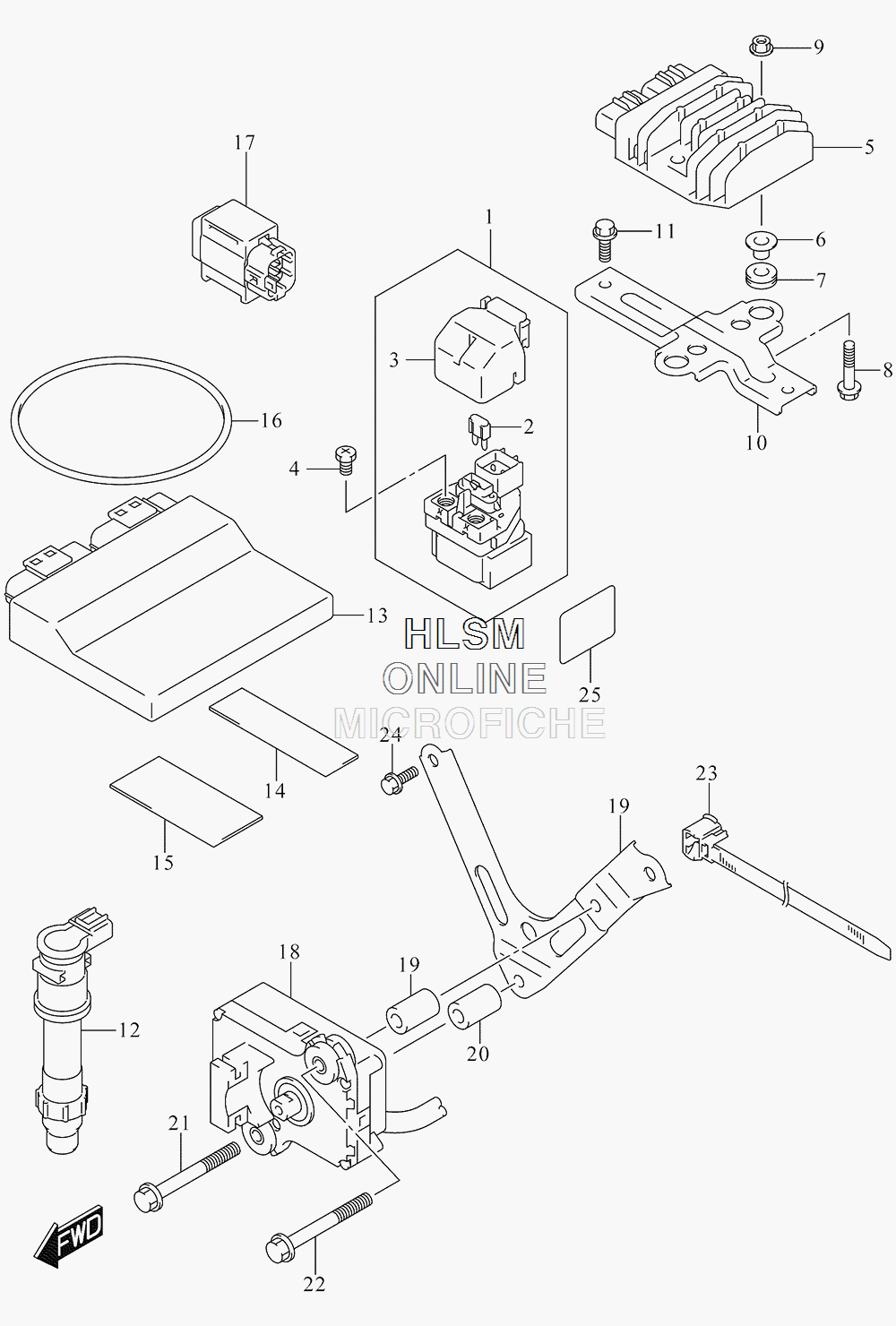

ELECTRICAL для Suzuki GSX-S1000F L6 - 2016 года выпуска
-
№АртикулНазвание
-
131800-38G10 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
209481-30501 FUSE (30A)FUSE (30A)
-
331861-38G00 COVERCOVER
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-26J00 RECTIFIER ASSYRECTIFIER ASSY
-
609180-06331 SPACER (6.2X8.4X10.9)SPACER (6.2X8.4X10.9)
-
709320-08501 CUSHIONCUSHION
-
802162-0635A BOLTBOLT
-
908316-1006A NUTNUT
-
1047431-04K00 BRACKET, ELECTRIC PARTSBRACKET, ELECTRIC PARTS
-
1101550-0612A BOLTBOLT
-
1233410-47H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1332920-04K10 CONTROL UNIT, FICONTROL UNIT, FI
-
1433652-38A10 CUSHION, FI CONTROL UNITCUSHION, FI CONTROL UNIT
-
1533652-34000 PROTECTOR (30X80X2)PROTECTOR (30X80X2)
-
1609280-85001 O RING (D:3.5,ID:85)O RING (D:3.5,ID:85)
-
1733960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1833970-48G00 ACTUATOR, EXHAUST CONTROLACTUATOR, EXHAUST CONTROL
-
1947420-04K00 BRACKET, ACTUATORBRACKET, ACTUATOR
-
2009180-06345 SPACER (6.2X14.5X26)SPACER (6.2X14.5X26)
-
2101550-0650B BOLTBOLT
-
2201550-0655A BOLTBOLT
-
2309407-14413 CLAMPCLAMP
-
2401547-0612A BOLTBOLT
-
2545517-16G20 TAPETAPE
