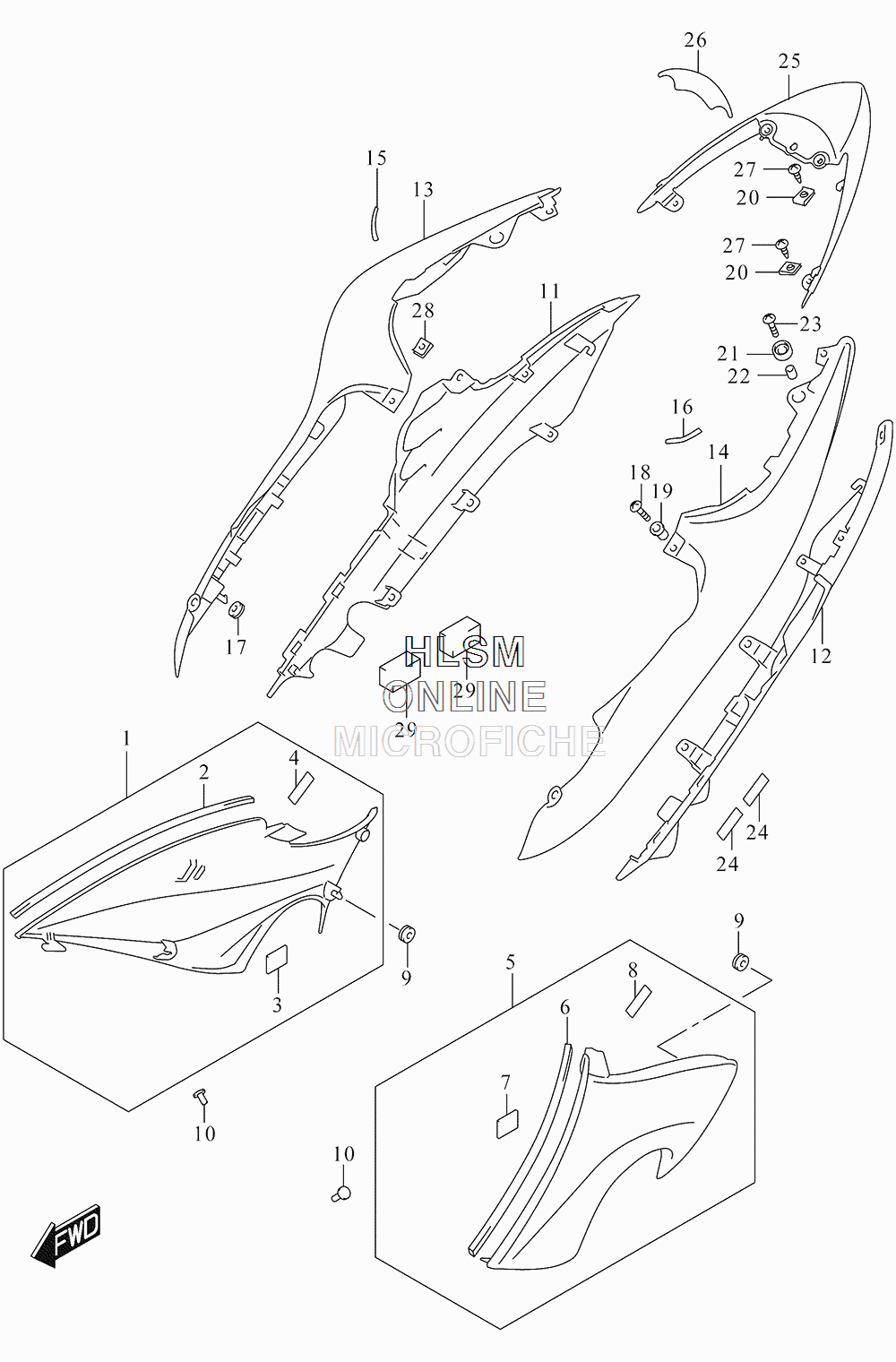

FRAME COVER (PGZ-AV4) для Suzuki GSX-S1000F L6 - 2016 года выпуска
-
№АртикулНазвание
-
147110-04K00 COVER, FRAME FRONT RHCOVER, FRAME FRONT RH
-
244277-37H00 CUSHIONCUSHION
-
344572-13G00 FASTENERFASTENER
-
494476-38C00 CUSHIONCUSHION
-
547210-04K00 COVER, FRAME FRONT LHCOVER, FRAME FRONT LH
-
644277-37H00 CUSHIONCUSHION
-
744572-13G00 FASTENERFASTENER
-
894476-38C00 CUSHIONCUSHION
-
909320-06504 CUSHIONCUSHION
-
1009409-10314 CLIPCLIP
-
1147131-04K00 COVER, FRAME REAR LOWER RHCOVER, FRAME REAR LOWER RH
-
1247231-04K00 COVER, FRAME REAR LOWER LHCOVER, FRAME REAR LOWER LH
-
1347121-04K00-PGZ COVER, FRAME REAR UPPER RIGHT HAND (GRAY) (FOR PGZ)COVER, FRAME REAR UPPER RIGHT HAND (GRAY) (FOR PGZ)
-
1347121-04K00-YVB COVER, FRAME REAR UPPER RIGHT HAND (BLACK) (FOR AV4)COVER, FRAME REAR UPPER RIGHT HAND (BLACK) (FOR AV4)
-
1447221-04K00-PGZ COVER, FRAME REAR UPPER LEFT HAND (GRAY) (FOR PGZ)COVER, FRAME REAR UPPER LEFT HAND (GRAY) (FOR PGZ)
-
1447221-04K00-YVB COVER, FRAME REAR UPPER LEFT HAND (BLACK) (FOR AV4)COVER, FRAME REAR UPPER LEFT HAND (BLACK) (FOR AV4)
-
1547313-04K00 TAPE, FRAME COVER, RHTAPE, FRAME COVER, RH
-
1647314-04K00 TAPE, FRAME COVER, LHTAPE, FRAME COVER, LH
-
1709320-08028 CUSHIONCUSHION
-
1802142-1520A SCREWSCREW
-
1909159-05019 NUTNUT
-
2009148-05047 NUTNUT
-
2147312-37H00 CUSHION, FRAME COVER RRCUSHION, FRAME COVER RR
-
2209180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
2309136-06105 SCREW (6X20)SCREW (6X20)
-
2494443-06G00 TAPE (6X25X0.13)TAPE (6X25X0.13)
-
2547311-04K00-YKV COVER, FRAME CENTER (BLACK) (FOR PGZ)COVER, FRAME CENTER (BLACK) (FOR PGZ)
-
2547311-04K00-YYG COVER, FRAME CENTER (RED) (FOR AV4)COVER, FRAME CENTER (RED) (FOR AV4)
-
2647312-04K00 TAPE, FRAME COVER CTRTAPE, FRAME COVER CTR
-
2703541-0512B SCREWSCREW
-
2809148-05047 NUTNUT
-
2917798-39G00 CUSHION (CUT AS REQUIRED)CUSHION (CUT AS REQUIRED)
