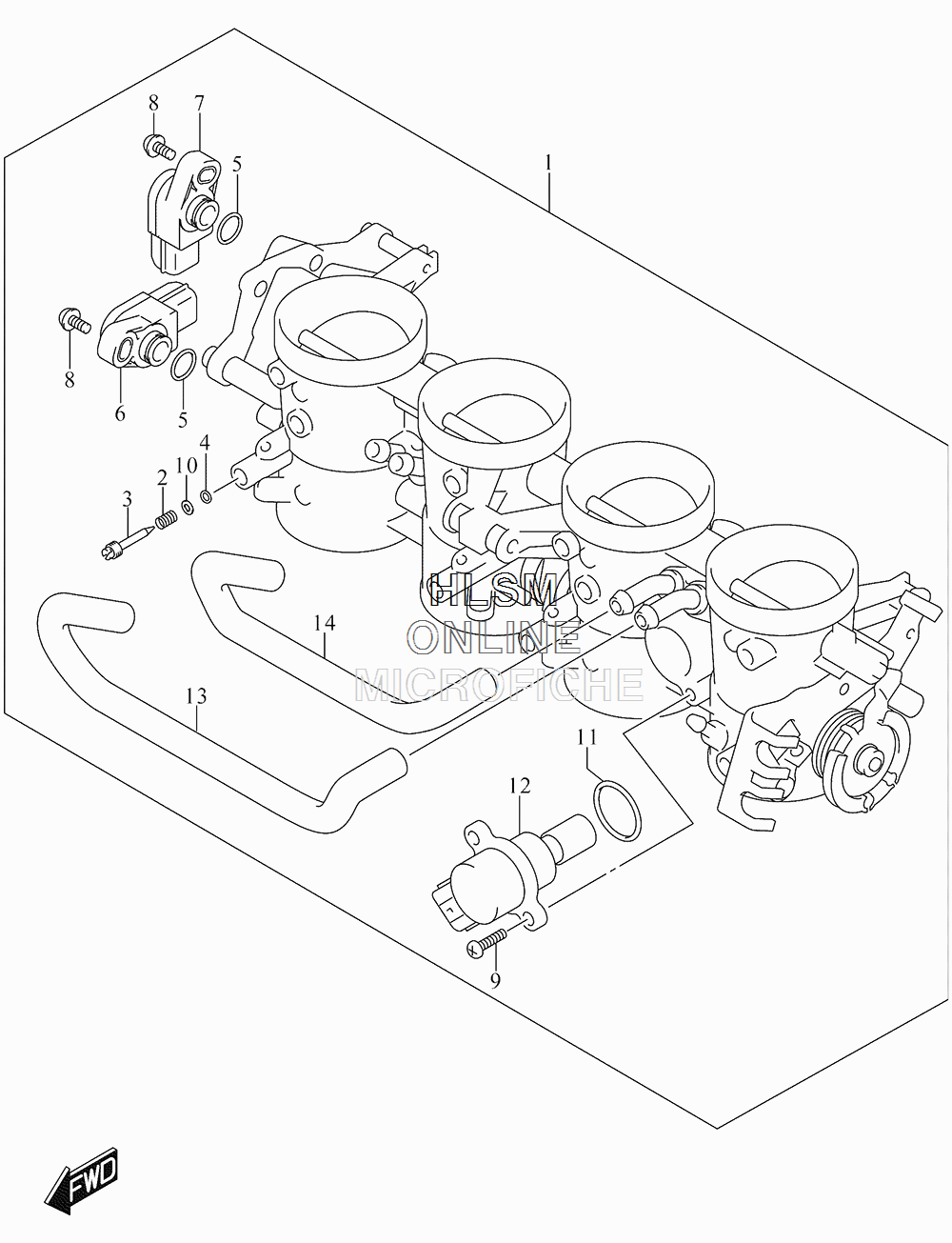

CARBURETOR - THROTTLE BODY для Suzuki GSX-S1000F L6 - 2016 года выпуска
-
№АртикулНазвание
-
113405-04K10 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
213268-48700 SPRINGSPRING
-
313269-33E00 SCREWSCREW
-
413295-29900 O RINGO RING
-
513575-29G00 O RINGO RING
-
613580-14J00 SENSORSENSOR
-
713580-29G00 SENSOR ASSYSENSOR ASSY
-
813605-02F00 SCREWSCREW
-
913602-05A40 SCREWSCREW
-
1013606-47A00 WASHERWASHER
-
1113679-37H00 O RINGO RING
-
1218117-14J01 MOTOR ASSYMOTOR ASSY
-
1313698-08J00 HOSEHOSE
-
1413698-08J10 HOSEHOSE
