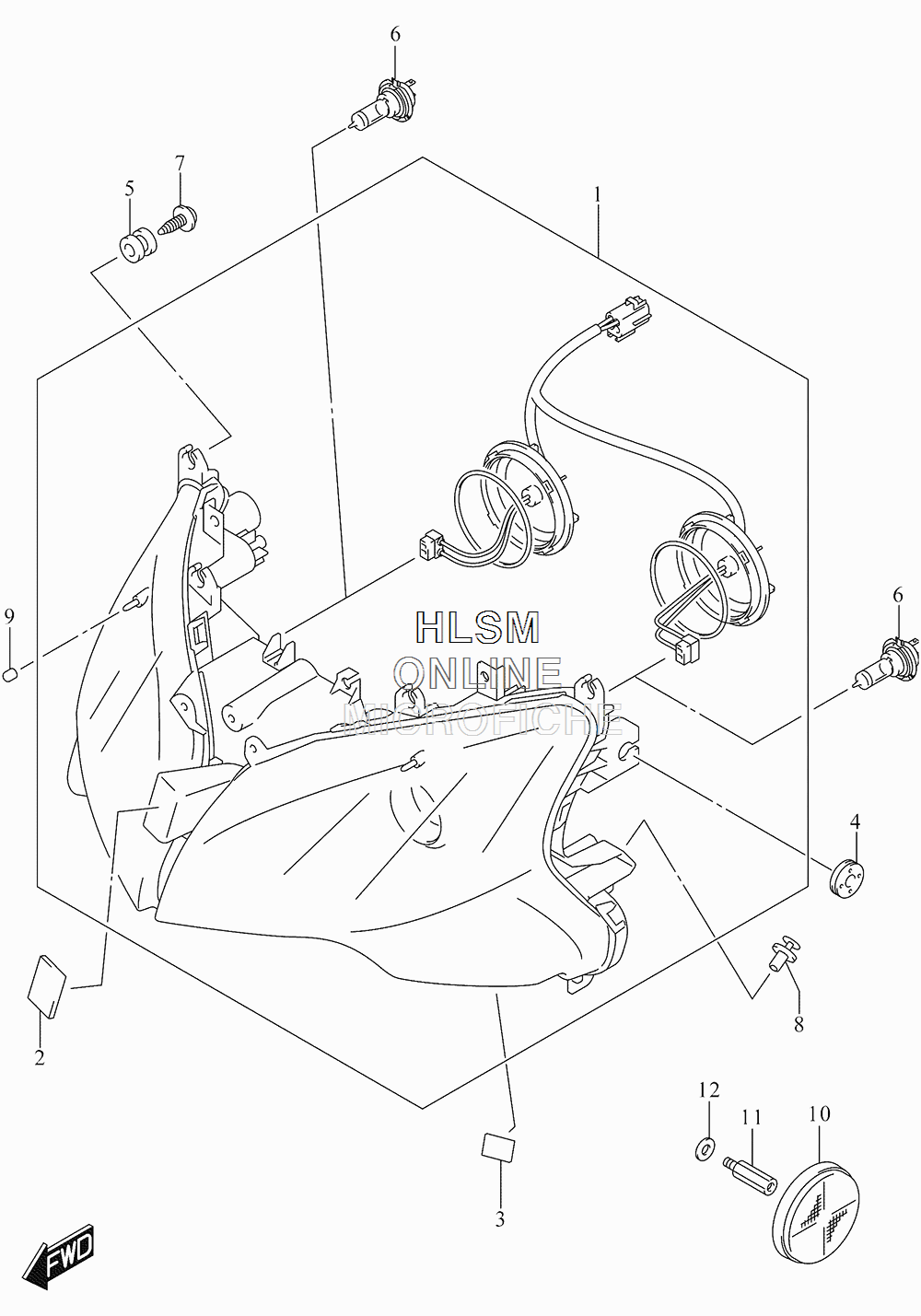

HEADLAMP для Suzuki GSX-S1000F L6 - 2016 года выпуска
-
№АртикулНазвание
-
135100-04KB0-999 HEADLAMP ASSYHEADLAMP ASSY
-
244572-02F01 FASTENERFASTENER
-
344572-37H00 FASTENER, COWLINGFASTENER, COWLING
-
409320-08028 CUSHIONCUSHION
-
509320-09039 CUSHIONCUSHION
-
609471-12188 BULB (12V,55W)BULB (12V,55W)
-
709136-05062 SCREW (5X15)SCREW (5X15)
-
894479-35F00 CLIP, HEAD LAMPCLIP, HEAD LAMP
-
944294-43H00 CUSHION, HEAD LAMP COVERCUSHION, HEAD LAMP COVER
-
1035950-14A11 REFLEX REFLECTOR ASSY, FRONT SIDEREFLEX REFLECTOR ASSY, FRONT SIDE
-
1109119-06109 BOLTBOLT
-
1209160-08043 WASHER (8.5X18X1)WASHER (8.5X18X1)
