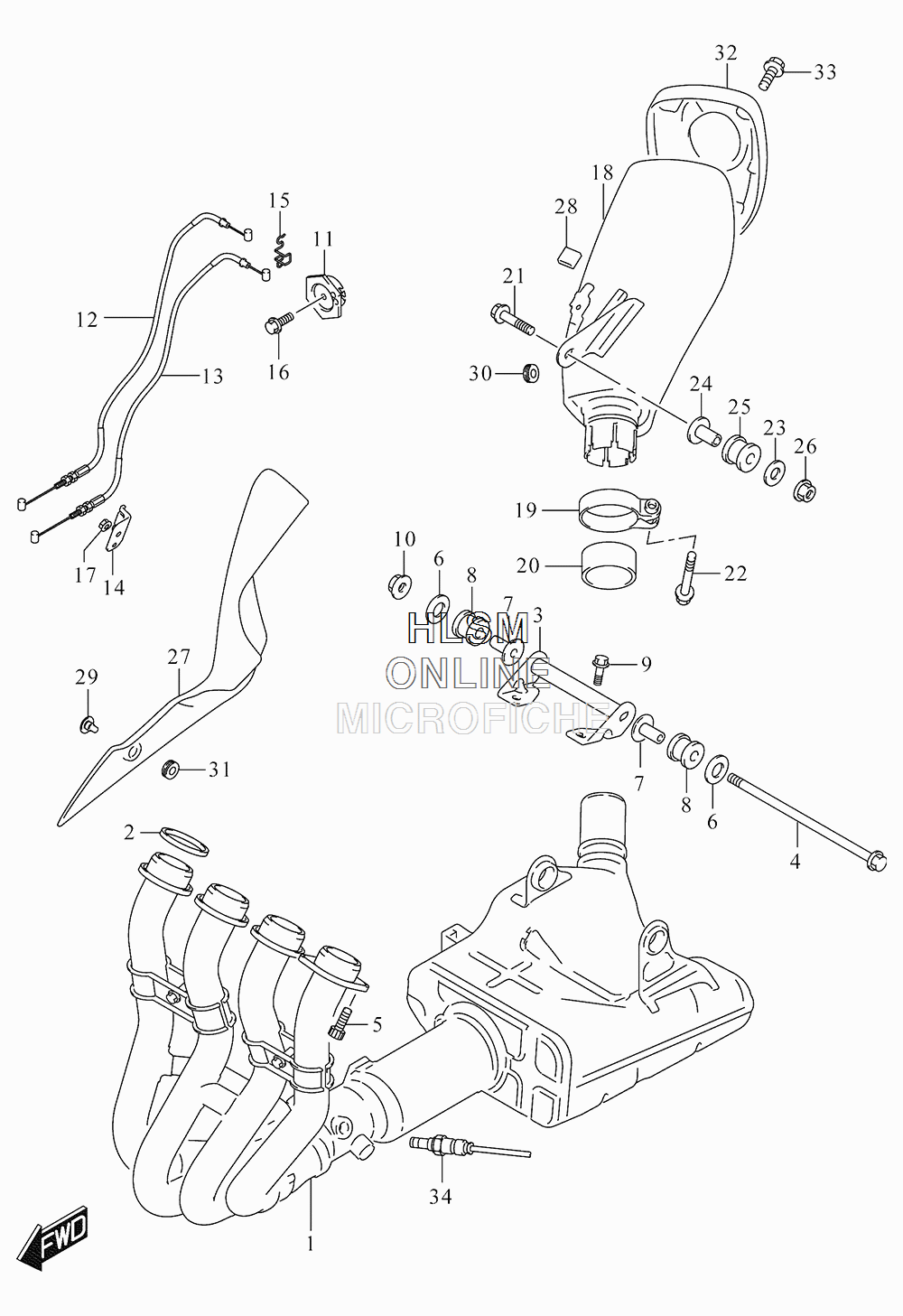

MUFFLER для Suzuki GSX-S1000F L6 - 2016 года выпуска
-
№АртикулНазвание
-
114100-04K10 EXHAUSTEXHAUST
-
214181-04K00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
314770-04K00 BRACKET, EXH SPRTBRACKET, EXH SPRT
-
409103-08464 BOLT (8X200)BOLT (8X200)
-
509106-08178 BOLT (8X25)BOLT (8X25)
-
609160-08503 WASHER (8.5X30X2.3)WASHER (8.5X30X2.3)
-
709180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
809320-12077 CUSHIONCUSHION
-
909135-08007 BOLTBOLT
-
1008316-1008A NUTNUT
-
1111269-18G01 PULLEY, CONTROLLERPULLEY, CONTROLLER
-
1211276-04K00 CABLE, EXH VALVE NO.1CABLE, EXH VALVE NO.1
-
1311277-04K00 CABLE, EXH VALVE NO.2CABLE, EXH VALVE NO.2
-
1414250-21H00 BRACKET, EXHAUST VALVE CABLEBRACKET, EXHAUST VALVE CABLE
-
1514252-14J00 GUIDE, EXHAUST VALVE CABLEGUIDE, EXHAUST VALVE CABLE
-
1601547-0516A BOLTBOLT
-
1708316-1006A NUTNUT
-
1814310-04K00-H01 BODY, MUFFLERBODY, MUFFLER
-
1914459-21H30 CLAMP, MUFFLER CONNECTORCLAMP, MUFFLER CONNECTOR
-
2014771-42F40 CONNECTOR, JTCONNECTOR, JT
-
2109106-08164 BOLT (8X45)BOLT (8X45)
-
2209106-08197 BOLT (8X35)BOLT (8X35)
-
2309160-08503 WASHER (8.5X30X2.3)WASHER (8.5X30X2.3)
-
2409180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
2509320-12048 CUSHIONCUSHION
-
2608316-1008A NUTNUT
-
2714780-04K00 COVER, MUFFLER FRONTCOVER, MUFFLER FRONT
-
2814795-10FA0 GROMMETGROMMET
-
2909139-06124 SCREW (6X12)SCREW (6X12)
-
3009320-04009 BUSHBUSH
-
3109320-08066 CUSHIONCUSHION
-
3214791-04K00 COVER, MUFFLER REARCOVER, MUFFLER REAR
-
3309106-06078 BOLT (6X15)BOLT (6X15)
-
3418213-04K00 SENSOR, OXYGENSENSOR, OXYGEN
