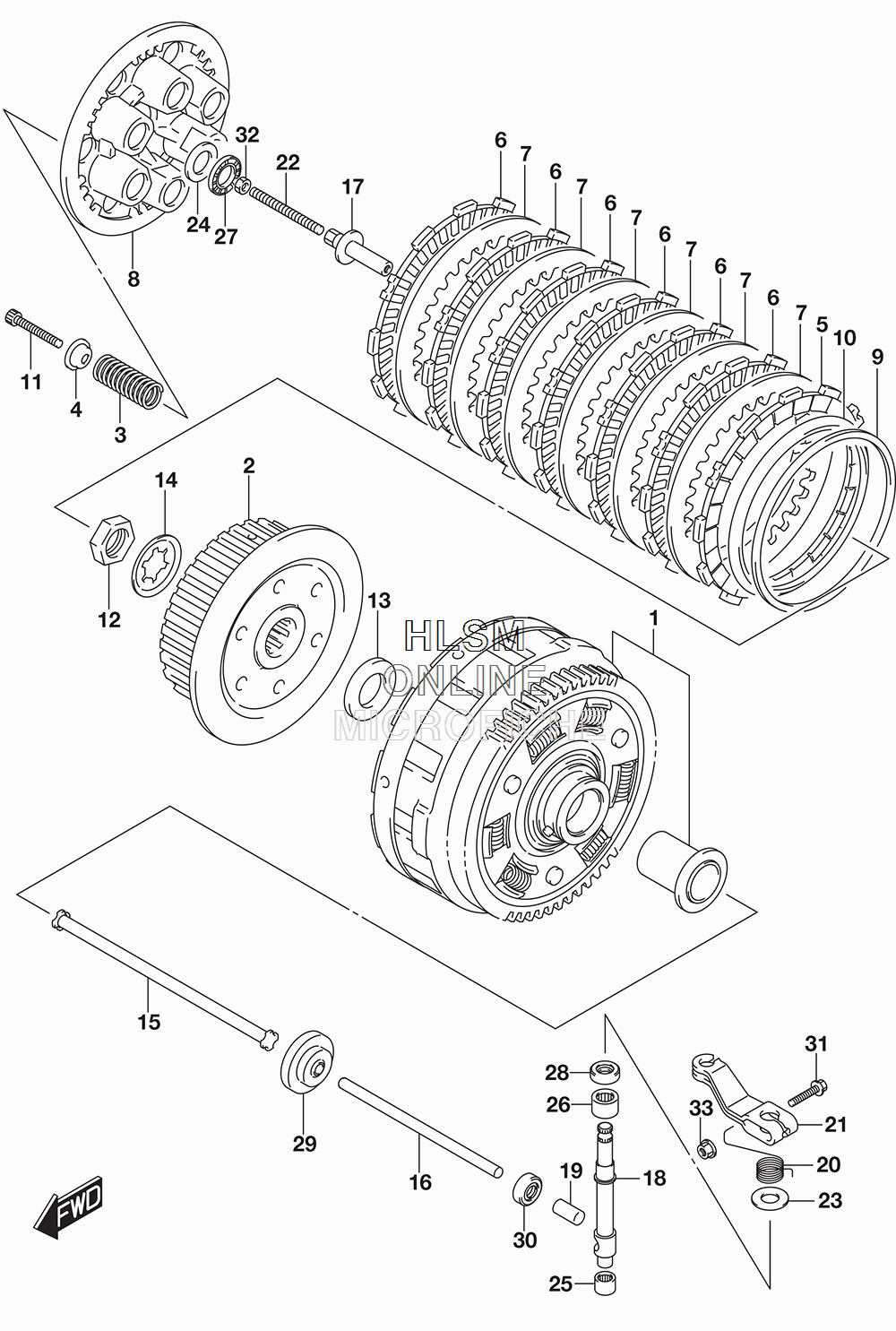

CLUTCH для Suzuki V-STORM 650XT [DL650XA] - 2017 года выпуска
-
№АртикулНазвание
-
121200-44860 GEAR ASSY, PRIMARY DRIVEN (NT:71)GEAR ASSY, PRIMARY DRIVEN (NT:71)
-
221411-44101 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
321413-17G10 SPRING, CLUTCHSPRING, CLUTCH
-
421414-29F00 WASHER, CLUTCH SPRINGWASHER, CLUTCH SPRING
-
521442-29F10 PLATE, CLUTCH DRIVE NO.2 (T:3.0)PLATE, CLUTCH DRIVE NO.2 (T:3.0)
-
621441-29F30 PLATE, CLUTCH DRIVE (T:3.0)PLATE, CLUTCH DRIVE (T:3.0)
-
721451-28C31 PLATE, CLUTCH DRIVEN (T:1.6)PLATE, CLUTCH DRIVEN (T:1.6)
-
821462-14301 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
921471-17G00 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1021472-17G00 WASHER, CLUTCH PLATE WAVEWASHER, CLUTCH PLATE WAVE
-
1121482-41G10 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
1209140-20001 NUTNUT
-
1309160-20067 WASHER (20X36X3)WASHER (20X36X3)
-
1409167-20006 LOCK WASHERLOCK WASHER
-
1523110-44111 ROD, CLUTCH PUSH RIGHT HANDROD, CLUTCH PUSH RIGHT HAND
-
1623111-15501 ROD, CLUTCH PUSH LEFT HANDROD, CLUTCH PUSH LEFT HAND
-
1723121-44H00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
1823122-44H00 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
1923123-41G00 CAP, CLUTCH PUSH RODCAP, CLUTCH PUSH ROD
-
2023125-11J00 SPRING, CLUTCH RELEASE RETURNSPRING, CLUTCH RELEASE RETURN
-
2123271-44H20 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2209134-06015 SCREW (6X73)SCREW (6X73)
-
2309160-10020 WASHER (10.5X24X1)WASHER (10.5X24X1)
-
2409160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
2509263-10014 BEARING (10X14X10)BEARING (10X14X10)
-
2609263-12027 BEARING (12X18X12)BEARING (12X18X12)
-
2709263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
2809282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
2909283-06008 OIL SEAL (6X34X10.5)OIL SEAL (6X34X10.5)
-
3009285-10004 OIL SEAL (10X17X5)OIL SEAL (10X17X5)
-
3101550-0625A BOLTBOLT
-
3208310-0006A NUTNUT
-
3308316-1006A NUTNUT
