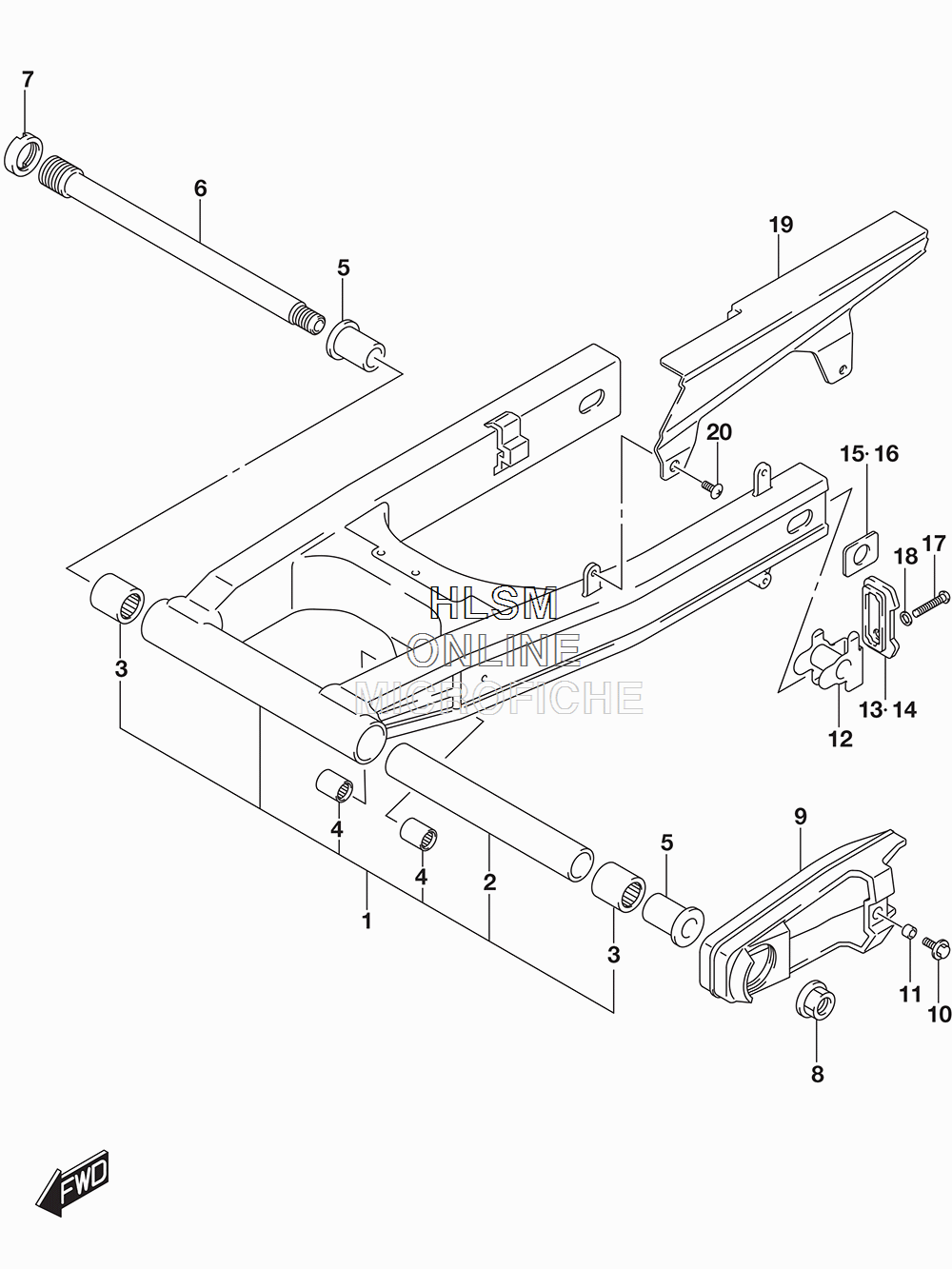

REAR SWINGARM для Suzuki V-STORM 650XT [DL650XA] - 2017 года выпуска
-
№АртикулНазвание
-
161000-27G30-YAP SWINGINGARM ASSY, REAR (BLACK)SWINGINGARM ASSY, REAR (BLACK)
-
209180-20118 ...SPACER (20.8X27.2X196.7)...SPACER (20.8X27.2X196.7)
-
309263-25059 ...BEARING (25X33X35)...BEARING (25X33X35)
-
409263-17037 ...BEARING (17X24X25)...BEARING (17X24X25)
-
561251-31E00 SPACER, SWINGINGARMSPACER, SWINGINGARM
-
661211-06G00 SHAFT, RR SWINGINGARM PIVOTSHAFT, RR SWINGINGARM PIVOT
-
761214-19F10 NUT, PIVOT SHAFTNUT, PIVOT SHAFT
-
808319-3118A NUTNUT
-
961273-27G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1009116-06111 BOLT (6X20)BOLT (6X20)
-
1109180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1261410-03F00 ADJUSTER, CHAINADJUSTER, CHAIN
-
1361421-33D01 PLATE, CHAIN ADJUSTER GUIDE RPLATE, CHAIN ADJUSTER GUIDE R
-
1461422-33D01 PLATE, CHAIN ADJUSTER GUIDE LPLATE, CHAIN ADJUSTER GUIDE L
-
1564712-03F01 WASHER, CHAIN ADJUSTER RIGHT HANDWASHER, CHAIN ADJUSTER RIGHT HAND
-
1664713-03F01 WASHER, CHAIN ADJUSTER LEFT HANDWASHER, CHAIN ADJUSTER LEFT HAND
-
1709106-08119 BOLT (8X50)BOLT (8X50)
-
1809164-08015 WASHERWASHER
-
1961310-16G00 CASE, CHAINCASE, CHAIN
-
2009139-06083 SCREW (6X16)SCREW (6X16)
